Lifting Electromagnet for Scrap Iron Excavator Lifting Magnet for Lifting Scrap

Product Description

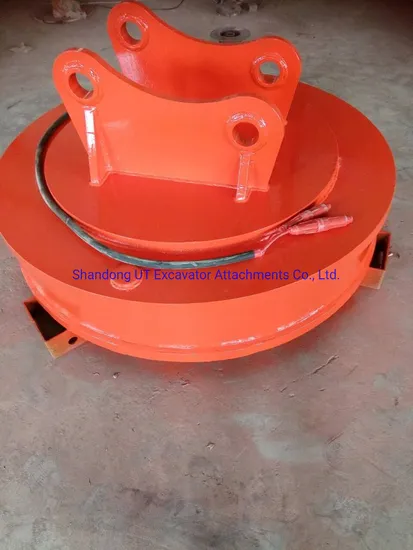

Excavator Lifting Electromagnet Features :
1.Strong adsorption, fast lifting and releasing, can finish work quickly and efficiently.
2.Equipped with lifting electromagment with fork arms, it can play a very good role in the loading and unloading of special and non-metallic wastes.
3.The special magnetic circuit design, the air gap magnetic density is very big. The coil is aluminum wire and the coil protection plate is made of high manganese steel plate with good wear resistance and strong impact resistance.
4.Light weight, low energy consumption, big lifting weight and long service life.
5.The insulation structure is reasonable. The insulation structure is vacuum drying and vacuum gadding which improves the electrical and mechanical properties of the coil. The heat-resistant grade of the insulating material can reach the special C level.
6.Adopting constant voltage control mode, if use strong excitation control, the lifting capacity can be further improved.
7.Simple structure, safe and reliable, suitable for all kinds of lifting equipments.
1.Electromagnet Sucker Parameters

Item/Model /	A	B	E	F	G	H	I	J	Weight
UT5-90L	900	900							807KG
UT5-110L	1100	1100							1380KG
UT5-130L	1300	1300							2060KG
UT5-150L	1500	1500							2830KG
Remark: 1.As for the size of B to H, it will be made corresponding adjustments according to user's Excavator's bucket size. 2.Specifications are subject to change without notice.

2.Lifting Electromagnet Parameters

Item/Hoisting Ability /	Hoisting Steel Billet	Ircon Casting (Neatly stacked)	Cutting chip (Pack)
UT5-90L	10000KG	600/400KG	250/200KG
UT5-110L	15000KG	1000/800KG	450/400KG
UT5-130L	18000KG	1400/1100KG	700/600KG
UT5-150L	24000KG	1900/1500KG	1100/900KG

The excavator is equipped with heavy electromagnet to suck hoisting steel billet, cast iron, cutting chip, these 3 kinds of curved steel capacity, normal temperature type, electricity continuous rate is TD-60%
3.Lifting Electromagnet Control Cabinet Parameters

Item/Model /	Input Voltage	Output Voltage	Rated Power	Weight
UT5-90L-7E	AC380V	DC220V	7KW	135KG
UT5-110L-9E	AC380V	DC220V	9KW	180KG
UT5-130L-14E	AC380V	DC220V	14KW	230KG
UT5-150L-19E	AC380V	DC220V	19KW	260KG
Shape Size :650X400X1200MM

1. This series of control cabinet is to obtain three phase AC power through single-phase (three phase) bridge rectifier unit to obtain DC 220V voltage.
2.The whole control cabinet consists of automatic air switch, rectifier unit, DC contactor and other main components.
3. Protection measures such as short circuit, overvoltage and so on.
4. It has the characteristics of simple structure, small size, light weight, reliable operation and convenient maintenance.
