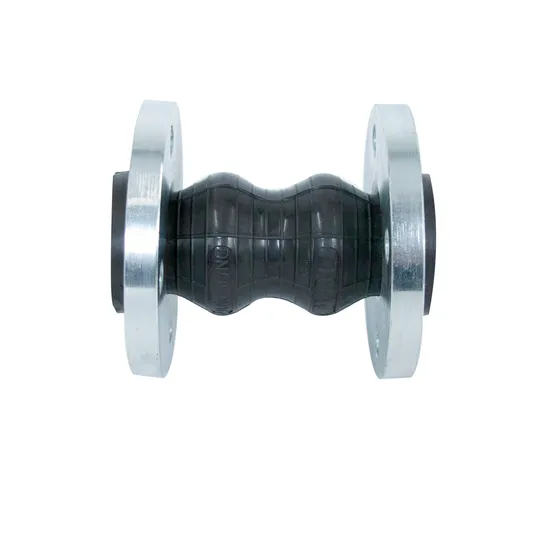

Acs Wras Double Sphere Flexible Rubber Expansion Joints Rubber Bellow

Product Description

Material list

No	Name	Material
1	Cover	NR,NBR,EPDM
2	Tube	NR,NBR,EPDM
3	Reinforcing	Nylon
4	Retain rings	Steel
5	Flange	Carbon steel

Technical condtions

Working Pressure MPa(Kgf/cm2)	1(10)	1.6(16)	2.5(25)
Explosion Pressure MPa(Kgf/cm2)	3 (30)	4.8 (48)	5.5 (55)
Vacuum MPa(Kgf/cm2)	53.3(400)	86.7(650)	100(750)
Applicable Temperature ºC	-15-115, it can be -30-250 for special condition.
Applicabe Medium	Air, compressed air, water,sea water, steam, oil, acid and alkali, etc.

Main joint dimension

Size	Inch	Length	Extension	Compression	Horizonal	Angular
DN32	1 1/4"	175	6	9	9	15°
DN40	1 1/2"	175	6	10	9	15°
DN50	2"	175	7	10	10	15°
DN65	2 1/2"	175	7	13	11	15°
DN80	3"	175	8	15	12	15°
DN100	4"	225	10	19	13	15°
DN125	5"	225	12	19	13	15°
DN150	6"	225	12	20	14	15°
DN200	8"	325	16	25	22	15°
DN250	10"	325	16	25	22	15°
DN300	12"	325	16	25	22	15°
DN350	14"	350	16	25	22	15°
DN400	16"	350	16	25	22	15°
DN450	18"	350	16	25	22	15°
DN500	20"	350	16	25	22	15°

Features
1. The flexible rubber expansion joint is of small volume, light weight, good flexibility and convenient installation and maintenance ;
2. The flexible rubber expansion joint has transverse displacement, axial displacement and angular displacement and not restricted by inconsistent pipeline and unparallel flange in installation;
3. The flexible rubber expansion joint reduces vibration and noise;
4. The flexible rubber expansion joint with seamless inside and resistance to high temperature which is developed by our company can prevent the corrosive medium from corroding the inner wall more efficiently in the pipeline of high temperature resistance, acid and alkali resistance and oil resistance.
Range of use
Based on the excellent overall performance, the flexible rubber expansion joint is widely used in chemical industry, construction, drainage, oil industry, light and heavy industry, refrigeration industry, sanitary system, plumbing system, firefighting, and power electrics, such as the connection with pump or valve and pipeline with vibration or large temperature changes.

Packaging & Shipping
Delivery Details: Within 10-15 days after receiving payment for flexible rubber expansion joint.
Packaging Details: carton cases for inner packing and wooden cases for outer packing or based on the customers´ requirements.

FAQ
Q: Can you make the product as the customers´ requirment?
A: Yes, we have our own R & D center and Machining ceter, and we can make it with your exact requirment.

Q: What is your payment terms?
A: T/T(30% as despot,the rest 70% will be paid before delivery) , L/C at sight.

Q: Can i visit your company before the order?
A:Yes, welcome to our company to check.
Q: Do you accepted small quantity order?
A: Of course we do.
Q: Can we choose different material?
A: Yes ,the material can be chose according to your requirement.
