Plastic Pyrolysis to Oil Refing Plant Continuous Feeding
| US$36,000.00-48,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XHLY-2800-6000
Screw
Multi-Screw
Automation
Special
Computerized
Non-Computerized
Certification
ISO9001:2008, CE
Machine
Plastic Pyrolysis to Oil Refing Plant
Weight
32000kgs
Power
18kw
Plant Size
2800*6000
Daily Capacity
10-12ton
Pyrolysis Way
Rotate Pyrolysis
Reactor Material
Q345 R
Input
Plastic
Output
Plastic Oil
Workig Area
500-800 M2
Transport Package
Reinforce Packing
Specification
CE, ISO
Trademark
XHZT
Origin
Shangqiu City, Henan, China
HS Code
84198900
Production Capacity
25sets/Month
Product Description
1.Brife introductionConvert plasticto oil
Environmental friendly
High oil rate
Easy to operate
2.Major Parts

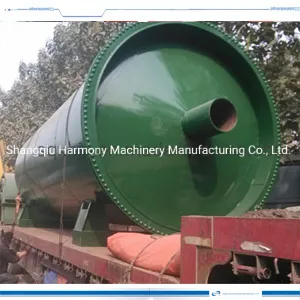

| Reactor | 1. Made of Q245R boiler steel. Also can choose Q345R 2. Auto-welding both inside and outside 3. With rock wool and first grade alumilum insulation board |
| Auto-feeder | 1. 60 ton hydraulic pressure 2. Can feed all types of materials 3. Save labor and time |
| Catalyst chamber | 1. improve oil yield and oil quality 2. Reduce the speed of oil gas so that it can be better cooled |
| Oil-water separator | 1. Separate oil and water 2. Collect heavy oil 3. Water sealing design keep safety |
| Condenser | 1. Include condenser pipe, horizontal condenser and waste gas condenser 2. The oil gas is cooled separately by small pipes inside condenser 3. Light oil is collected here |
| Vacuum device | 1.Keep machine running under normal pressure 2.Have founction of keeping safe |
| Anti-back fire device | 1. Recycle residual gas to furnace as fuel 2. Water sealing design prevent tempering |
| Dust removal device | Dispose of flue gas caused by using coal, wood, oil or natural gas. |
3.Final product and usage
| output | usage |
| crude oil(45%-55%) | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
| carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
| combustible gas(5%) | recycled to heat the reactor as fuel.save energy |
4.Work-flow:
5.Plastic Oil parameter
| Density | g/cm3 | 0.83-0.87 |
| Freezing Point | oC | 10 |
| flash point | oC | 40 |
| Kinematic viscosity | mPa.s | 8 |
| Combustion value | kJ/kg | 9500 |
6.Payment term and delivery
| Payment term | 30% TT deposit ,balance paid before plant loading ,or sight LC |
| Delivery | With 15days after getting advance payment |
| Warranty period | 2 years warranty period, life time maintenance |
| Installation | We send technician for guiding installation and training your workers for free. |
