Sugar Crystal Powder Pulverizer Machine with Double Crusher Motors

Sugar Crystal Powder Pulverizer Machine with Double Crusher Motors

US$2,700.00 1 sets (MOQ)

Basic Info.

Model NO.
BSZ
Type
Pin Mill
Processing Object
Splined Shaft
Abrasives
Whetstone
Controlling Mode
Artificial
Automatic Grade
Automatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Weight (Kg)
500 Kg
Output (Kg/H)
60 - 1000 Kg/H
After-Sales Service Provided
Online & Video Technical Support
Feature
High Speed
Warranty of Core Components
1 Year
Machinery Test Report
Provided
Showroom Location
None
Material
SUS304/316
Video Outgoing-Inspection
Provided
Transport Package
Wooden Case or Container
Trademark
Brightsail
Origin
Jiangsu, China
Production Capacity
20 Set/Sets Per Month

Packaging & Delivery

Package Size
100.00cm * 100.00cm * 100.00cm
Package Gross Weight
500.000kg

Product Description

Sugar Crystal Powder Pulverizer Machine with Double Crusher Motors

Product Description

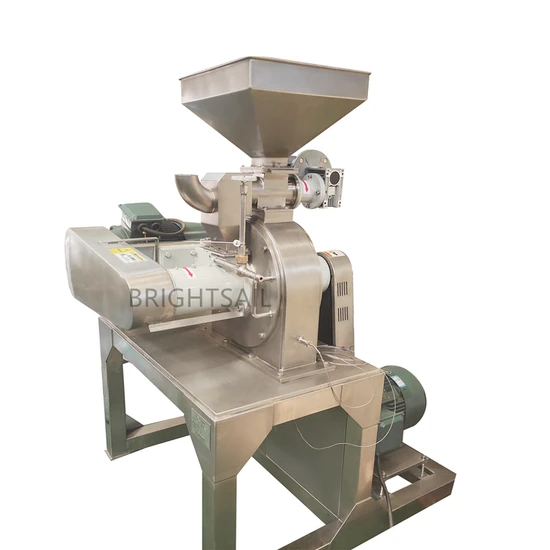

BSZ pin mill (single mill)
BSZ pin mill set with pulse dust collecting system
Our BSZ sugar pulverizer machine can be used in food, pharmaceutical, chemical and other industries, mainly for pulverizing. It is
suitable for milling materials with high fat, oil or sugar (like cocoa beans, coffee beans, carob pods,etc) into fine powder type. For common materials, such as spice, grains, crystal materials, etc, it's also suitable.
It can be used without pulse duct collecting system, just single mill. If you need no dust during the production, you
can choose pin mill set with the pulse system. When grinding materials with too much fat or sugar, like spices, cocoa cake, carob pods, it can be connected with cold air or liquid nitrogen. Except for making powder, BSZ sugar pulverizer machine also can directly grind cocoa beans into cocoa liquor. We have sold several pin mills to Ecuador, who uses them for making cocoa liquid before.
Technical datas:
Model
BSZ-350
BSZ-450
BSZ-550
Capacity(kg/h)
60~200
150~500
230~700
Input granule size (mm)
<15
<15
<15
Out powder size (mesh)
40~325
40~325
40~325
Cavity disc crush motor (KW)
11
18.5
22
door disc crush motor (KW)
15
22
30
Feed motor power (KW)
0.37
0.75
0.75
Blower (KW)
5.5
7.5
18.5
Rotary valve (KW)
0.75
0.55
0.75
disc rotating speed (rpm)
12000
9600
8400

Details Images




Crusher part:
BSZ sugar pulverizer machine has 2 grinding discs (cavity disc & door disc) which rotate against each other to achieve high speed rotating.






Liquid nitrogen inlet:
The BSZ sugar pulverizer machine could be connected with liquid nitrogen when grinding materials with high sugar or oil content.
Customized powder grinding solutions for our clients:
Features:
1) Simple structure, easy in installation and maintation.
2) It has two grind discs which rotate against each other to achieve high speed rotating.
3) No need screen in grind chamber, change powder size by changing speed.
4) It can grind material with high sugar% or high oil% with good effect, like cocoa, coffee, dry fruit...etc.
Applications
Packaging & Shipping
Export standard package. Fumigation wooden box or container.
For small machine, we pack it in wooden box.
For super big machine, we will separate the machine into several parts and pack it with film. Then, fix them in container with steel to avoid any shaking or moving during the shipping.
Our Service
Company Information
Brightsail spice & herb machinery Co.,Ltd focuses on one-stop overall solutions for spice&herb product processing.
The solution covers from cleaning machine,cutting machine,dryer, roaster, crusher, grinding mill,mixer,to filling and packing
machines...etc.
Till 2022 year, we have exported our machines to more than 75 countries around the world and have received a lot positive
feed-backs from our customers.
Besides, we also provide other solutions for food and chemical powder processing.
