GB 1.5 Promax 7+1 Charging and Swapping Station for E Truck

GB 1.5 Promax 7+1 Charging and Swapping Station for E Truck

US$420,000.00
1-4 Pieces
US$400,000.00
5+ Pieces

Basic Info.

Model NO.
Promax 7+1
Certification
ISO9001, GB
Condition
New
Operation Form
Swapping Battery Automatically
Maximum Lifting Height
<10m
Maximum Lifting Weight
<20t
Swapping Capacity
168 Times Per 24h
Charging Power
320kw Per Unit
Charging Power Customized
Can Be Customized
Size
Can Be Customized
Logo
Can Be Customized
Charger out Side
Optional
CCS2 Charger
Optional
Pure Station Weight
Around 28t
Other Solution
Can Be Customized
Power Supply
2500kVA Normally, Dependes on Charging Power
Monitoring Room
Optional
Pure Swapping Time
at Most 4 Minutes
Transport Package
Preinstallation Style Split up Pacakges
Specification
17m(L)*5.8m(W)*5.24m(H)
Trademark
Enneagon
Origin
China
HS Code
8428909090
Production Capacity
300 Units / Year

Product Description

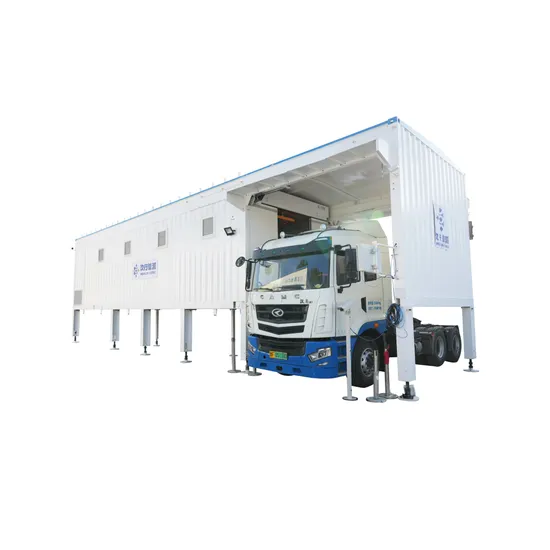

2024 New Type Swapping Station Promax for E-truck.
It can be used in 6 main use case as Thermal Power Plant ,Mining Place, Port, Transportation Line, Steel Mill, Urban Constraction,etc.
Normall can serve more than 60 units of E-truck depending on the working condition.
Easy to install.
Can be customized. The swapping station can be customized from 5+1 to 9+1 for different working condition.
And can be customized special type to match the customer requirements.
If you are interested in this product, you can contact us at any time.
We can customized for your special requirements.
Items Descriptions Remarks
Battery box system 282kwh / 350/kwh / 400kwh Compartibility with almost all brand OEM truck made in China
Charger 320KW can be customized to 360KW dependes on the battery capacity
Charger number 8 units
Dimension 17M*5.8M*5.28M Other scale can be customized
Power supply 2500KVA can be customized depende on the charger power
Swapping capacity 168 times per 24h
Station weight 28T Full load station need add the weight of 7 battery box, each battery box around 3T
Temperature -20ºC ~ 55 ºC
Seaworthy packing Yes Photos for references
Remote technical guidance Yes until 365 days after commissioning on-site.
On-site service Intall guidance
Commissioning
Training
Paid service according to the actual condition
Spare parts Will be recommended Need to buy according to the final design for maintenance and repair
