RBL Portable Reinforced Concrete Thickness Measuring Testing

Product Description

Product Description
Product Description

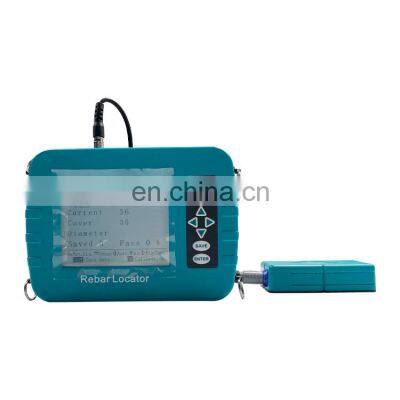

The rebar locator is a portable non-destructive testing instrument,which can used for the detection of the construction quality of reinforced concrete structures.it can measure the position of steel bars on the concrete surface and detect the thicknee of thickness of the protective layer of the steel bars and diameter of the steel bars

Product name			Reinforcement protection layer tester
Model			Lovely-RBL
Maximum Allowable Error of Second Range Protective Laye Thickness	±1mm	6~79mm
		±2mm	80~119mm
		±4mm	120~139mm
Applicable Scope of Diameter Estimation		±6mm	Φ6mm-Φ32mm
Maximum error of diameter indication			±1 Specifications
Section grid		Not support
Storage Quantity			2000 Components*1000 Measuring Points
Data transmission mode			USB,Wireless Cloud Transport(Options)
Power supply mode			lithium battery
Host parameters			Waterproof parameters:IP65
				Screen size:5 inches
				Resolving power:320*240
				Volume:195*140*45mm
				Weight:0.8kg
Power supply			Large capacity lithium battery for more than12 hours
Working environment requirements			Temperature:-10℃~+40℃
				Humidity:<90%RH

1.Upgraded wireless cloud transmission function
2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof3.Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content4.Built-in large capacity memory card, storage capacity upgrade5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work9.Professionaldata analysis software, so you’re your post- processing data and report generation work can be easily completed
Company Profile
CANGZHOU LOVELY GROUP CO., LTD. is located in Cangzhou City, Hebei Province, China. A leading manufacturer of Scaffolding & Formworks accessories, Ring-lock Shoring System, Testing Machine for construction projects, industrial engineering, roads and bridges etc.
Factory Workshop
Hot Sales
Certifications
Customer Photos
Packing and Shipping
FAQ
Q1:Are you a factory or trading company?A:We are a factory specializing in manufacturinf all kinds of tester.Q2:Where is the loading port?A:Qingdao port or tianjin port.
Q3:What’s the MOQ of the product?A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?A:We have ISO 9001.
Q5:Do you have an OEM service?A:Yes.We can provide OEM and ODM services as your requirements.
Q6:How long is the production cycle after ordering?A:General it is about 7-20 days.
Q7:What is the payment method?A:T/T payment is preferred and other payment terms is accepted.
