Heavy Duty Welding Cable Copper 25mm 35mm 50mm 70mm Red Black Epr Rubber Power Cable for Welding Machine Batteries

Product Description

Welding Cable H01N2-D These cables are used as a connection between the welding generator, the hand-electrode and the work piece. For use in the automobile industry, ship building, transport and conveyor systems, tool making machinery, welding robots etc. These cables retain their high flexibility even under influence of ozone, light, oxygen, protective gases, oil and petrol. Robust cable structure of these cables makes them resistant to low and high temperature, fire, ozone and radiation, oils, acids, fats and petrols. These cables are also ideal for outside installation in dry, moist and wet areas.
- Extra fine bare copper strands
- Strands to DIN VDE 0295, BS 6360, IEC 60228 and HD 383
- Strands to VDE-0295 as listed below
- Synthetic or paper separator over core
- Polychloroprene rubber (neoprene) jacket EM5Product Parameters

Model	H01N2-D Welding Cable
Conductor	Class 5 copper conductor for H01N2-D Welding CableClass 6 copper conductor for H01N2-E Welding Cable
No. of Cores	1
Conductor Type	stranded
Insulation	Rubber
Jacket(Sheath)	Rubber
Test Voltage	1.0 KV
Nominal cross-sectional area of conductor(mm²)	10~240(mm²)
Application	Electric connect cable wire
Colors	Black , Blue or Customized
Ambient temperature	-40ºC ~+90ºC
Max. Temperature at conductor	+120 ºC

AWG	Cross area mm2	Cable diameter mm	Cable weight kg/km
8	1*10	9.0	135
6	1*16	10.5	205
4	1*25	11.3	302
2	1*35	12.8	420
1	1*50	14.5	586
2/0	1*70	16.8	798
3/0	1*95	20.8	1015
4/0	1*120	22.3	1310
300MCM	1*150	24.6	1620
350MCM	1*185	25.9	1916
500MCM	1*240	27.3	2540

Detailed Photos

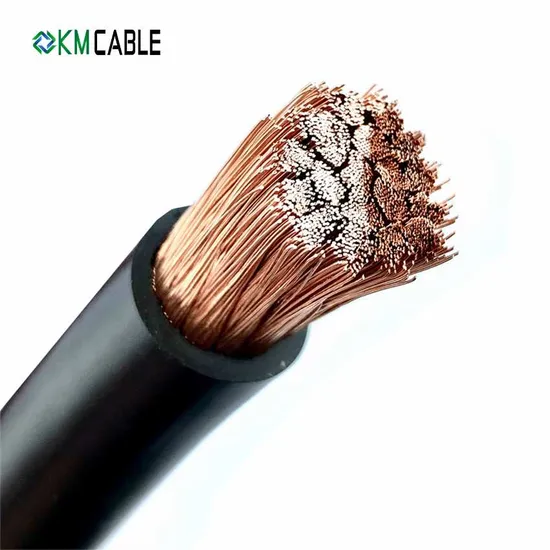

Welding Battery Cable stands out as a premium solution designed specifically for Welding, Solor System, Battery Connection applications, boasting exceptional performance and reliability. Its unique feature lies in the use of pure copper as a conductor, ensuring superior conductivity and flexibility for users.Pure copper
High Conductivity: Pure copper
conductors offer excellent electrical
conductivity,minimizing energy loss in
electrical systems.
Corrosion Resistance: Copper's corrosion
resistance ensures long-term stability
and reliability, making it a preferred
choice in various applications. High Flexible Cable
Designed specifically for welding machine, these high-voltage welding cables offer unparalleled flexibility, guaranteeing superior performance in various environments and applications for your welding machine.
Application
Company Profile
Certifications
Our ClientsPackaging & Shipping
FAQ
1. When can i get the price?
We usually quote within 6 hours after we get your inquiry. lf you are very urgent to get the price.please call us or tell us in your e- mail so that we will regard your inquiry priority.2. Are you a manufacturer or trading company?
We are a professional manufacturer with more than 30 years experience. We can control your order from the
first beginning to the last. Welcome to visit us, We'll pick you up in Beijing or Tianjin.
3. How does your company do regarding Quality Control ?
1) All raw material we selected the high quality one.
2) Professional & Skilful workers care every details in handling the producing.
3) Quality Control Department specially responsible for quality checking in each process.
4. What is the package of the cable ?
The package is usually wooden drum or steel wooden drum cr coil.also according to customer's
requirement.
5. What is the package of the cable ?
Yes, OEM/ODM is available.
