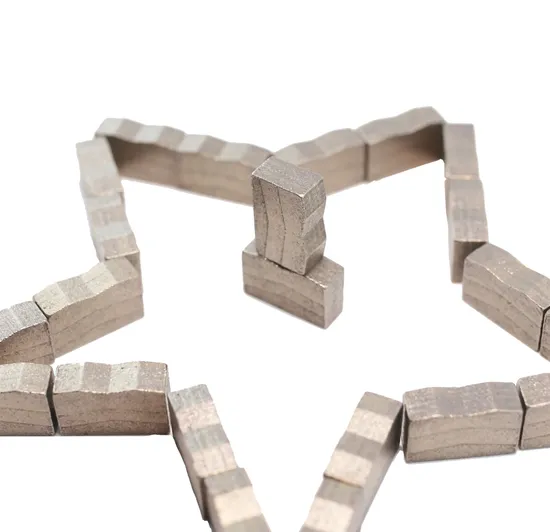

Diamond Multi Tool Blades Segment for Marble Cutting

Product Description

Product Description:
1.Size :suitable saw blade size from 300mm~3,500mm,size can be customized
2.Cost-effective and long lifespan
3.We guarantee our quality can be cutting all kinds of stone
4.For single and multi blade applications
5.We can produce according to your exact specifications and dimensions
6.Over 14 years professional manufacturing experiences
Advantage:
1.Dry & Wet cutting segment. welds easily.good sharpness. save the stone.
2.Stable Performance: in the outer and inner layers are carefully designed to ensure cutting stability.
3. Advanced production process for sintering
4.Strict product quality inspection processes
5.Compared with similar products to improve the efficiency of 3%
6. Excellent after-sales service
Product Description
1. Used for cutting 5.5mm Multi Segment Machine.Machine power:100-150HP.
2. Size:24*7*10 mm. 80pcs/box.
3. Working 25-30 Blades/machine.
4. All segment had been grind
5.one box weight is 1.6kg/box.
Our Cutters Different Other Brand
1. Open time :Not More Than 24 Hours. Usually 18 hour -20 hour open.
2. Production Data: 300-320 M2/Day. 16Hour/Day.
3.Segment Speed: 11-15M /Mins. Down depth: 0.7-1.1 M/MINS
4. Total Production: 20 days . 6000-6200 M2/machine.
5.Mix stone Cutting. :Cut Hard Medium And soft Marble.
6.Service of seaboard: Will send person to market when segment have problem
Specification:

Blade Size(Inch)	Blade Size(mm)	Segment Size(mm)	Quantity(pcs/set)
14	350	40X3.2X15/20	24
16	400	40X3.6X15/20	28
20	500	40X4.2X15	36
24	600	40X5X15/20	42
32	800	40X6X15/20	58
40	1000	24X5.8/6.4X15/20	70
48	1200	24X6.8/7.4X15/20	80
54	1350	24X7.6/8.0X15/20	88
56	1400	24X7.6/8.4X15/20	96
64	1600	24X8.4/9.0X15/20	108
72	1800	24X9.4/10.0X15/20	120
80	2000	24X10.2/10.6X15/20	128
88	2200	24X10.6/11X15/20	132
100	2500	24X11/11.4X15/20	140
120	3000	24X12/12.4X15/20	160
140	3500	24X12.6/13X15/20	180
