Metal Universal Testing Machine Extensometer Made in China Factory

Product Description

universal testing machine extensometer

Model	Gauge length mm	Stroke mm	relative error	Usage
No.1	500	5,10,25	Class 1	Strand tester
	250
	200
	100		Class 1	Use for general tensile testing machine
	(70)
	50
	25
	20
No.2	100		Class 1	Routinely recommended An average strain gauge is used
	50
	25
No.3	10	4	Class 1	Used in fracture mechanics experiments
	5	2
No.4	25	3	Class 1	Used to measure r values and radial variability
	20	3
	12.5	3
No.5	6	12	Class 1	Torsion extensometer
Digital extensometer.	≤500	5,10,25		For tensile testing
high low temperature extensometer.	≤500	5,10,25		For tensile testing

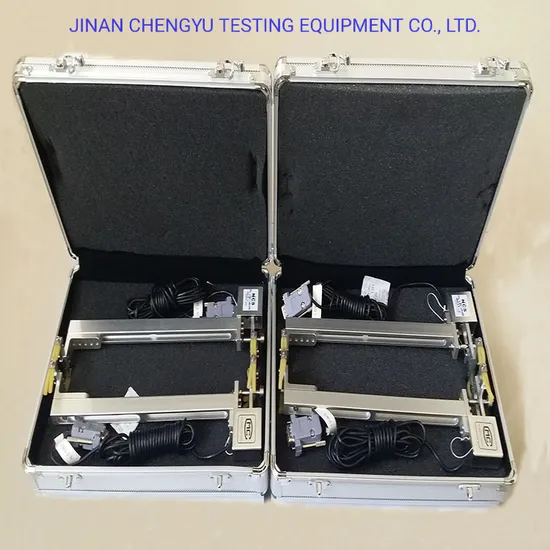

1.Product presentation
This YYU series of electronic extensometer are resistance strain extensometer, which are used to measure the line deformation between two points of a sample or a component under stress.When the extensometer is stretched, it causes deformation of the elastomer and changes the resistance value of the strain gauge pasted on it. The original balance bridge is out of balance and output a voltage signal which is proportional to the deformation, which is then amplified, converted and processed by the computer.

2.Technical parameter

Model	YYU-10/50
Gauge length	50mm
Max. stoke	10mm
Accuracy	Level 1
Strain gauge resistance	350Ω
Bridge voltage value	≤6V(AC or DC)
Output sensitivity	About 2mV/V

FAQ
1. Are you a manufacturer?
Yes, we are professional manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
