Automatic PLC Steam Heating Reacting Boiler Cosmetic Mixing Machine

Product Description

P AILUSI MACHINERY

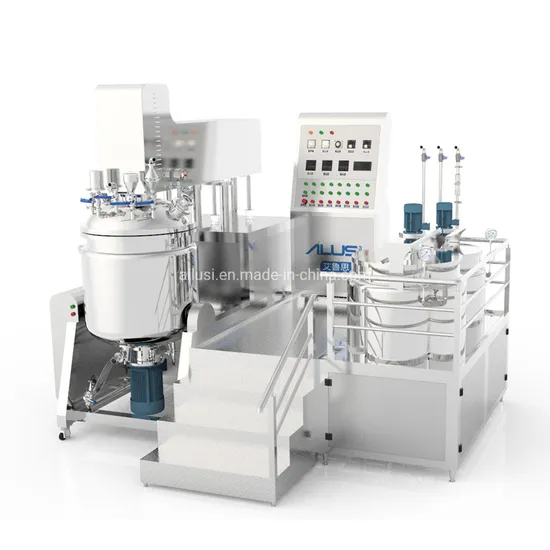

Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Hydraulic lifting vacuum emulsifier mixer The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceutical factory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments, toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries. Details pictures:FEATURES AT A GLANCEStandard configuration
Emulsifier, water phase tanks, oil phase tankThree-layer tank, steam or electric heatingVariable frequency speed scraper mixing3600rpm high-speed homogenizer, fineness 0.2-5um
Vacuum pumps and sync solenoid valves
Hydraulic lifting system
Stainless steel platform ans stairs
Button or HMI operation
Working PrincipleThe materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.PRODUCT SPECIFICATIONS

No	Model	AVE-500
1	Working capacity	500L
2	Heating method	Steam/electric
3	Mixing type	Upper frame oar scrape mixer
4	Mixing motor power	5.5KW
5	Mixing frequency	5.5KW
6	Mixing Speed	0-65rpm
7	Homogenizer	Bottom homogenizer with frequency inverter
8	Bottom Homogenizer power	11KW
9	Speed	0-3000rpm (50Hz)/0-3600rpm (60Hz)
10	Hydraulic lift system	Dual Hydraulic , power: 2.2KW
11	Vacuum pump	Water cycle vacuum pump, power: 2.2KW
12	Control method	Button control/ HMI
13	Frequency converter	Delta/Panasonic/Mitsubishi
14	Electrical components	Schneider/Delixi
15	Jacket	Double jacket,3 layers
16	Tank materials	Inner layer 6mm/SUS316 Middle layer 6mm/SUS304 Outer layer 4mm/SUS304
