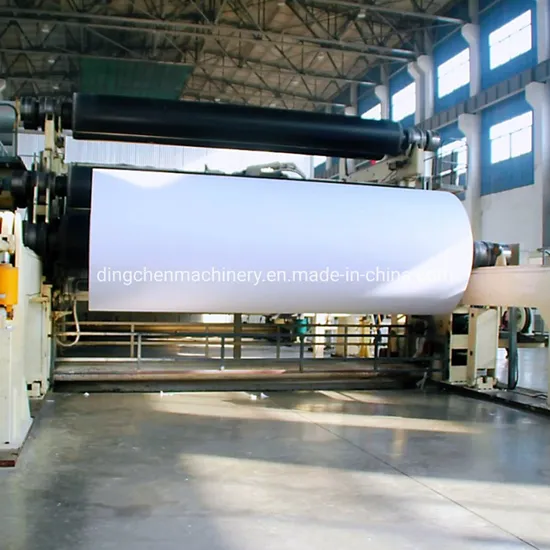

Waste Paper Recycling Plant High Speed Cultural Paper Making Machine

Product Description

Waste Paper Recycling Plant High Speed Cultural Paper Making Machine

Technical parameter:

1	Raw material	Waste paper, virgin pulp
2	Output paper	Cultural paper
3	Paper weight	42-120g/m2
4	Net paper width	2850mm
5	Fourdrinier wire width	3300mm
6	Capacity	50ton/day
7	Working speed	250-300m/min
8	Designing speed	350m/min
9	Rail gauge	3900mm
10	Drive way	Alternating current frequency conversion adjustable speed, sectional drive.

Note:
Financial Analysis can be provided if customers' need to compare with cost of different Raw Materials.

Tips

Different model has different specifications
If customer want to get a quotation as soon as possible, please provide the following information for us :
1.Output paper type;
2.Capacity(tons/24hours);
3.Output paper weight(gram/m2);
4.Raw material
Structure and specifications of main equipment:
1. Fourdrinier part: This part is consisted of open-type flow box, wire frame, forming board, dehydrated board, wet suction box, vacuum box, breast roll, vacuum couch roll, leading roll, pneumatic corrector, the constant tension net tighten device, white water disc, leading roll blade, breast roll blade, deckle squirt cut, wet broke processing unit. It adopts cantilever to change net. The surface of the cantilever is galvanized. The length of forming table is 20m.

2. Press part: 2 pcs of Φ1200×3300mm×3900mm natural marble roll, 2 pcs of Φ1100×3300mm×3900mm rubber roll, rubber shore hardness 95ºC±2, pneumatic pressure device.

3. Dryer part: 26 pcs of Φ1800×3300mm×3900mm alloy dryer can and their arrangement mode is 10 + 10+ sizing machine + 6.
4. There is the dry felt device and semi-closed dryer hoods.
