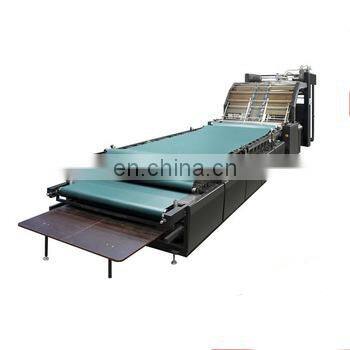

1450 Automatic Flute Laminator Machine, Automatic Cardboard Flute Laminator Machine

Product Description

Product Description
Automatic Flute Corrugated Board Paper Laminating MachineSpecifications Performace 1. electrical control part: integrated control with plc, inverter speed control, real-time monitor machine running, glue level, water level, laminated gap, precision, etc. realized perfect man-machine dialogue.2. top feeding part: compared with GFMC, this machine has the advantages of front feeding, higher feeding part, lengthened top feeding path, which increase the space for bottom sheet, reduce labor intensity, make easy operation. And also the side guide for top sheet can be moved electrically (optical)3.bottom sheet part: inverter speed control, big power air suction sys, make machine and also the sheet running stably during high speed, ensure feeding accuracy.4.glue part: it adopts manual and automatic glue supply system. During automatic state, the glue can be supplied automatically, and also the glue level can be real-time monitored, which avoid empty glue, reduced waste. Meanwhile, to save glue, anilox roller is used, which ensure the stability of lamination during different speed and glue density.5.pneumatic part: reduce labor intensity and work efficiency.6. cleaning part: immersion cleaning unit, which can real-time clean down roller effectively. 7.gap adjusting part: the roller position adopts digital display, improved our working efficiency highly. Technical parameter:ModelFM-1100FM-1300FM-1450Max sheet size(mm)1100*11001300*11001450*1100Min sheet size(mm)300*300350*450450*450Speed(m/min)0~900~900~90Voltage(v)380380380Frequency(Hz)505050Total power(kw)77.58Measurement(mm)7100*1550*12507100*1850*12507100*2000*1250Weight(ton)3.74.95.5 Working principle: The sheet first to be transmitted manually to front gauge positioning for orientation.Photo electricity switch starts up the vertical pump valve after receiving the signal andmakes the bottom sheet to be absorbed to the belt.Electromagnetic clutch makes the bottom sheet feed automatically from the feeder.The bottom sheet will be oriented at front positioning together with the sheet after itsgluing, then to open the positioning by the thrust which generated from the roller to thebottom sheet.The top sheet and bottom sheet will be conglutinated through the effect between laminationroller and press roller, then to be transmitted to the press part. Detail machine pics: Applications:Company InformationWe are located in Nanyang Industrial Zone of Wenzhou City, Zhejiang Province. We are professional manufacture for all kinds of post-press machines and paper packaging equipment. We have more than 10 years manufacturing experience.Exhibition Photos We will attend All In Print China Exhibition 2016 .10.18-22 ( Please through below contact information let me know you more fast.) Packaging & Shipping Certification Contact Us NowWelcome Your InquiryWe have exported to more than these country, where you could see from below picture.Email: exporter@newstar-machinecom
