0.6/1kv 1/2/3/4/5 Core Cu Al Conductor 4/6/10/25/35/70/120/150mm2 PVC Insulated Cable

Product Description

Product Description
0.6/1kV 1/2/3/4/5 Core Cu AL Conductor 4/6/10/25/35/70/120/150mm2 PVC Insulated Cable
Main ApplicationThese cables are used for electricity supply in low voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
StandardsGB/12706.1, IEC60502-1, NFC 32-321, HD 603 S1 , HD 626 S1,AS/NZS 5000.1 etc.
*Xinfeng Cable can also design and produce for special application requirement.
Product PropertiesThe product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV.
1 Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note:U0 :Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U :Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um :Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
2 Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
3 The ambient temperature for installation: ≥0ºC
4 Maximum conductor temperature in normal operation: ≤70ºC
5 Max operating temperature of con. When cable short-circuited(5s maximum duration): 160ºC
6 Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

General Type	VDE Type	Designation	Application
CU/PVC/PVC (AL/PVC/PVC)	NYY(NAYY)	Cu conductor(Al conductor)PVC insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/PVC/PE (AL/PVC/PE)	NY2Y(NAY2Y)	Cu conductor(Al conductor)PVC insulated PE sheathed power cable
CU/PVC/STA/PVC (AL/PVC/STA/PVC)	NYBY(NAYBY)	Cu conductor(Al conductor)PVC insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/PVC/STA/PE (AL/PVC/STA/PE)	NYB2Y(NAYB2Y)	Cu conductor(Al conductor)PVC insulated double of steel-tape armored PE sheathed power cable
CU/PVC/ATA/PVC (AL/PVC/ATA/PVC)	NYBY(NAYBY)	Cu conductor(Al conductor)PVC insulated double of aluminium-tape armored PVC sheathed power cable
CU/PVC/ATA/PE (AL/PVC/ATA/PE)	NYB2Y(NAYB2Y)	Cu conductor(Al conductor)PVC insulated double of aluminium-tape armored PE sheathed power cable
CU/PVC/SWA/PVC (AL/PVC/SWA/PVC)	NYRY(NAYRY)	Cu conductor(Al conductor)PVC insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
CU/PVC/SWA/PE (AL/PVC/SWA/PE)	NYR2Y(NAYR2Y)	Cu conductor(Al conductor)PVC insulated steel-wire armored PE sheathed power cable
CU/PVC/AWA/PVC (AL/PVC/AWA/PVC)	NYRY(NAYRY)	Cu conductor(Al conductor)PVC insulated aluminium-wire armored PVC sheathed power cable
CU/PVC/AWA/PE (AL/PVC/AWA/PE)	NYR2Y(NAYR2Y)	Cu conductor(Al conductor)PVC insulated aluminium-wire armored PE sheathed power cable

Range of production
No.of cores : 1 , 2 , 3 , 4 , 5 , 2+E , 3+E , 4+E ;
Nominal cross-section (mm2): 0.5 ~ 800 ;
Construction
Conductor shaped: RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
Conductor: Plain circular, solid,compacted or shaped stranded copper or aluminium conductor ,conform to IEC60228 CLass 1 or Class 2
Insulation: PVC Compound Insulation
Color identification:
1 Core: Red or Black
2 Cores: Red, Black
3 Cores: Red, Yellow, Blue
4 Cores: Red, Yellow, Blue, Black
5 Cores: Red, Yellow, Blue, Black, Green
Above 5 Cores: Black Cores with White numerals
The above identifying can be changed as order
Bedding /Inner Sheath :PVC or PE Compound
Armour: Aluminium wire(AWA) or aluminium alloy wire(AWA), Galvanized steel wire(SWA) or steel tape(STA) ect.
Outer Sheath:PVC or PE Compound

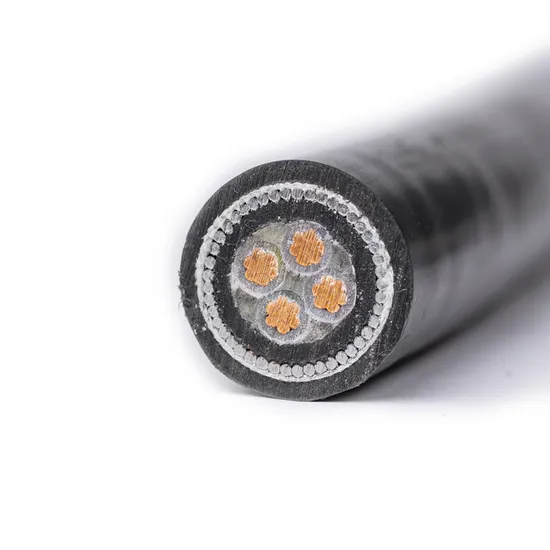

Four-core, CU or AL conductor, PVC insulated, Aluminium Wire Armored, PVC sheathed Power Cable, 0.6/1kV to IEC 60502-1
This table is only an example, please contact us for more technical specifications.

Type	Nominal section area mm2	Conductor diameter mm	Nominal thickness of insulation mm	Thickness of Steel Tape mm	Nominal sheath thickness mm	Approx. overall diameter mm	Approx.weight of cable kg/km		Maximum DC resistance of the conductor Ω/km
							Cu	Al	20ºC Cu	20ºC Al
VV32 VLV32	4×1.5 RE 4×2.5 RE 4×4 RE 4×6 RE 4×10 CC	1.38 1.78 2.24 2.76 3.8	0.8 0.8 1.0 1.0 1.0	0.2 0.2 0.2 0.2 0.2	1.8 1.8 1.8 1.8 1.8	13.2 14.2 16.3 17.5 20.0	291.1 351.9 469.0 586.9 798.9	- 289.7 369.5 437.7 550.2	12.1 7.41 4.61 3.08 1.83	- 12.1 7.41 4.61 3.08
	4×16 CC 4×25 CC 4×35 CC 4×50 SM 4×70 SM	4.8 6.0 7.0 8.0 9.5	1.0 1.2 1.2 1.4 1.4	0.2 0.2 0.2 0.2 0.5	1.8 1.8 1.9 2.0 2.2	22.4 26.3 28.8 30.0 34.8	1079.7 1549.9 1985.4 2604.6 3778.7	681.8 928.1 1114.9 1361.0 2037.7	1.15 0.727 0.524 0.387 0.268	1.91 1.20 0.868 0.641 0.443
	4×95 SM 4×120 SM 4×150 SM 4×185 SM 4×240 SM	11.0 12.4 13.8 15.4 17.5	1.6 1.6 1.8 2.0 2.2	0.5 0.5 0.5 0.5 0.5	2.4 2.5 2.6 2.8 3.0	39.1 41.8 46.9 52.5 57.5	4920.9 5956.6 7418.1 9021.2 11374.5	2558.1 2972.0 3687.3 4419.9 5405.2	0.193 0.153 0.124 0.0991 0.0754	0.320 0.253 0.206 0.164 0.125
	4×300 SM	19.6	2.4	0.5	3.2	63.2	13951.3	6489.8	0.0601	0.100
