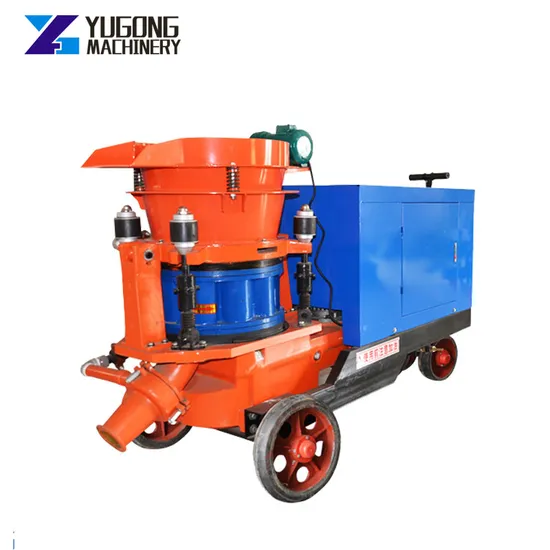

Wet&Dry Mix Rotor Concrete Construction Machinery Shotcrete Machine

Product Description

Wet&Dry Mix Rotor Concrete Construction Machinery Shotcrete Machine
Technical Parameters of Concrete Shotcrete Machine

Type	HSP-5
Output	4-5m³/h
Max. Convey Distance	Horizontal:30m; Vertical: 20m
Max. Aggregate Size	Ø 15mm
Hose Inner Size	Ø 51mm
Operating Pressure	0.3~0.6MPa
Air Consumption	10-15m³/min
Rotor Diameter	Ø 438mm
Average Rebound Rate	≤10%
Liquid Accelerator Additive Amount	0.3-0.7%
Motor Power	Y132m-6-5.5KW
Voltage	380V or as Your Request
Accelerator metering pump	Air Motor
Dimension	1800*800*1280mm
Net Weight	700kg
Wheel	Nylon Wheel / Rubber Wheel / Skid Wheel / Rail wheel

Advantages of Concrete Shotcrete Machine
Professional production team, production line, experienced technical experts who engaged in this industry for more than 10 years.
We have the professional production line for the main wearing parts about shotcrete machine:
1.Delivery Rubber Hose: More durable than normal kind rubber pipe, weaved by the quality steel wire, high resist compression ability, high wear resistance.
2.Rubber Sealing Plate: Adopt nature rubber, working time can meet 400m3.For the normal kind can only meet 130m3.
3.Rotor Disk: Casting by quality carbide tools, The working time is 3-5 times than normal kinds, and can meet 600-800m3,it's prefect for the rotor type shotcrete machine.
Application of Concrete Shotcrete Machine
Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excavation engineering etc. It has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long service life etc.
What Can We Do for You About Concrete Shotcrete Machine
1. We can change the color according to your actual requirements.
2. Customize the voltage motor based on your country standard.
3. Choose different wheels according to your needs.
Details of Concrete Shotcrete Machine

Spare Parts of Concrete Shotcrete Machine
Model of Concrete Shotcrete Machine
Angel Diaplay of Concrete Shotcrete Machine
Case of Concrete Shotcrete Machine
Anti-explosion shotcrete machine be widely used for:All kinds of metal mines, coal mines, high methanes and other flammable and explosive environments.
Shotcrete machine are mainly used for railway and highway, subterranean basement walls, Seismic reinforcing/ retrofitting of buildings, channels, shear Walls, retaining Walls, bridge retrofits, architectural concrete, mining, tunnel, culvert, subway, hydropower engineering(such as tunnels,dams and pools) and underground excvation engineering etc.
It has many obvious advantages such as simple structure, easy to operate and convenient after sales service and very long serviceable life etc.
Packaging of Concrete Shotcrete Machine
Feedback of Concrete Shotcrete Machine
