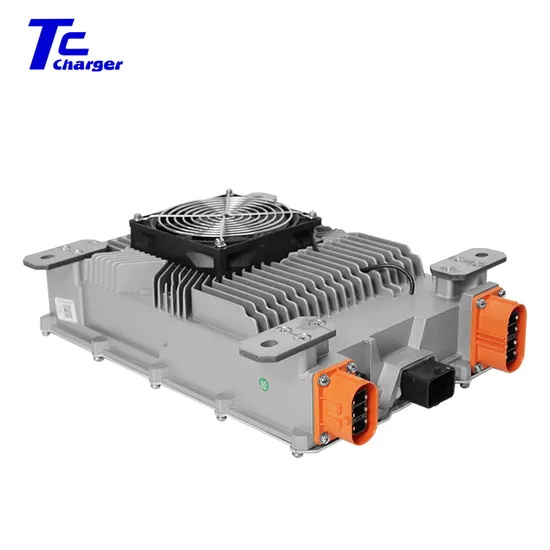

Elcon Tc CD-Lfk02 Car Battery on Board Charger for Electric Forklift
Basic Info.
Model NO.
CD-LFK02
Usage
Electric Vehicle
Interface
Other
Color
Silver
Input Voltage
AC90V~264V
Product Name
2 in 1 Obc+DC
Charger/DC Power
6.6kw+2kw
VAC-DC Output Votage (V)
312V
Output Voltage Range
200~450V
VAC-DC Output Current(a)
20
VAC-DC/DC-DC Model
HK-Lf-450-20/Tdc-K-320-12
DC Input Votage(V)
320V
DC Input Current(a)
6.6
Max Input Current(a)
12
DC-DC Output Votage (V)
14
DC-DC Output Current(a)
143A
Baud Rates
250K or 500K
Transport Package
Carton
Specification
6.6KW+2KWCD-M Series (OBC+DC/DC)
Trademark
TC charger
Origin
China
Production Capacity
1000PCS/Month
Product Description
Product Description| Basic Specification | Protection grade | IP67 | |
| Input voltage range | AC90V~264V | Operation temperature | - 40ºC~85ºC |
| Input current | 32A | Storage temperature | - 55ºC~85ºC |
| Frequency | 45Hz~65Hz | Charging control | CAN or Enable |
| Power factor | ≥0.99 | Size | 250(length) x 222(width) x 66.7(height)(fan-cooled) |
| Efficiency at full-loading | ≥93% | Protection | Output over-voltage, over-current, short-circuit, polarity reverse, input low-voltage, input over-voltage, over-temperature |
| Mechanical impact and vibration grade | QC/T 895-2011 | Cooling way | Enforce Air Cooling, liquid-cooling |
Accessories Product Paramenters
| Model | Output voltage | VAC-DC model | Power | VAC-DC output votage (V) | Output voltage range | VAC-DC output current(A) | DC-DC model | DC-DC power |
| CD-LFK01 | 144V | HK-LF-202-46 | 6.6KW | 144 | 95~202V | 46 | TDC-K-144-12 | 2KW |
| CD-LFK02 | 312V | HK-LF-450-20 | 6.6KW | 312 | 200~450V | 20 | TDC-K-320-12 | 2KW |
| Model | Type of cooling | DC input votage(V) | DC input current(A) | Max input current(A) | DC-DC output votage (V) | DC-DC output current(A) | Net Weight (kgs) | Gross Weight (kgs) | Dimension (CM) |
| CD-LFK01 | Enforce Air Cooling | 320V | 6.6 | 12 | 14 | 143A | 8.8 | 9.8 | 46.5*36*20.5 |
| CD-LFK02 | Enforce Air Cooling | 320V | 6.6 | 12 | 14 | 143A | 8.8 | 9.8 | 46.5*36*20.5 |
