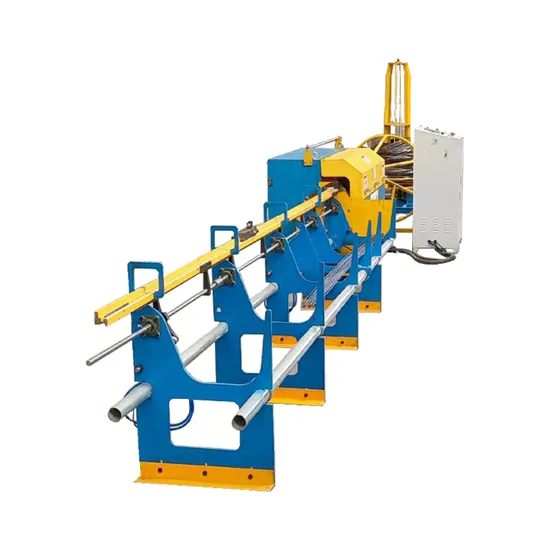

Straightener & Cutter Best Price Wire Straightening and Cutting Machine (factory! !)

Product Description

Product Description
2.0-4.0mm Wire Straightening and Cutting Machine 3.0-8.0mm Wire Straightening and Cutting Machine 6.0-12.0mm Wire Straightening and Cutting Machine
Detailed Photos
Wire Pay-off
√ One vertical reel frame;
√ The maximum lifting capacity is 1000 kg;
√ Automatic braking system (pneumatic).
Wire Feeding Device
√ Two independent entrance traction devices.
√ Each unit consists of two rollers designed to move the rotate the node;
√ The rollers are equipped with two rails whose outline depends on shape and size
Processing line;
√ The pressure of the upper roller is adjusted by the pneumatic clamps;
√ The solid material guide roller is located on the left side of the first roller;
√ The feeding device aligns the steel wire to the desired shape horizontal direction.
Straightening Roller
√ The most important part of the machine.
√ There are five pairs of moulds in the shell. This machine usually has two types of moulds.
√ Used for processing smallest and largest diameter steel wires(can be chosen according to the customer requirements)

Discharge Table
√ The cutting control (length measurement) device is installed in the frame,ensure cutting length more accurate;
√ The length can be adjusted manually from 800 mm to 12000 mm.

Funnel
√ The device protect steel wire and advoid the steel wires hurt the operator

Product Parameters

Steel Wire Straightening and Cutting Machine
Item	HSM 2-4	HSM 3-6	HSM 3-8	HSM 6-12
Steel Wire Diameter	2.0-4.0mm	3-6mm	3.0-8.0mm	6-12mm
Cutting Length	0.2-3.0m	0.3-6m	0.8-12.0m	0.8-12m
Speed	90-110m/min	90-110m/min	110-130m/min	110-130m/min
Total Motor	11.1KW	9.0KW	14.0KW	37.5KW

Certifications
Company Profile
Anping Wanzhong Wire Mesh Products Company entered the wire mesh industry in 2006, specializing in the manufacturing of various types of Fence Mesh Welding Machines, Reinforced Mesh Welding Machines, Automatic Construction Mesh Welding Machines, Breeding Mesh Welding Machines, Chain Link Fence Machines,Cattle Fence Machine, Nail Making Machines, Wire Drawing Machines, Barbed Wire Machines, Razor Barbed Wire Machines,Wire Straightening and Cutting Machine,etc.Wanzhong Company has its own professional R&D team,customized design and production can be carried out according to the special requirements of customers,and has already won fifteen national patents until January 31,2022. It has successfully passed ISO9001-2008,CE certification and SGS certification,and it is recognized as a national high-tech enterprise by our government,and our company credit rating is "AAA".Our machines have already exported to more than 40 countries, including USA,Russia,Algeria,Malaysia,the United Arab Emirates, Kuwait, Yemen, Oman, India, Uzbekistan, Kazakhstan, Iraq, Mexico, Tunisia, Kenya, Tanzania and Egypt.Wanzhong Company has its own professional and experienced after-sales service team, 365 days 24 hours to provide you with the most professional and intimate installation, guidance and maintenance services.
Our Advantages
√ Working speed is fast,up to 130m/min;
√ PLC and touch screen control;
√ use the potentiometer to change the feed speed and rotation speed smoothly without interrupting the working cycle;
√ finding program for fault or problem detection.
After Sales Service
Special technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume visa,round-trip tickets,eating,accommodation costs and ensure they the personal health and property safety, and pay 120 salaries per day. Guarantee: Two years. Within two years after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Equipment Program part life-long maintenance
