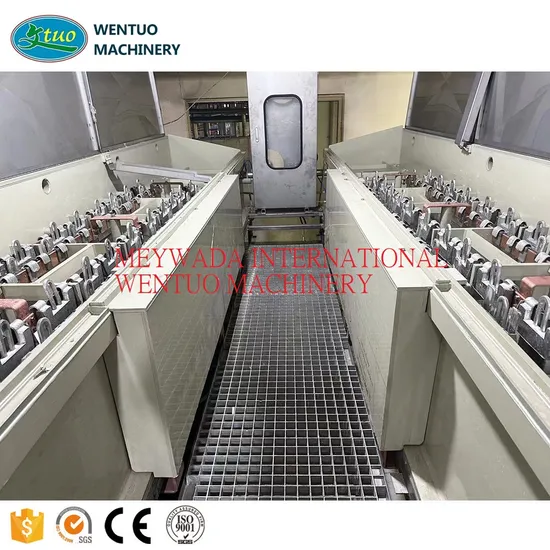

Copper Wire Tin Plating Machine
| US$247,900.00-310,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
WT-400-10000A
Coating
Plating
Substrate
Copper
Certification
CE
Condition
New
Speed
900m/Min
Transport Package
Woodpallet
Specification
27*2.0*2.1Meter
Trademark
WENTUO
Origin
China
HS Code
85433000
Product Description
Copper Wire Tin Plating Machine| 1 | Copper Wire size | 1.2mm~2.60mm; (0.10~0.40mm)*16Wire Twisted; |
| 2 | Plating Layer Thickness | 0 ~ 25Mirco (Tin) |
| 3 | Speed | Max. 900m/min |
| 4 | Machine Structure | Horizontal Plating roller Design |
| 5 | Ultrasonic Cleaning | 1KW Ultrasonic Device; |
| Alkali Cleaning Roller | Diameter 400mm | |
| Plating Roller | Diameter 400mm | |
| 6 | Anode Pole | Titanium Mesh |
| 7 | Cathode Pole | Copper Busbar with Carbon Brush |
| 8 | Rectifier | 2set5000A10V for Electrolytic Tin Plating; 500A8V for Electrolytic Alkali Cleaning; 1KW Ultrasonic Device for Cleaning; |
| 9 | Motor Driving | Plating Machine: 2set 7.5KW AC Motor; Pay-off & Spooler or Coiler: 18.5KW |
| 12 | Processing | Wire Pay-off → Ultrasonic Cleaning → Alkali Cleaning & Rinse →Electro Plating & Rinse → Hot Water → Wire Drying → Wire Take-up Machine |
