laboratory mini spinning system color wool fiber gilling machine

Product Description

Product Description
Product Description

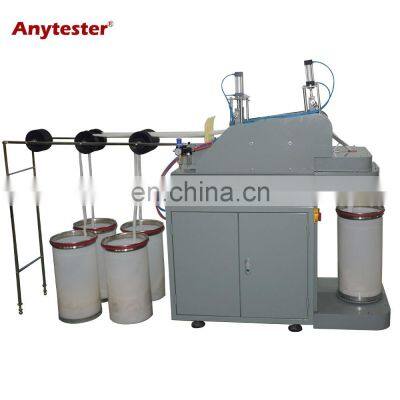

AT204M Laboratory Gilling Machine is one of the most important equipment of long fiber processing system (such as worsted spinning system). In the long fiber spinning system, as the roller carding machine output sliver fiber straight parallelness and evenness does not meet the requirements of spinning, and some fiber still exist "Hook", can’t be directly spinning. Especially in the worsted spinning system, if directly use such sliver on combing machine, easy to cause fiber damage, comb needle damage and the production rate reduce. In order to improve the combing process, the gilling machine is frequently used in the former spinning process. Generally, 2 to 3 gilling box are used before the combing, so that the fiber can be parallel to the straight. After combing, 2-4 gilling box are used, it’s for improve the uniformity of the sliver. The main task of the needle comb process (gilling machine) is to improve the uniformity of the middle and long fiber in the sliver by the combination of multiple roots and drafts. Moreover, it is used to furtherly improve the parallelness and the degree of separation of the fibers by needle comb and to eliminate the hooks and curl in the same time. It repeated merging and drawing, so that fiber mixing evenly, and stabilize the yarn quality; to remove some small impurities and short hair.
Features
1. Large touch screen display and PLC control;2. High-efficiency invertors and motors independently control feeding roll, needle plate box, output roll and coiling device.
1.Doubling up to 8 slivers
1.Pneumatic feeding roll and output roll.2.Mini-type machine, save researching cost and easy to operate and maintain.
1.One needle gilling box.2.Special coiling device, hard to be blocked.
3.High-efficiency invertors and motors independently control feeding roll, needle plate box, output roll and coiling device.
Specification

Model		AT204M	AT204M
Fiber type		Wool	Wool
Control mode		Touch screen & PLC	Touch screen & PLC
Number of needle gilling box		1	1
Draw ratio of gilling box		2-5	2-5
Draw ratio of color sliver		1-8	1-8
Fiber length		80-120mm	80-120mm
Motor power for feeding roll		90W	90W
Motor power for needle plate		750W	750W
Motor power for output roll		90W	90W
Motor power for coiling device		90W	90W
Output speed		6~30m/min	6~30m/min
Can size		Φ250×550mm	Φ250×550mm
Power		AC220V 50Hz, single-phase, 1500W	AC220V 50Hz, single-phase, 1500W
Dimension		1300mm×800mm×1750mm (L×W×H)	1300mm×800mm×1750mm (L×W×H)
Weight		500Kg	500Kg

Packing & Delivery

Packaging
Size(cm)	73 (L) * 72 (W) * 168.5 (D)
Weight	260 Kg
Packaging Details	1. The equipment is covered with film is protect it from water vapour during the trip.  2. The box is filled with foam to protect the equipment from impact.  3. Exported wooden box made from plywood, don't need fumigated.
