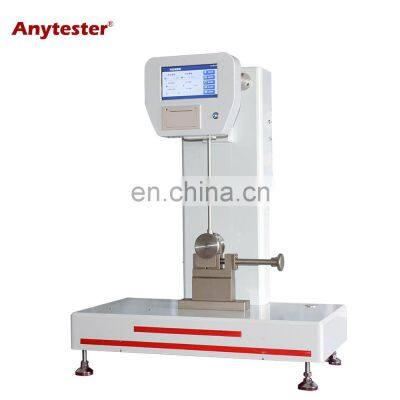

Digital Izod Impact Testing Machine for PE, PP, PVC, ABS, PS

Digital Izod Impact Testing Machine for PE, PP, PVC, ABS, PS

Product Description

Product Description
Product Description
Product Application
HY4252D Series Digital Izod Impact Tester is used to determine the impact toughness of non-metallic material such as rigid plastics, reinforced nylon, glass reinforced plastics, ceramics, cast stone, electrical insulating material, etc.
SPECIFICATIONS FOR HY4252D DIGITAL IZOD IMPACT TESTER
Model
HY4252DA
HY4252DB
Impact velocity
3.5m/s
Impact energy
2.75J, 5.5J
11J, 22J
Impact center distance
335mm
Pendulum angle
150°
Distance between striking edge and top surface of jaw
22.0mm±0.2mm
Corner radius of striking edge
R=0.8mm±0.2mm
Power supply
AC220V, 50Hz
Dimensions
700×350×850mm
Weight
120kg

Details & Features
Touch Screen Control
> Large LCD display
> Touch screen control make the operate simple
> Modularization design make after sale service easy
Modularization Design
> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC
High Quality Material
> Building in mini printer
> Reserved port for Stylus printer
> Historical date can be printed
High quality material
> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Certifications
Packing & Delivery
Packaging
Size
85 (L) * 51 (W) * 94 (D)
Weight
10Kg

Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.

Payment

Payment Term

T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
