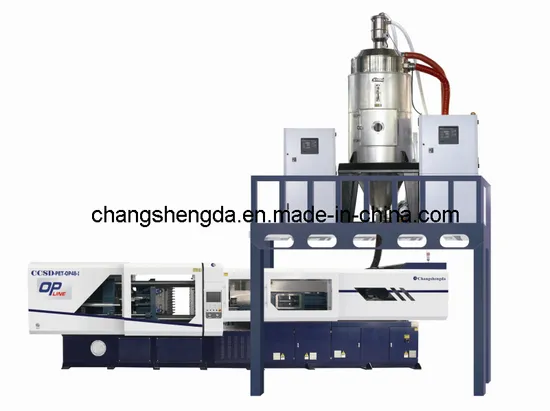

High Capacity Outside Cooling Injection Molding Machine (CSD-PET-OP Series)

Product Description

Changshengda Machinery (Zhejiang) Co. Ltd. (CSD) specializes in research and development in Injection Molding Machines for medical and food industry, PET two stage Automatic Stretch Blow Molding Machines, Automatic Extrusion Blow Molding Machines and various types of Plastic Moulds and other hi-tech products.
The machine is with environmental protection, high-precision energy saving.
CSD-PET-OP Series, High capacity direct pressure outside cooling production line
Anvantage
1. High speed: Nitrogen assisted injection system
2. Features: Direct pressure mold clamping system, the most stable mold clamping system
3. Environmental protection: No contact between 4 tie bars and moving template, lubricating oil free
4. Precise: Servo valve injection system, 100% accurate in repeated injection
5. Advantage:One station manufacturing for the preform mold and injection molding machine,

CSD-OP SERIES HIGH CAPACITY AND OIL FREE OUTSIDE COOLING INJECTION MOLDING MACHINE TECHNICAL DATA
				CSD-PET-OP48-I		CSD-PET-OP48-II		CSD-PET-OP72-I
				Design for lighter preform		Design for heavier preform		Design for lighter preform
INJECTION UNIT	SCREW DIAMETER		mm	100		120		120
	SCREW L/D RATIO		L/D	25		25		25
	SHOT VOLUME(THEORETICAL)		cm 3	2900		3800		3800
	SHOT WEIGHT		g	3335		4370		4370
	INJECTION PRESSURE		Mpa	875		875		875
	PLASTICIZING CAPACITY		g/s	205		303		303
CLAMPING UNIT	MOLD CLAMPING MODE		rpm	Hydraulic Mold Clamp		Hydraulic Mold Clamp		Hydraulic Mold Clamp
	CLAMPING FORCE		KN	3000		4200		4200
	OPEN STROKE		mm	700		820		820
	MAX.OPEN DISTANCE		mm	1250		1500		1500
	MAX. MOULD THICKNESS		mm	430		600~800		600~800
	SPACE BETWEEN TIE BARS(W×H)		mm	690×690		750×820		750×820
	EJECTOR FORCE		KN	120		130		130
	EJECTOR STROKE		mm	180		250		250
MOLD	CAVITY(MAX)		PIECE	48		48		72
	NECK SIZE		MM	30/25		42		42
	MAX.PREFORM WEIGHT		G	32		48		32
	MOLD FORM			PNEUMATIC VALVE HOT RUNNER		PNEUMATIC VALVE HOT RUNNER		PNEUMATIC VALVE HOT RUNNER
INSTALLED POWER	MAX. PUMP POWER		KW	92		127		137
	ROBOT POWER		KW	28		28		32
	HEATER POWER		KW	50		50		70
	HEATER POWER		KW	64		80		80
OTHERS	FREEZE WATER		°C	6-12		6-12		6-12
			Mpa	0.6-0.8		0.6-0.8		0.6-0.8
			L/MIN	600		600		600
	COOLING WATER		°C	20-25		20-25		20-25
			Mpa	0.3		0.3		0.3
			L/MIN	300		300		300
	COMPRESSED AIR		Mpa	0.7-0.9		0.7-0.9		0.7-0.9
			L/MIN	800		800		800
	AIR DRYER		KG/MIN	250-450		250-450		250-450
			KG/MIN	300-500		300-500		300-500
			KG	2000-3000		2000-3000		2000-3000
	MOULD DEHUMIDIFIER		MODEL	MSP-2000		MSP-2000		MSP-2000
			°C	-40		-40		-40
	OUTPUT		PCS/H	19000		19000		23000
