High Quality Wholesale Discount Heavy Duty Electronic Mining Conveyor Belt Scale

Product Description

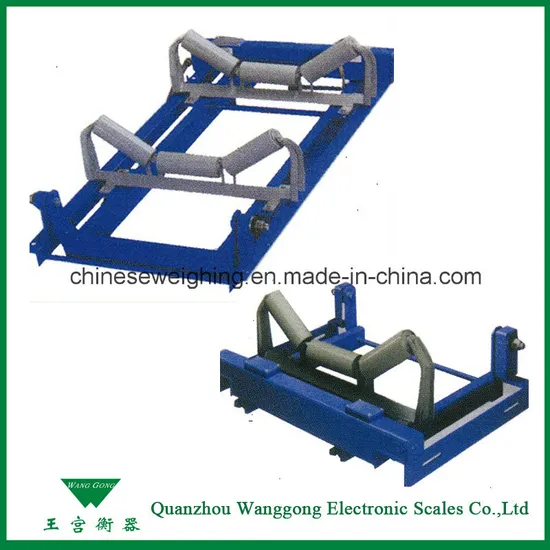

Product Description New Designed Electronic Conveyor Belt Scale for Bulk Goods
The conveyor belt scale is a device used to measure the mass or flow rate of materials transported on a conveyor belt.
A scale system typically includes a weighing device (such as a load cell) and a processor that calculates the weight of
material as it moves along a conveyor. This enables companies to monitor and control material flow and ensure
accurate measurements for inventory management and process control. Conveyor scales are commonly used in
industries such as mining, aggregates and manufacturing to optimize production efficiency and inventory tracking.
Structure:
The structure of a conveyor belt scale usually includes the following components: Conveyor belt: A conveyor belt that
transports the material to be measured. Weighing device: Includes load cells or other sensors that measure the force
exerted by materials on the conveyor. Idlers: These are the support rollers that the conveyor belt rides on, they help
guide the belt and support the load. Integrator/Processor: This is the component that receives signals from the weighing
device, processes the information, and calculates the weight of the material. Support Structure: The frame or platform
that supports the conveyor belt and weighing system. Junction box: used to connect load cells and other components to
the integrator. These components work together to accurately measure material flow on the conveyor, providing
valuable data for process control and inventory management.

Specification & parameter:

Model	Accuracy (%)	Weighing range (t/h)	Belt speed (m/s)	Adaptive belt width (mm)	Belt conveyor inclination	Load cell (PC)	Weighing roller
ICS-XE(14A)	±0.125	5-3000	0.2-4	500-2400	≤6	4	4
ICS-ST4(17A)	±0.25	5-3000	0.2-4	500-2400	≤18	2	4
ICS-ST4(17B)	±0.25	5-3000	0.2-4	500-2000	≤18	2	2
ICS-ST2(20A)	±0.5	1-2000	0.2-4	500-1400	≤18	1	2
ICS-ST2(20B)	±0.5	1-2000	0.2-4	500-1400	≤18	1	1
ICS-DT(30A)	±0.5	1-2000	0.2-4	500-1400	≤18	2	1

Applications:

FAQ
1.Can you customized the scale design for us?
Yes, we have professional team with rich experience of all type scales design by CAD software.you only need to tell us scale design or send us the technical drawing you want, so that we can customize according to your request.
2.Can you also offer truck scales weighing scales for us?
Yes, we can offer different models of different capacity and size of truck weighing scales to meet different request of customers.
3..How about your weighing scales quality, we are worry about the quality?
We are more than 30 years manufacturing experience of different kinds of electronic truck scales and truck weighing scales.We strictly manufacture and manage according to IOS9001:2000 System.and can match all the CE standard or more strict standard. Our products are running well in more than 30 countries
4.How we visit your factory and what will be the procedure?
Our company located in Quanzhou, FU JIAN province, our nearest airport is JIN JIANG airport, if you take plane, it will need about 1 hours from Guangzhou city, 1.5hours from shanghai and 2 hour from Beijing.We will pick you up from airport as well as the train station.Welcome you and your team to visit us at any time!
5.Your truck scale price is high, is there any discount?
We always provide high quality weighing scales with reasonable prices.Our truck scales have enough quality standard to make sure the scale can work at different sourrounings situations. Our marketing style is quality equal to price, the price will be acceptable for our clients and durable for our productsAnyhow, when we will negotiate the price with each other during our meeting in factory and try our best to get a good satisfaction.

Why you choose us? ---- IMPORTANT!!
1/ PROFESSIONAL EXPERIENCE
2/ RELIABLE QUALITY GUANRANTEED
3/ REASONABLE PRICE BASED ON ITS QUALITY
4/ STABLE WORKING EASY INSTALL AND MAINTANCE
5/ SPECIAL SERVICE AND IN-TIME SERVICE BEFORE AND AFTER SALES
6/ MATURE TECHNICS UPDATE
