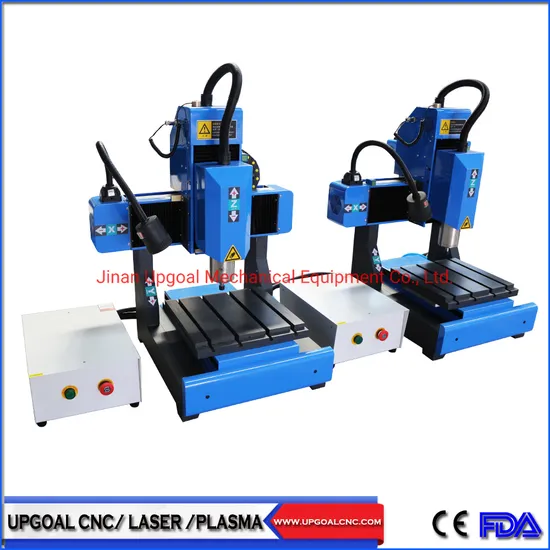

Hobby Desktop Type 3030 CNC Engraving Machine for Artware

Product Description

Hobby Desktop Type 3030 CNC Engraving Machine for Artware
Features
1.Whole cast aluminum structure with vibration temper aging treatment ensures no deformation for long time.
2.Aluminum T slot working table with platform moving type. Durable without deformation enable positioning more precision.
3.Equipped with Hiwin Taiwan linear square guide rail for XYZ-axis, effectively improved the precision.
4.Three axis with precision ball screw transmission ensure the engraving speed and accuracy.
5.High variable speed China Qiancheng 1.5W water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.
5.Powerful stepper motor and driver for XYZ-axis, compared with the stepper motor, ensuring high speed and precision working
6.Independent control cabinet withwelded aviation plug type. Rationalized placement of the electronic parts. Optimized heat dissipation effect. Adopt high quality electronic parts, minimizing fault rate.
7. PCI NcStudio control system(optional DSP/Mach3 controller), connect with the desktop computer, showing the processing path and estimate the processing time, more convenient.
8. Dust-Proof design for XYZ-axis, protect the guide rail and gears pinon racks from the Dust&Dirt, help to ensure machien working performance.
9. With LED Light convenient for night work
10. Auto tool calibration, accurate and convenient for Z-axis 0 point setting.
11.With the function of break-point memory ,power failure resuming and automatic home/origin correction function.Effectively ensure long time working precision.
12. Working Pause, Speed adjust, Working depth adjust at any time while working. Preview the 2D&3D working result With simulation function. Variable Speed is suitable for various materials and industry.
13. Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection.
Technical Parameters

Effective working area	300(X)mm*300(Y)mm*100(Z)mm
Materials	Whole cast aluminum structure
Working table	Aluminum alloy T slot with PVC layer
Moving type	Platform moving
Guide rail	Linear square guide rail ( Hiwin, Taiwan)
Transmission	Lead ball screw for XYZ-axis
Driving mode	Stepper motor (87BYGH-311)and driver (DM542-05)
Spindle motor	1.5kw water cooling(Qiancheng, China)
Spindle speed	0-24000rpm
Inverter	Fuling
Voltage	AC 220V+ 10%, 50/60Hz, single phase
Traveling speed	8000mm/min
Engraving speed	6000mm/min
Machine accuracy	0.03mm
Control system	PCI NcStudio control system
Suitable software	Artcam, Type3, Ucancam V9,etc
Carving Instructions	G code *Uoo *mmg *plt HPGL
Running environment temperature	0-45 ºC
Relative humidity	30%-75%
Tool calibration	Auto
Certificate	CE

RELATED PRODUCTS
Application
Industry application: Wood work, Advertising Sign&Mark, Acrylic Cutting, Advertising plate, Led Lamp.
Applicable material: Wood, Aluminum sheet, aluminum composite panel, dual-color plate, Mdf, Cristal plate, artifical marble and other metal and non-metal materials.
Working Method: 3D embossment engraving, 2D engraing and Cutting, Bottom Milling.
Reference Sample Photos
Reference Working Videos
https://youtu.be/KKnCoQ88pWw
Accessories & packing

For more information, just feel free to contact us!
