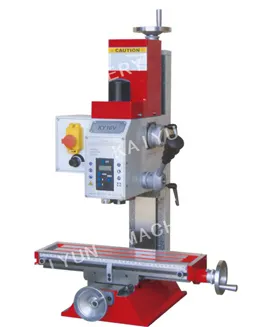

Portable High Quality Precision Manual Turret Benchtop Small Mini Drilling Milling Machine (KY16V)
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
KY16V
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Motor
600W
Spindle Taper
Mt2
Net Weight
60kg
Drilling Capacity
16mm
Face Milling Capacity
63mm
End Milling Capacity
20mm
Table Size
400X120mm
T-Slot
10mm
Load of Table
55 Kg
Transport Package
Wooden Case
Specification
KY16V
Trademark
KY
Origin
China
Production Capacity
150-200 Sets /Month
Product Description
Features1.Compact, economical mini ertical drilling/mlling machine.
2.Variable speed enables to oprerate easily.
3.Spindle is supported by high precision taper roller bearing.
4.Gear head provides greater torque.
5.Mill head may be tilted 90 degree
6.Adjustable taper gibs.
| Specification | |
| MODEL | KY16V |
| Drilling capacity | 16mm |
| Face milling capacity | 63mm |
| End milling capacity | 20mm |
| Spindle taper | MT2 |
| Sleeve travel | 50mm |
| Low speed stage | 50-1125 rpm |
| High speed stage | 100-2250 rpm |
| Head rotation | ±90° |
| Table size | 400x120mm |
| X-axis travel | 220mm |
| Y-axis travel | 160mm |
| Z-axis travel | 210mm |
| T-slot | 10mm |
| Load of table | 55 kg |
| Motor | 600W |
| Packing size | 500x450x760mm |
| Net weight | 60kg |
| Standard Accessories | |
| Speed display | 1 set |
| Depth ruler | 1 set |
| Drill chuck 3-16mm | 1 set |
| Arbor MT2/B16, M10 | 1 set |
| Optional Accessories | |
| Stand & chip tray | |
| Keyless drill chuck 3-16mm | |
| ER25/6pcs collet chuck (4-16mm) | |
| 2-way angle vise-50mm | |
| End mill 7pcs (4-16mm) | |
| 58pcs of clamping kits/M10*11.7mm | |
| X-axis Power feed | |
Packing & Delivery
Warehouse to film
We are mainly supplier of machinery in China, specialized in manufactureing metal bench lathe, gap-bed lathe, drilling & milling machine, wood lathes, metal band saws and other sheet metal machine etc. Advanced production equipment enable us to turn out high quality products. Our fine quality products, which are certified by CE. Our innovative R&D teams will try their best to fulfill any requirements of order put forward by different customers. We also would like to act as OEM/ODM for our customers. If you are interested in our products or have special requirements, pls feel free to contact us. Then we, Sale Dept will give you a satisfying reply ASAP.
