Paper Drinking Straw Making Machine
| US$15,000.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SW-XG50
Tube Machine Type
Winding Machine
Gumming Type
Double Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
50-60m/Min
Wall Thickness of Paper Tube
0.5-1mm
Certification
CE
Condition
New
Winding Type
Three Head Two Belts
Cutting System
Numerical and Multi-Blades
PLC
Sanwin
Servo Motor
Schneider
Inverter
Schneider
Touch Screen
Sanwin
Voltage
3p, 380V, 50Hz
Weight
1400kgs
Dimension
4000*1500*1200mm
Power
7kw
Speed
50-60m/Min
Transport Package
as Requested
Specification
50
Trademark
SANWIN
Origin
Ruian, Zhejiang
HS Code
84418090
Production Capacity
500PCS/Year
Product Description
SWXG-50 High Speed 60m/min Multi Cutters Paper Straw Making Machine Descriptions:This Machine is suitable for producing different sizes of paper straws and very small paper tubes.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.
[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
[4] Paper and glue stand is Integral Type. Euipped with Auto Paper Connection system and Glue Heating system. Improved machine running speed.
Technical Parameter:
| Technical Parameter | Control System | ||
| Paper Layer | 3 layers | Total Power | 7.0kw |
| Paper Straw OD | 5-12mm | PLC | Sanwin |
| Wall Thickness | 0.5-1mm | Operating Panel | Panel Master |
| Stable Speed | 55-60 meters/min | Inverter | 3.7kw Schneider |
| Winding Nose | Two noses single belt | Electric Components | Schneider |
| Cutting System | Numerical Multi-blades (7 cutters online | Servo Motor | Schneider |
| Synchronism tracking cutting system | Servo motor synchronism tracking | Pneumatic Components | Jingwei |
| Bearing | Haerbin | ||
| Gluing Way | Single/Double sides | Screw Rod / Slider | Shangyin |
| Paper Straw Collecting | Online | Configuration | |
| Operator | 1-2 person | Paper Reel Stand | 3 Layers Auto Paper Connection |
| Power Supply | 380V/3Phase/50Hz | Gluing Unit | 3Layers Equipped with Heater |
| Measurement & Weight | Winding Belt | 5 Pieces | |
| Measurement | 3500*1500*1200mm | Mandrel Shaft | 2 Sets |
| Working Space | 7000*5000mm | Cutting Bldes | 15 Pieces |
| Weight | 1400kgs | Useful Tool | 1 Set |
Machine Photo:

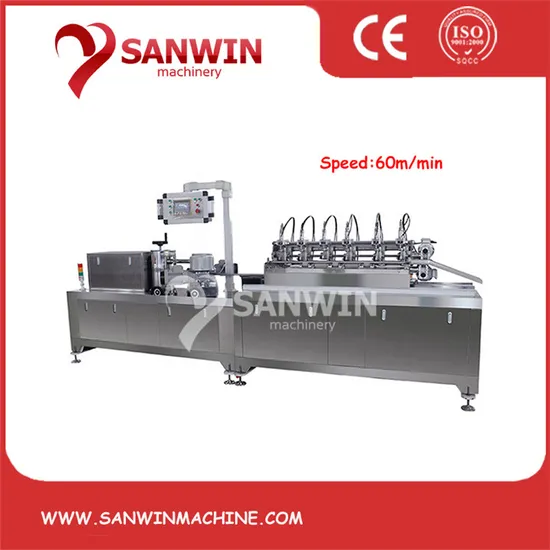

-Full Machine
- 6PCS CNC Multi-knives Inline Cutting System
-Winding Part
-L type Auto Collector
-Integral Type Paper Reel Stand & Glue Unit (equipped with Auto Paper Connection & Glue Heating)
Paper Drinking Straws
Packaging & Shipping
Our Factory:
Our Customer:
Our Service :
1 Year Guarantee !
100% Good Quality !
24 Hours online Service!
if you have any query, pls tell me freely. We will try our best to satisfy with you !
