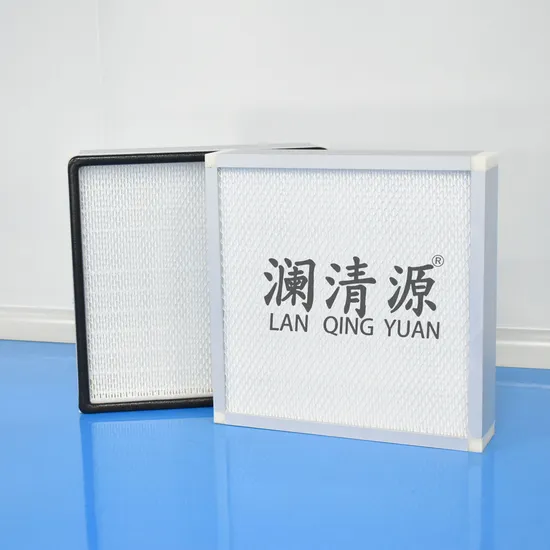

H13/H14/U15/U16 Mini Pleat HEPA Filter Fiberglass Paper Ventilation Filter 46/50/69/90/100mm HEPA Air Filter Semiconductor HEPA Filter Purifier HEPA Filter

Product Description

H13 H14 High quality clean room operating room HEPA filter, panel air filter, semiconductor HEPA filter Surface velocity above 0.95m/s Resistance below 160Pa >Features: 1. Ultra-low resistance 2. High efficiency 3. Lightweight 4. Thin thickness 5. Low operating cost
>Applications: Applicable to electronic semiconductor manufacturing, atomic force research, medicine, precision machinery, cosmetics and other occasions requiring high cleanliness.
>Composition materials and operating conditions:

Frame material	Aluminum profile
Sealant	Polyurethane rubber
Partition material	Hot melt rubber
Filter material	Filter material
Maximum operating temperature	80ºC
Maximum operating humidity	100%
Sealing strip	Chloroprene rubber

>Model size and other specifications:

Model	Overall size (W×H×D) (mm)	Rated airflow (m3 /h)	Rated airflow (m3 /h)	Initial resistance (Pa)	Final resistance (Pa)	Efficiency (Counting @20.3μm)
LQYGW-25	305 x 305 x 69	250	0.52	≤ 160	400	≥ 99.99
LQYGW-30	305 x 305 x 80	300	0.62
LQYGW-30H	305 x 305 x 90	300	0.62
LQYGW-50	412x412x 110	500	0.57
LQYGW-100	575x575x 110	1000	0.58
LQYGW-100B	610x610x69	1000	0.52
LQYGW-120	610x610x80	1200	0.62
LQYGW-120H	610x610x90	1250	0.65
LQYGW-150H	696 x 696 x 110	1500	0.63
LQYGW-150	610x915x69	1500	0.52
LQYGW-150S	1470x720x50	1500	0.39
LQYGW150H	1470x720x69	1500	0.39
LQYGW-175	570 x 1170 x 69	1750	0.73
LQYGW-180	610x915x80	1800	0.62
LQYGW-180H	610x915x90	1850	0.64
LQYGW-200	610x1220x69	2000	0.52
LQYGW-20B	1220x1220x50	2000	0.32
LQYGW-20H	1220x1220x69	2000	0.27
LQYGW-215	570x1170 x 80	2150	0.62
LQYGW-220	570x1170 x 90	2200	0.64
LQYGW-240	610x1220x80	2400	0.62
LQYGW-250	610x 1220x90	2500	0.63
LQYGW-250B	1220x1220x90	2500	0.55
LQYGW-340W	610×610×292 (W-type)	3000	0.76

Note: Air filters of different specifications and models can be customized according to users' requirements.
>We have advanced production and test equipment
>Certificates and test reports
>More than 5 years export experience
> Professional packaging and container loading
Packaging is very important, especially for cardboard frame disposable filters and HEPA filters with glass fiber filter media. So we're very careful about that.
>FAQ
Can the product be customized?
Yes, the products and packaging can be customized.
How to pay?
Our company accepts various payment methods, such as T/T, L/C, etc. What is the lead time?
7-10 days after payment; 12-15 days for bulk goods
Have you arranged the shipment?
1. Yes, we can arrange the delivery according to the customer's requirements
2. Bulk goods by air or sea, full container; Airport/port reception;
How about after-sales service?
Our company is responsible for the products provided during their useful life.
