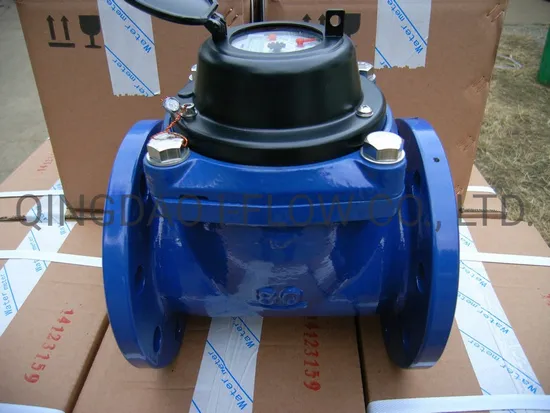

Cast Iron Body Plastic Plate Flanged Woltman Water Meter

Product Description

Cast iron body plastic plate flanged woltman water meter Material:cast iron body,plastic plate
Working pressure PN16
Type:waltman ,irrigation
Size:DN50-DN300 LXLC(R)-50~300
Removable element woltman water meter
This meter can be used for a remote reading transmission system as equipped with a built-in sensor.
Application
--Measuring the volume of water passing through the pipeline.
Feature:
--Removable element structure, easy installation and maintenance, register for universal use within this range detachable without Removing the meter from the pipeline;
--Dry-dial, Magnetic drive sensitive action, negligent pressure loss;
--Vacuum sealed register to keep the reading clear in a long term service;
--Selected high quality materials for steady & reliable characteristic;
--Manufactured and tested in accordince to standard ISO4064
Working condition
Water temperature: 0.1ºC~30ºC ( 0.1ºC~90ºC for hot water)
Water pressure: ≤1Mpa (1.6MPa for special requirement)
Note:For hot water,the Model:LXLCR-50~300
Maximum permissible errors
in the lower zone from qmin inclusive up to but excluding qt is ±5%
in the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Specification

Model	Size (mm)	Class	qs	qp	qt	qmin	Min. Reading		Max. Reading
							Nomal register	M type register	Nomal register	M type register
			LXLC(R)-65	65	A	50	25	7.5	2.0	0.0005	0.0002	999,999	999,999
B	5	0.75
LXLC(R)-80	80	A	80	40	12	3.2	0.002	0.002	999,999	9,999,999
		B			8.0	1.2
m3/h				m3
LXLC(R)-50	50	A	30	15	4.5	1.2	0.0005	0.0002	999,999	999,999
		B			3.0	0.45
LXLC(R)-100	100	A	120	60	18	4.8	0.002	0.002	999,999	9,999,999
		B			12	1.8
LXLC(R)-125	125	A	200	100	30	8	0.002	0.002	999,999	9,999,999
		B			20	3
LXLC(R)-150	150	A	300	150	45	12	0.002	0.002	999,999	9,999,999
		B			30	4.5
LXLC(R)-200	200	A	500	250	75	20	0.002	0.002	999,999	9,999,999
		B			50	7.5
LXLC(R)-250	250	A	800	400	120	32	0.02	0.02	9,999,999	99,999,999
		B			80	12
LXLC(R)-300	300	A	1200	600	180	48	0.02	0.02	9,999,999	99,999,999

Dimensions data(mm)

Model	Size		L		H	Flange connection
						φD1 External diameter	φD2 Bolt circle diameter	Connecting Bolts (n-M)
	mm
LXLC(R)-50	50	200		261		165	125	4-M16
LXLC(R)-65	65	200		271		185	145	4-M16
LXLC(R)-80	80	225		279		200	160	8-M16
LXLC(R)-100	100	250		289		220	180	8-M16
LXLC(R)-125	125	250		299		250	210	8-M16
LXLC(R)-150	150	300		319		285	240	8-M20
LXLC(R)-200	200	350		346		340	295	8-M20(1.0MPa)
								12-M20(1.6MPa)
LXLC(R)-250	250	450		450		395(1.0MPa)	350(1.0MPa)	12-M20(1.0MPa)
						405(1.6MPa)	355(1.6MPa)	12-M24(1.6MPa)
LXLC(R)-300	300	500		478		445(1.0MPa)	400(1.0MPa)	12-M20(1.0MPa)
						460(1.6MPa)	410(1.6MPa)	12-M24(1.6MPa)
