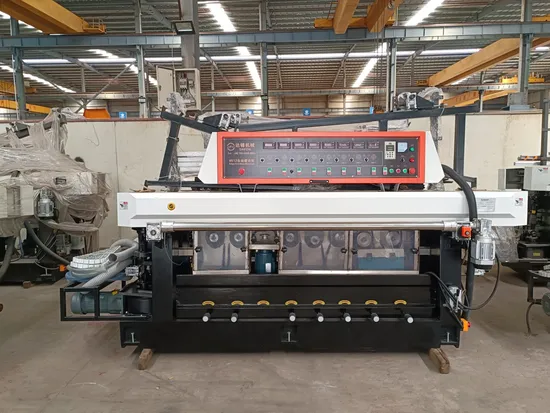

Multi-Functional Straight Edge Chamfering Machine8512

Product Description

Multi-functional Straight Edge Chamfering Machine8512
-8 heads double pillars
-Electric adjustment motor the electric adjustment motor moves back and forth, lifts
-The grinding wheel of this machine adopts water grinding disc, equipped with a snail buckle joint, frequency conversion speed regulation
Features: The machine is variable frequency speed regulation, No. 1, No. 2 forming motor 5.5 kW, No. 3, No. 4 polishing motor 4 kW, No. 5 motor 3 kW (1-5 good motor flat), No. 6 motor 3 kW (vertical), the motor can be moved to the smooth surface of the plate to process the stair anti-skid groove, or it can be moved to the bottom of the stone to process the flat edge to remove the wire), the 7th, 8th fine polishing motor 3kw, (the 7th-8th motor is flat) motor The machine base independently researches and develops a single guide column structure, which can be locked after adjusting the position of the grinding wheel motor. It can be equipped with an 18cm diameter grinding wheel, and the guide rail can be lifted and lowered synchronously. According to different stone sizes, the thickness is less than 8 cm and the height is more than 6 cm. Grinding various flat stone sizes Round edge, French edge, R round belt side throw, stair opening, anti-skid belt, polishing belt, linear shape completed at one time, grooved polishing Slotted polishing is counted as all kinds of special-shaped edges, rough grinding, fine grinding, and polishing processes are completed at one time, and the brightness after processing is high. Due to the brightness of the board surface and the wear and tear of the polishing grinding wheel, the grinding wheel can electrically adjust the abrasive lifting during the operation process to compensate. The structure is advanced and reasonable, the precision is high, the efficiency is fast, the operation is convenient, the maintenance is simple, and the feeding can be adjusted during the grinding process. The speed and the amount of processing, the maximum processing of 5m/min, and the normal use of the machine are equivalent to the normal stone processing of 15 people's workload, and to eliminate the process defects caused by workers during processing.

Technical parameters:

Feed Output Speed	0.8m-5m/min
The Minimum Processing Size of Stone	10-60mm*60mm
Total Power	36KW
Body Weight	3100KG
Boundary Dimensions	7300mm*1100mm*2000mm

Processing Photo:
After Sales Service:
We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training on how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping
The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.
