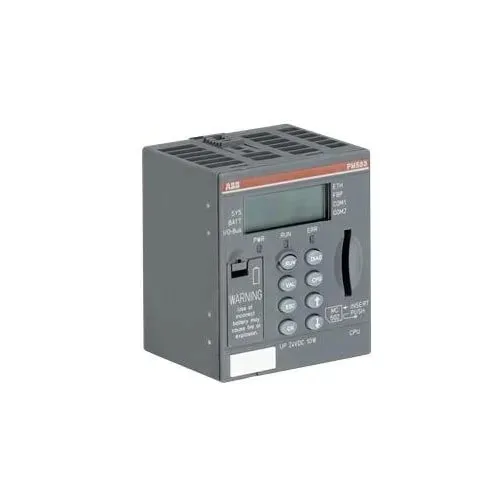

Pm5012-R-Eth AC500-Eco V3 Processor Module 1sap122700r0172 CPU Module Industrial PLC

Product Description

With the AC500 PLC range we provide a reliable and powerful platform to design and create scalable, cost-effective and flexible automation solutions.
Scalable
The scalability of the AC500 PLCs is achieved by offering a large variety of devices to design and implement configurations suitable for simple control tasks or complex automation solutions.
The AC500 PLC provides action flexibility with one integrated software.
Cost-effective The AC500 PLC range consists of various CPUs, I/O modules, communication modules, communication interface modules and accessories. The "all modules used on any CPUs concept" in combination with our life cycle policy helps our customers to react quickly, flexibly and economically on new requirements.
Flexible Our AC500 is designed to offer the needed easiness, security and reliability to expand the automation system to new challenges. The memory, performance and the networking capabilities mean more functionality, advanced visualization, more operating comfort - for even better individual customer solutions. Technical Function: Memory 1MB. 6 DI 24 VDC. 4 DO-Relay. Ethernet interface. 1 option slot Memory Size: 1008 kB Memory Type User Data: RAM Controller Processing Time: 0.0002 ms Number of Digital Inputs: 6 Number of Digital Outputs: 4 Number of Digital Configurable I/Os: 0 Input Voltage Type: DC Rated Voltage (Ur): 24 V DC Supply Voltage: 20.4 … 28.8 V DC Dimension Product Net Weight: 0.229 kg Product Net Depth / Length: 74 mm Product Net Height: 135 mm Product Net Width: 82 mm Gross Weight: 0.26 kg
