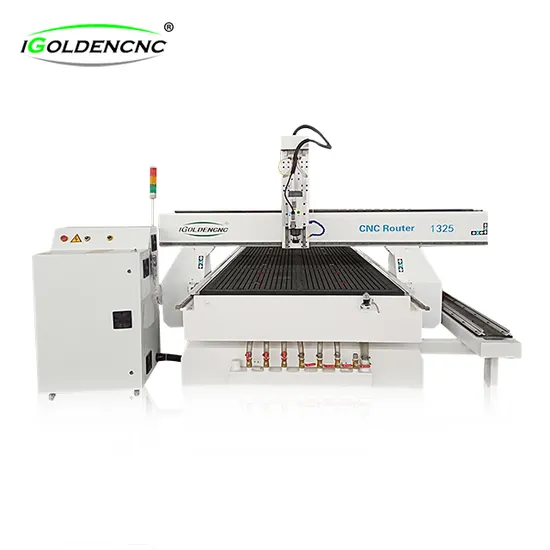

Multi Function CNC Router with Right Side Rotary 4axis Wood Router for Door Furnitures Cabinets MDF Plywood
Basic Info.
Model NO.
4axis wood router
CNC or Not
CNC
Voltage
380V
Applicable Industries
Building Material Shops, Home Use, Retail, Energy
After-Sales Service Provided
Engineers Available to Service Machinery Overseas,
Control System
DSP
Working Area
1300X2500mm
Inverter
Fuling
Transmission
X,Y-Rack Pinion ,Z-Ball Screw
Driving System
Stepper Motor and Leadshine Driver
Guide Rail
Imported Taiwan Hiwin Square Guide Rail
Table
Vacuum and T-Slot Table
Collector
Double Bags Collector
Lubrication System
Yes
Transport Package
Wooden Case
Trademark
IGOLDEN
Origin
China
Production Capacity
500
Product Description
Multi function CNC router with right side rotary 4axis wood router for Door Furnitures Cabinets MDF Plywood| Item | Description | Option | |
| Model | IGR-1325 with rotary | Customize sizes available | |
| Work area | 1300x2500x200mm | ||
| Table size | 1485x3000mm | ||
| Transmission | X/Y rack and pinion drive, Z ball screw drive | | |
| Motor | Stepper motor | Delta/Yaskawa/Panasonic servo | |
| Spindle | Power | 4.5kw | 4.5kw/5.5kw/6kw |
| Cooling | Air cooling | air cooling | |
| speed | 0-18000rpm | | |
| Table type | Vacuum table | T-slot | |
| Travel Speed | 0-25m/min | | |
| working speed | 0-15m/min | | |
| Reposition Accuracy | 0.005mm | | |
| Control System | Nc-studio | DSP / Mach3 / Syntec | |
| Command code | G code,HPGL,U00,mmg,plt, | | |
| Design software | ARTCAM/TYPE3/ CAD/CAM | | |
| Working Voltage | AC380v 3phase/50HZ | | |
| Temperature | 0-45ºC | ||
