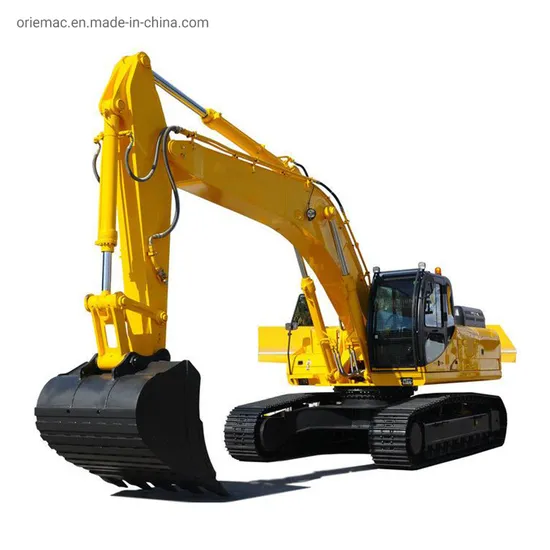

21ton China Xe215c Isuzu Engine Tracked Mining Excavator

Product Description

21ton China Xe215c isuzu engine tracked mining excavator
Product Description
- The imported Isuzu engine with original packing has strong power, and can meet the requirements of high-efficient work. - Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine.
- Low emission meets the Europe II standard.
- The adoption of new cooling fan and large-scale silencer lowers the noise of the machine.
- The adoption of the advanced turbocharging technique increases the highland adaptability of the machine.
- Automatic preheating system improves the working capacity in the low temperature.
- Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine.
- Restart prevention system effectively avoids the misoperation, and improve s the use security of the machine.
Technical Parameters

Model			XE215C
Bucket capacity		m³	0.91
Standard bucket width		mm
Operating weight		kg	2,1500
Dimension (in transportation)	Overall length	mm	9,520
	Overall width	mm	2,990
	Overall height	mm	2,985
	Min. ground clearance	mm	485
Engine	Model		ISUZU BB-6BG1TRP
	Total displacement	L	6.494
	Rated output power	KW/rpm	106.5/1950
Digging performance	Max. digging height	mm	9,640
	Max. dumping height	mm	6,800
	Max. digging depth	mm	6,655
	Max. vertical digging depth	mm	5,695
	Max. digging radius	mm	9,925
	Boom deflection angle: left/right	°
	Min. slew radius	mm	3,530
	Min. rear slew radius	mm	2,750
	Bucket digging force	kn	138
Track type			Steel
Track width		mm	600
Travel system	Track overall length	mm	4,255
	Wheel base	mm	3,462
	Track gauge	mm	2,390
	Travel speed (Gear I/II)	km/h	5.5/3.5
	Gradeability	%	70
Slew speed		rpm	13.3
Bulldozing plate	Bulldozing plate (width)	mm
	Bulldozing plate (height)	mm
	Lifting distance (GL up/down)	mm
Hydraulic pump type			Piston pump×2
Fuel tank capacity		L	360
Hydraulic oil tank capacity		L	220
