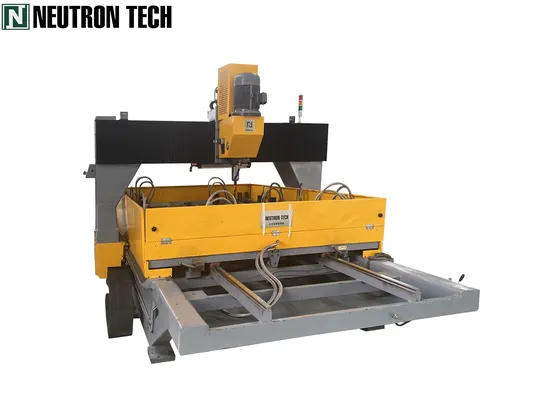

CNC Drilling Machine for Plates PLD2012 Steel Structure Steel Drilling Facility Drilling Equipment

CNC Drilling Machine for Plates PLD2012 Steel Structure Steel Drilling Facility Drilling Equipment

US$40,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PLD2012
Automatic Grade
Automatic
Condition
New
Processing
Drilling Machine
Processing Types
Metal
Workpiece and Weight
Large Machine Tool
Transport Package
Wooden Box
Specification
customized
Trademark
NEUTRON TECH
Origin
Shandong, China
HS Code
8465920000
Production Capacity
50 Set/Sets Per

Product Description


Product parameters
Name Detail
Size of work piece Thickness Max.100mm
Width ×length 2000mm×1200mm one piece
1200mm×1000mm two pieces
1000mm×600mm four pieces
Axis Quick change chuck Morse Taper 3# 4#
Diameter of Drilling head Φ12mm-Φ50mm
Variable speed mode Stepless speed adjustment
rotation speed 120-560r/min
max. feeding stoke 240mm
Feeding Hydraulic Stepless speed adjustment
Clamping Clamping thickness 15-100mm
Number of clamps 12 pieces
Clamping force 7.5KN
Clamping start Foot switch
Cooling water Type Forced circulation
Hydraulic clamping 6MPa(60kgf/cm2)
Volume 100L
Air force Air supply 0.4MPa(4kgf/cm2)
Servo Motor Axis 5.5KW
Hydraulic pump 2.2KW
Servo motor of chip removal device 0.4KW
Cooling pump 0.25KW
Servo motor of X axis 1.5KW
Servo motor of Y axis 1.0KW
Servo motor of Z axis 1.0kW
Size L×W×H About 3160×3975×2377mm
Weight Machine 4800kg
Chip removal system 400kg
Stroke X Axis 2000mm
Y Axis 1200mm
Postioning speed Max. 10000mm/min

Working temperature: 0ºC ~ 40ºC
Working humidity: ≤75%
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz±1HZ
Product display
Certifications
Company information
Our service
Pre-sale Service
1. We have full stock, and can deliver within short time. Many styles for you to choose.
2. OEM and ODM order are accepted
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
5. We have rich experience of design, manufacture and sell hardware products, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-7 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
Packaging&shipping
FAQ:
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
