U Groove Easy Click AC3/AC4/AC5 10.3mm /12.3mm Black/Green Wooden HDF/MDF Laminated Laminate Flooring for Decoration Material

Product Description

Product Description
Goods: HDF Laminate Flooring

Product Name	HDF Laminate Flooring
Wear Layer	AC1(Class 21),AC2(Class 22),AC3(Class 31),AC4(Class 32), AC5(Class 33)
Base Board	MDF,HDF,Base board density 700/730/810/830/850kg/m3, or customized
Balance Paper	Color:Brown,Green,Yellow,Blue,Beige, Grey,Orange-red
Flooring Surface	Small embossed,Middle embossed,Big embossed,Crystal,EIR, High gloss,Matte,Mirror or Piano,Real wood,Hand scraped
Standard Dimension	606x101mm,806x403mm,810x150mm,1218x198mm,1220x200mm,1220x127mm,1220x150mm,1220x170mm, 1220x400mm,1515x200mm,1515x240mm,2400x240mm,2400x300mm
Thickness	7mm,8mm,10mm,12mm
Thickness Swelling Rate	<18%or customized
Formaldehyde Emission	E0,Carb P2,E1,
Floor Edge	Square edge,V-groove,U-groove
Special Treatment	Waterproof Wax Seal, Soundproof EVA, Green HDF/black HDF core
Click Lock	Valinge, Unilin, Single click, Double click, Arc.

Physical sheet:

Technical Data for Hongcheng Laminate Flooring
Characteristics	Test Standard	Unit	Standard or Rating
HDF density	GB/T18102-2007	KG/M3	≥850
Class 23	EN13329		general residential use in living rooms and dining rooms
Class 31	EN13329		more varied locations, such as small offices and other light commercial location
Class 32	EN13329		higher traffic commercial areas such as boutiques, busier offices, and restaurant
Abrasion resistance	EN13329,Annex E	R	AC3≥2000
			AC4≥4000 AC5≥6000
Formaldehyde E1	EN717-1	MG/M3	0.124
Length Tolerance	EN13329, Annex A	MM	≤0.5
Width Tolerance		MM	≤0.2
Thickness Tolerance		MM	≤0.5
Squareness of the element		MM	≤0.2
Straightness of the surface layer		MM/M	≤0.3
Flatness of the element		%	f w, concave ≤ 0,15 % f l, concave ≤ 0,50 %
Openings between elements(mm)	EN13329, Annex B	MM	average ≤ 0.15
			max ≤ 0.20
Height difference between elements(mm)		MM	average ≤ 0.10
			max ≤ 0.15
Dimensional variations after changes in relative humidity	EN13329,Annex C	MM	≤0.9mm
Light fastness	EN ISO105-B02		Blue wool scale ≥6
	EN 20105-A02		Gery scale ≥4
Static indentation	EN433	MM	No visible change
Surface soundness	EN13329,Annex D	N/MM2	≥100
Impact Resistance	EN13329,Annex F	MM	IC2
Resistance to staining	EN438		5, No visible changes
Resistance to cigarette burns	EN438		4
Effect of a furniture leg	EN424		No visible changes
Effect of a castor chair	EN425		No visible changes
Thickness Swelling rate(%)	EN13329,Annex G	%	≤18
Slip resistance	EN14041		DS

Detailed Photos
1) Click Profile that you can choice workable one 2) Can do ODEM/OEM design packing Box for you
3) Specifications and Installment:

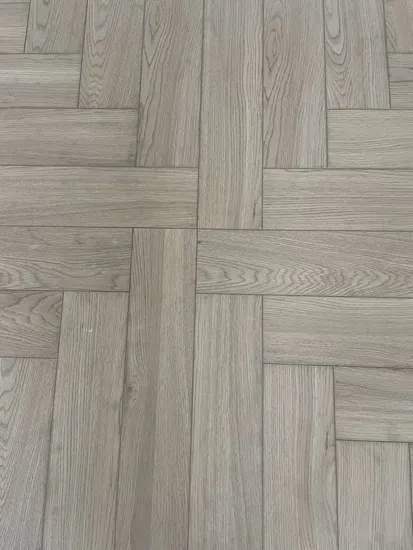

4) Some pictures of the flooring:
Packaging & Shipping

Company Profile
Our Factory of the Laminated flooring was established in Oct.2013 that specialized in manufacturing Laminate flooring and SPC flooring. We are located in Liaocheng city, Shandong province,China.
Our factory covers 68,000 square meters with more than 150 employees.We have 20 laminate flooring production lines and 10 SPC flooring production lines, the capacity is 1,000,000 square meters monthly. We have 10 steps quality inspection to ensure premium flooring and perfect after-sales service system.
As a professional manufacturer of flooring. All of our products are with IS09001,IS014001,CE and floor score. We can provide one-step service, OEM&ODM, customized designs. Our flooring are exported to the United States, Canada, Europe, South America, the Middle East, Southeast Asia and other countries .Looking forward to establish great business relationships with all clients to make a promising future!
FAQ 1) How many quantity the flooring is loaded in the contaienr?
Thickness 7mm @ 3580SQM/40'GP
Thickness 8mm @ 3350SQM/40'GP
Thickness 10.5mm@ 2550SQM/40'GP
Thickness 12mm @ 2250SQM/40'GP
2) What's your MOQ? How many color I can choose? Answer: The MOQ is one 20' container with 2-3 colors from the E-catalog. If your quantity is less than one container, you can also choose 500sqm per color from our stock color or 1000sqm from the E-catalog.
or we can do the color that your samples.
3) Can you provide the floor accessories? Answer: Yes. we also provide matching profiles such as skirting, staircase, and kinds of underlayments (IXPE, EVA, Cork etc.).
4)What is the average production time? Answer: Our average production time is about 20-25 days.
5)Can you offer packing designs as per customers' requests? Amswer: Yes, the customized box design is available.
6) What is your terms of payment? Answer: 30% deposite made by T/T , the balance is paid at the sight of the copy BL by TT or by L/C at sight; or 100% made by LC at sight
