Low Price Adult Diaper Production Line Diaper Making Machine

Low Price Adult Diaper Production Line Diaper Making Machine

US$800,000.00-1,200,000.00 1 Set (MOQ)

Basic Info.

Model NO.
adult diaper machine
Product Object
Adult
Designed Speed
300PCS/Min
Production Speed
220PCS/Min
Computer Control Panel
Yes
Product Specification
S, M, L, XL
Automatic Grade
Automatic
Certification
CE, ISO
Condition
New
Diaper Machine Color
Ivory White
Machine Direction
to Be Defined
Machine Power Source
380V/50Hz
Process
Adult Diaper Machine
Usage
98%
Type
Adult Diaper Machine
Processing Technology
Laminated Machine
Effciency
90%
After-Sales Service Provided
Video Technical Support
Service Provided
Field Maintenance and Repair Service
Transport Package
Transparent Film for Baby Diaper Machine
Specification
M, L, XL
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Sets

Product Description

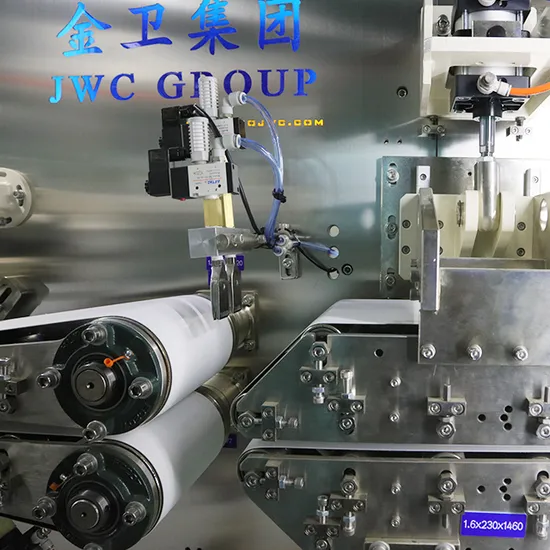

JWC-LKC-SV-T Full Servo T Shape Adult Diaper Machine Fully Automatic Machine Price
Product Description
This T shape Adult Diaper Machine includes main machine, glue applicators, packing system and other accessory equipment including air compressor, vision detection system and metal detection machine etc. This T sahpe Adult Diaper Machine can produce 3-5 sizes diapers according to the order. This production line can realize 100%full automatic control.
1.Machine frame Reasonably solid square steel frame
2. Crusher system
3. 2 sets Fluff forming system
4. 2 sets SAP feeding system
5. Bottom tissue feeding, roll diameter φ800mm
6. Upper tissue, roll diameter φ800mm
7. Fluff core wrapped by upper and bottom tissue, also can be wrapped by one whole piece tissue
8. ADL feeding, roll diameter φ800mm
9. Fluff core inner cut device 1 setadopt frame type structure, increase the cutter life,
10. Leak cuff unit
11. Hydrophilic nonwoven supply, roll diameterφ800mm
12. Three pieces complex, two sides fixing unit, adhesion pressing
13.Nonwoven ear tape supply, roll diameterφ800mm
14.Magic tape material supply:
15.Ear tape feeding unit.
16. Ear tape nonwoven folding & compressing unit.
17.Ear tape nonwoven slicing unit, equipped with auto web guider.
18.Ear tape cutting unit.
19.Elastic waist band supply unit.
20.Bottom film supply
21.Frontal tape supply:
22.surface layer, absorption core, bottom film pressing
23.product arc shape die cut
24.pressing unit(Y shape roller)
25.Waist end Licra feeding
26.pressing unit(Y shape roller)
27.Product vertical folding
28.transmission unit
29.horizontal fold transmission unit
30.horizontal fold unit
31.product transmission unit
32. Auto rejection exit
Product Parameters
1 Design speed 300pcs/min
2 Stable working speed 200pcs/min
3 Qualified rate 97%
exclude the wastage due to the glue applicators and materials splicing joint
4 Efficiency 85%
5 installation capacity 570KW
7 Electricity 380V 5%50HZ
8 Wire Three phases four wires 380V/50Hz (ground wire)
9 Air pressure 0.6Mpa
10 Total weight About 105tons
11 Machine size 46*10*5 M(L*W*H)
12 Working space 52*12*8 M (L*W*H)
13 Machine color Rice white ,can be changed by order
14 Product size 4sizes
15 Containers 8X40HQ
Features at a glance
Auto lubricating System
Auto lubricating for the cutter units ,can make the machine have better cutting effect and extend the life of cutter system
Human-Machine Interface
Working speed(piece/min), single producing output, monthly output,annual output, counting quantity and products' passing rate can show on the screen
Materials automatic feeding System
Main raw materials adopt auto unwinding, auto splicing, tension control, auto FIFE web guider functions to guarantee the precise and stablility
Name Brand Origin
1 Servo motor Mitsubishi Japan
2 Auto web guider FIFE USA
3 Touchable screen Banner USA
4 PLC controlling system Mitsubishi Japan
5 Sensor Banner USA
6 Safety production Shneider France
8 Cutter raw material M7 USA
9 Gear according to usage BEM/NSK/SKF Germany/Japan/Sweden
10 Timing belt Optibelt or Gates Germany/USA
11 Low voltage electronic Shneider France
13 Temperature controlling system Omron Japan
15 Pressure regulating valve Airtac Chinese Taiwan
16 Pneumatic element Airtac Chinese Taiwan
17 Solenoid valve Airtac Chinese Taiwan
18 Moisture separator Airtac Chinese Taiwan
19 Automatic fault alarm Mitsubishi Japan
