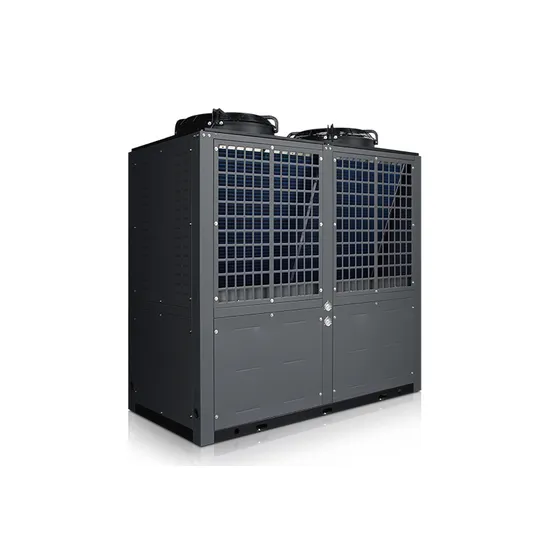

Commercial Hot Water Heat Pump R410A Eco-Friendly for Industrial Hotel School Large Hot Water Supply

Product Description

Product Description R410A constant frequency monoblock A+++ air source heat pump for school/ hotel /residential area/farm sanitary hot water support.

Product Features 1). R410A refrigerant,environmentally friendly.2). High water temperature output up to 60ºC, large hot water supply.
3). Full-automatic: Adopt the smart controller, doesn't need manual operation .
4). adequate heat transfer area ensures the high COP and performance.
5).Operation ambient temperature -15ºC~43ºC,system can be used for hotel ,hospital,school,factory and so on.
*commercial industrial air to water heat pump contains important components.
Air to water heat pumps are very energy efficient compared to traditional electric water heaters. This is because they useelectricity only to transfer heat from the air to the water, rather than creating heat through a heating element. This can result in significant energy savings over the long term, making it an attractive option for businesses looking to reduce their energy costs.
As we forge ahead,we remain firmly grounded in our guiding priciples of innovation ,sustainability,and customer -centricity.Our mission is to deliver
world-class,eco-friendly heating solutions that promote a sustainable lifestyle while ensuring our customers enjoy a warm and comfortable environment.we are resolute in our dedication to transforming the global heating landspace and leaving behind a healthier planet for future generations.
*Usage scenarios,meet the needs of daily life.
Product Parameters

Model No.	RS-019TA1	RS-022TA1	RS-032TA1	RS-038TA1	RS-045TA1	RS-076TA1	RS-090TA1	RS-100TA1	RS-200TA1
Power Supply	380~415V/3/50Hz
Heating Capacity (KW)	18.00	22.00	32.00	38.00	47.00	76.00	88.00	101.00	192.00
Rated Input Power (KW)	4.20	5.15	7.40	8.75	10.82	17.70	21.00	23.38	45.90
Rated Current (A)	7.51	9.21	13.51	15.64	19.34	32.00	37.54	41.79	80.30
COP	4.29	4.27	4.32	4.34	4.34	4.29	4.19	4.32	4.18
Max Power Input(kW)	7.20	8.70	12.00	13.90	16.23	28.50	31.50	33.90	68.85
Max Current(A)	12.90	15.60	21.60	24.85	29.01	51.00	56.31	60.60	120.45
Water Temp. Range (ºC)	Default 55, 28~60
Working temp. range(ºC)	-15~43
Anti-electric chock class	I
Water proof grade	IPX4
Water flow volume(L/h)	4000	4500	6900	8000	9500	16000	18000	20000	35000
Water Pressure Drop(kPa)	50	50	60	60	65	65	65	65	75
Compressor qty.	1	1	2	2	1	2	1	1	2
Fan motor qty.	1	1	2	2	1	2	2	2	2
Color	Black, Matte surface
Air Flow Direction	Vertical
Defrosting	Auto and By manual
Dimensions(L*W*H)(mm)	752*691*1000		1410*748*1000		1250*1076*1870	2198*1096*2176			2260*1160*2320
Noise(dB)	≤57		≤59		≤65	≤70			≤75
Net Weight(kg)	155		259		450	650	700	715	1000
Water connection(mm)	male 25		female 32		male 40	female 50			female 80
Gross Weight(kg)	163		269		462	665	725	740	1035
Packing Dimensions(L*W*H)(mm)	792*741*1151		1460*798*1151		1250*1076*1870	2198*1096*2296			2260*1160*2320

*Project Case
Under the policy of low carbon energy saving, the arrival of commercial industrial air source heat pump perfectly solves the needs of high consumption and multi-emission of People's Daily life, and achieves the purpose of reducing pollution emissions and ecological protection.
Company Profile Sacon HVAC,a number of Solareast,which is a prominent player in the energy sector, operates five state-of-the-art production bases across China.Among them, located in Shunde, Guangdong, specializes in the production of air source heat pumps.
Spanning over 100,000 square meters, we have invested USD 2 million in the construction of advanced testing laboratories. These cutting-edge facilities enable us to rigorously test machines up to 300kW, even in the harshest cold climates, with temperatures as low as -30°C.
Moreover, Solareast Heat Pump Ltd. has received prestigious certifications such as ISO9001, ISO14001,ISO18001, and our products have gained approval from
BAFA,CE, Rohs, MCS, KEYMARK, CB, SAA, ErP, among others.
With more than a decade of experience in air source heat pump technology, Solareast Heat Pump Ltd. stands at the forefront of providing sustainable and highly efficient thermal energy solutions.
FAQ Q1 Are you a manufacturer?
Answer: Yes, we are a professional heat pump manufacturer with rich experience and complete R&D, production, sales, and service supply.
Q2: What is your main product?
Answer: Our main products include DC inverter heat pump, air source heat pump water heaters, all in one heat pump, swimming pool heat pump, ,EVI heat pump and commercial in low temp. areas.
Q3: How do I place an order?
Answer: Please send us an inquiry or contact us through online services; After receiving your inquiry, we will reply to you Catalogs, quotations, and other information you need. Q4: Do you provide OEM/ODM customized manufacturing services?
Answer: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce European/North American/Australian standard heat pump under your brand according to your special needs. Q5: Can I apply to become your heat pump distributor?
Answer: We are currently looking for more heat pump distributors worldwide, who can distribute our heat pump products in local countries/regions. Q6: I need to buy in large quantities. Can you provide a sample service? Answer:Yes, we can provide sample service, and we have engineers to help you solve installation problems .
