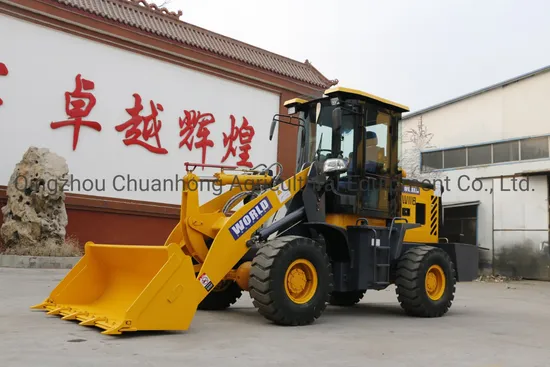

Luqing Heavy Duty New Mini Rear Shovel Truck Tractor Stone Bucket Underground Diesel Engine Wheel Loader with V Snow Plow&Snow Bucket &4 in 1 Bucket
| US$1,000.00-2,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LQ918
Type
Wheel Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Construction
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Wheeled
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Bucekt Capacity
1-1.3cbm
Engine
Yunnei/Weichai
Engne Power
47kw
Tire
20.5/70-16
Engine Pattern
Verticaj, Water Cooled, 4 Stroke, Dir Injection
Frame
Zl18
Axle
Jilite
Gearbox
Jilite
Dimsion
4060*2050*;2790mm
Rated Load
4000kg
Engine Hood
as Requirements
Color
Yellow Ore as Requiments
Tire Size
as Requirements
Attachment
as Requirement
Cab
as Reuirements
Transport Package
No Package
Specification
CE, ISO9001
Trademark
LUQING
Origin
Qingzhou City, Shandong Province, China
HS Code
84295100
Production Capacity
1000
Product Description
Main features
--Originated from Komatsu technology, high reliability and productivity,
--Torque converter and counter-shaft transmission gearbox- Komatsu technology, higher reliability and easier maintenance,
--Fully hydraulic steering system, power shift transmission, easier operation,
--Bucket can be leveled automatically, optimized working device, higher productivity,
--Comfortable operation environment, new design cabin, Grimmer seat
-Various working devices of attachment are available, such as wooden fork, pipe fork, grass fork, stone bucket, enlarged bucket, plow, fork etc, to meet different needs
--With A/C
| Rated weight | 1800Kg |
| Rated capacity | 1.03m3 |
| Operating weight | 4000kg |
| Wheel base | 2100mm |
| Tread | 1260mm |
| Max. breakout force | 43KN |
| Max. dumping height | 3200/3700/4500mm |
| Dump distance | ≥930mm |
| Total time | 9s |
| Transportation | 4060×2050×2790mm |
Engine
| Model | WEICHAI HUAFENG ZHBG41 |
| Pattern | Vertical, water-cooled, 4-stroke, direct injection |
| Rated power/speed | 47kw/2400rpm |
| Max. torque | 270N.m |
| Normal fuel consumption | 258g/kw.h |
| Total displacement | 3.76L |
| Fuel | 0# or 10# diesel oil |
Torque converter and transmission system
| Model of torque converter | YJ265 |
| Pattern | 3-element single stage |
| Transmission type | Full-power shift, countershaft type |
| Number of gear | 2 forward, 1 reverse |
| Max. travel speed | 38km/h |
| Axle | WANGDA |
| Main reducer pattern | Arc taper gear, model ration of first grade |
| Pattern of wheel side moderation | Planet gear moderation of single |
Tire
| Tire size | 20.5/70-16 |
Steering system
| Pattern | Articulated and hydraulic steering |
| Min. turning radius(outside of bucket) | 3500mm |
| Max. turning angle | 35°±1 |
Implement hydraulic system
| Implement pump | CBG1045 |
| Distribution device model | DF15.2C |
Brake system
| Brake type | Air assisted oil disc on four wheel |
| Parking brake type | Soft axle control, outside bunch drum type |
