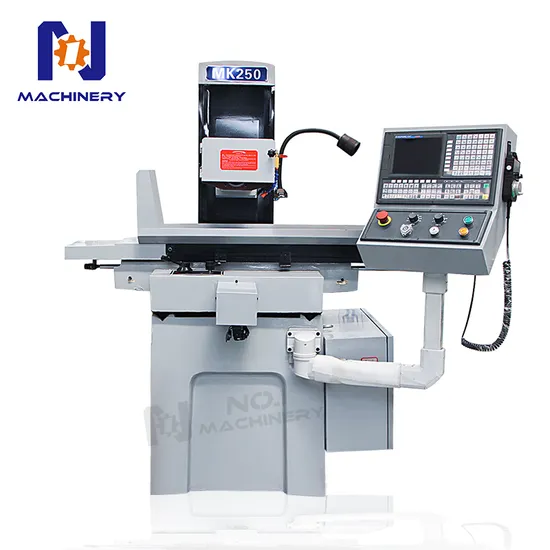

Metal Surface Grinding Machine Mk250 Horizontal Flat Grinding Machines

Product Description

Product Description

The machine tool applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.It can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters

PARAMETER ITEM	MK250
Table Size(mm)	250*500
Grinding Length(mm)	550
Table Travel (X)	550
Table Travel (Y)	500
Wheel Size(mm)	200
Surface Roughness	0.1μm
Voltage	380V
Power	1.5kw
Max. travel of table(mm) (L * W)	550*280
Table T slot	1*14
spindle center line to working table	500
Grinding wheel speed	3500
Handwheel per turn 01	2
Handwheel per lattice 01	0.01
Handwheel per turn	4
Handwheel per lattice	0.02
Dimension(L*W*H)	2400*1500*1800
Weight (KG)	1000

Detailed Photos
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
