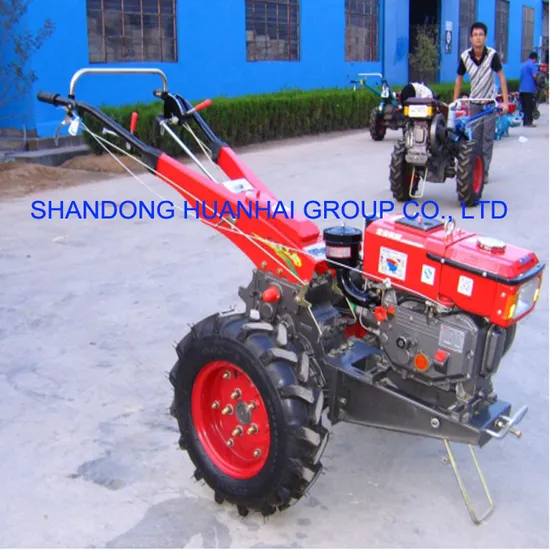

Sh101 Sh121 Sh151 Power Tiller
| US$500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SH101 SH121 SH151
Application Field
Agriculture, Agriculture, Livestock, Aquaculture, Fisheries, Forestry, Agriculture
Farming Policy
Dry Cultivating Machinery, Dry Cultivating Machinery
Power Source
Diesel, Diesel
Operation
Soil Preparation Machinery, Continuous Running Operation, Soil Preparation Machinery
Traction Type
Traction, Traction
Drive Type
Gear Drive, Gear Drive
Arbor Configuration
Horizontal Axis, Horizontal Axis
Certification
ECE
Color
Green, Red
Warranty
1 Year, 1 Year
After-Sales Service
1 Year
Transport Package
Seaworthy Packing
Specification
ISO, CE
Trademark
HUANHAI
Origin
Shandong, China
Production Capacity
20000 Sets
Product Description
| Model | SH101 |
| Engine and power | 10HP |
| Rated Traction(N) | 1700 |
| Dimensions(mm) | 2090*840*1340 |
| Min.Ground Distance | 190 |
| Structure weight(kg) | 247 |
| Type of clutch | Single friction flat of constant combination |
| Type of Steering gear | Meshing sleeve |
| Type of brake | Cricoids,Inside Expansion |
| Triangle belt | B1800 2pcs |
| Capacity of Lubrication oil | 4.5 |
| Type of tyre | 6.00-12(1.4-2.0kgf/cm²) |
| Tread(mm) | 500-700 |
| Model | SH121 |
| Engine and power | 12HP |
| Rated Traction(N) | 1700 |
| Dimensions(mm) | 2090*840*1340 |
| Min.Ground Distance | 190 |
| Structure weight(kg) | 247 |
| Type of clutch | Single friction flat of constant combination |
| Type of Steering gear | Meshing sleeve |
| Type of brake | Cricoids,Inside Expansion |
| Triangle belt | B1800 2pcs |
| Capacity of Lubrication oil | 4.5 |
| Type of tyre | 6.00-12(1.4-2.0kgf/cm²) |
| Tread(mm) | 500-700 |
| Model | SH151 |
| Engine and power | 15HP |
| Rated Traction(N) | 2400 |
| Dimensions(mm) | 2680*960*1250 |
| Min.Ground Distance | 190 |
| Structure weight(kg) | 360 |
| Type of clutch | Double friction flat of constant combination |
| Type of Steering gear | Meshing sleeve |
| Type of brake | Cricoids,Inside Expansion |
| Triangle belt | B1800 3pcs |
| Capacity of Lubrication oil | 4.5 |
| Type of tyre | 6.00-12(1.4-2.0kgf/cm²) |
| Tread(mm) | 580-800 |
Powered by S195N and SH1100N SH1105N diesel engines, it is a dual-purjpose tractor both for pull-type work and for stationary PTO driven equipment, it has the following features: structural compactness, durability, easy operation,sufficient power output, light weight and good manoeuvreability. An adjustable seat is also provided to ease the work of the operator. This model of tractor is suitable for use in paddy fields, small plots of dry field, orchard, vegetable garden as well as in hilly areas with small inclination. With different kinds of farm implements mounted, the tractor can be used for ploughing, rotary cultivating,harrowing in paddy fields, harvesting, transportation and so on. It can also drive-stationary PTO-driven equipment such as for smallscale drainage and irrigation, sprinkling and spraying, threshing, cotton-ginning,flour-millling, fodder-cutting, and other farm work in the countryside.
