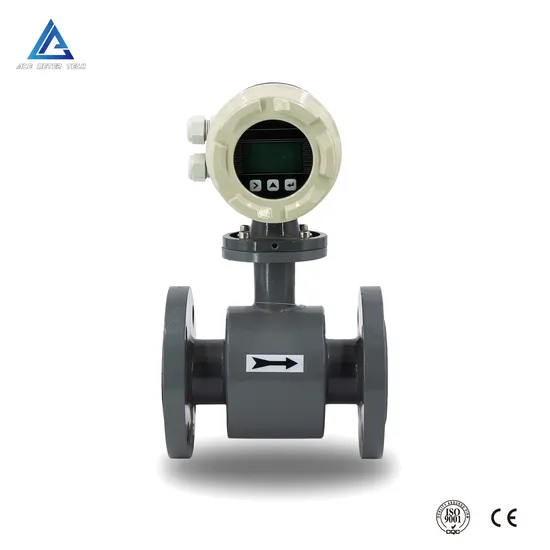

Good Price Flow Meter Electromagnetic Flowmeter for Water, Sewage, Chemical
| US$240.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACE-LDG
Size
DN6-DN2000
Sensor
Tube/Flange
Application
Industrial Production
Type
Electromagnetic Flow Meter
Measuring Media
Liquid
Measuring Principle
Electrical Principles
Measurement Object
Closed Pipeline
Certification
JIS, DIN, ANS, GB, CE, ISO
Transport Package
Paper Box; Pollywood Box
Trademark
ACE
Origin
Made in China
HS Code
9026100000
Production Capacity
100000/Year
Product Description
Good Price Flow Meter Electromagnetic Flowmeter For Water,Sewage,Chemical| Item | Description |
| Type | Integrated Type |
| Available Medium | Conductive Liquid Fluid |
| Range of Diameter | DN6-DN2000 1/4"-80" |
| Accuracy | 0.5% (0.2% Optional) |
| Conductivity | >5μs/cm |
| Velocity Range | 0.5-10m/s |
| Medium Temperature | -20-60ºC(Neoprene Rubber Liner) |
| -20-60ºC(Polyurethane Rubber Liner) | |
| -20-120ºC(PTFE Liner) | |
| -20-160ºC(F46 Liner) | |
| Rated Pressure Range | PN6-PN40 (High Pressure Customize Available) |
| PN40 (DN6-DN15) | |
| PN16(DN20-DN250) | |
| PN10(DN300-DN1000) | |
| PN6(DN1200-DN2000) | |
| Available Electrode | SS316L |
| Titanium | |
| HasteAlloy B | |
| HasteAlloy C | |
| Tantalum | |
| Platinum-Iridium Alloy | |
| Tungsten Carbide | |
| Body Material | Carbon Steel with Protection Varnish |
| Stainless Steel 304 | |
| Stainless Steel 316/316L | |
| Connection | Flange(GB,DIN,ANSI,JIS,HG or Customize) |
| Wafer Flange(For High Pressure Condition) | |
| Thread(NPT,BSP,GB or Customize) | |
| Sanitary Tri-Clamp(DIN,3A,ISO Standard) | |
| Straight Pipe Section | 5*DN Upstream .3*DN Downstream |
| Display | LCD Display with Adjusting Button |
| Power Supply | 24VDC(8-36VDC) |
| 220VAC(85-270VAC) | |
| 3.6V Lithium Battery(Life Time 2-3 Years) | |
| Signal Output | 4-20mA |
| Frequency/Pulse | |
| Communication Protocol | RS485 MODBUS |
| HART | |
| Electricity Entry | M20*1.5 |
| 1/2" NPT | |
| Protection Grade | IP65 |
| IP67 | |
| IP68 | |
| Explosion Proof Grade | ExdIICT4(Sensor) Exd{ia}IICT5(Transmitter) |
Good Price Flow Meter Electromagnetic Flowmeter For Water,Sewage,Chemical
