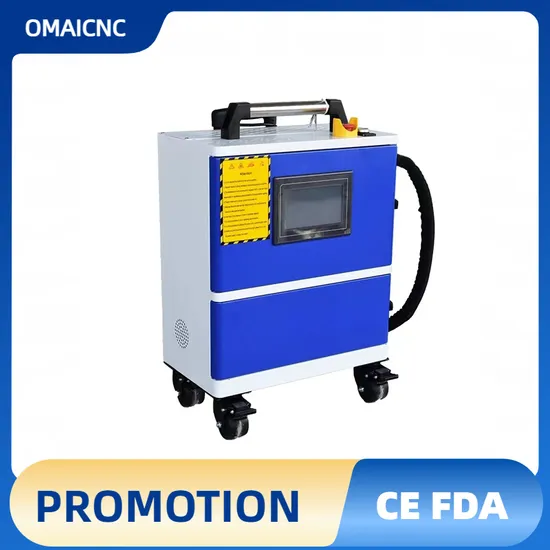

2025 Newst Fiber Pulsed 300W Laser Cleaning Machine Handheld Rust Removal Machine for Metal

Product Description

2025 Newst Fiber Pulsed 300W Laser Cleaning Machine Handheld Rust Removal Machine for Metal
Technical Parameters

Laser Source	JPT (MAX optional)
Output Method	Pulsed
Delivery Cable Length	5m
Average Output Power	300W
Cooling Method	Air Cooled
Cleaning wide	130*130mm (80*80mm, 150*150mm optional)
Power Supply Voltage	110V or 220V single phase (depends on customer local)
Temperature Protection	Including
Motor abnormality Protection	Including
Offline Protection	Including
Automatic Sleep	Including
Power Consumption	1000W
Ambient Temperature Range	0~40ºC
Storage Temperature Range	-10~60ºC

Product Description
Features and Advantages:
1. Trolley-Type Chassis Design: The machine is designed for portability, making it easy to carry on high-speed trains and flights.
2. Super Integrated Injection Molding Chassis: Features a cushioning design for a stable structure that is wear-resistant, shockproof, and drop-resistant.
3. Lightweight Cleaning Head: Weighing less than 850g, the cleaning head allows for prolonged hand operation without causing fatigue.
4. Flexible Parameter Management: Users can set and adjust parameters in real-time, enabling customization to meet specific cleaning needs.
5. Precision Cleaning Capability: Unlike continuous laser cleaning machines, this model is better suited for applications requiring high precision, such as mold cleaning.
6. Upgraded Laser Cleaner: Available with laser sources ranging from 100W to 300W, offering enhanced capabilities and features tailored to various cleaning tasks.

Comparison Between Pulsed Cleaning and Continuous Cleaning (200W Pulsed Cleaner vs. 2000W Continuous Cleaner): 1. Cleaning Efficiency Comparison Aluminum Paint Removal:
The paint removal efficiency of the pulsed laser is significantly higher than that of the continuous laser, with a ratio of 7.7:1. Pulsed Laser Efficiency: 2.77 m²/h Continuous Laser Efficiency: 0.36 m²/h Carbon Steel Paint Removal:
The pulsed laser also outperforms the continuous laser in paint removal, achieving a rate that is 3.5 times higher. Pulsed Laser Efficiency: 1.06 m²/h Continuous Laser Efficiency: 0.30 m²/h 2. Material Surface Roughness Comparison Carbon Steel Surface: The pulsed laser causes minimal damage to the sample surface, resulting in a surface roughness that is close to or even lower than the original material. In contrast, continuous laser cleaning can severely damage the sample surface, leading to a roughness value that is 1.5 times that of the original material, which is 1.7 times rougher than after pulsed laser cleaning. 3. Conclusion Efficiency and Control: Under the same power conditions, the cleaning efficiency of pulsed lasers is significantly higher than that of continuous lasers. Pulsed lasers allow for better control of heat input, preventing overheating or micro-melting of the substrate.
Cost Considerations: Continuous lasers are generally more cost-effective and can compensate for efficiency losses by using higher power. However, higher power continuous lasers generate more heat input, increasing the potential for substrate damage.
Application Scenarios:
For high-precision applications requiring strict control of substrate integrity, such as molds, pulsed lasers are recommended due to their minimal material loss. For larger structures, such as steel frameworks and pipelines, where speed and lower damage to base materials are priorities, continuous lasers may be more suitable. Detailed Photos
Main Parts of the Trolley Case Fiber Laser Cleaner:
1. Laser Source: JPT Pulsed Single Mode: This single-mode laser offers excellent beam quality and strong penetration, making it suitable for cleaning a variety of surfaces, including oil stains, paint, and rust.
2. Laser Head: ZBTK High-Speed Galvanometer: Known for its lightweight, flexibility, and simple structure, this laser head is easy to operate. It supports eight cleaning modes, allowing for efficient cleaning of various complex surfaces.
3. Controller: Multilingual Support: The controller accommodates multiple languages, including Chinese, Japanese, Hungarian, Russian, German, French, Italian, Spanish, and Portuguese, enabling seamless communication between users and the machine.

Machine Operation Process of Trolley Case Fiber Laser Cleaner: 1. Connect Power: Unpack the power line and connect it securely to the machine.
2. Turn On the Key Switch: Activate the machine by turning on the key switch.
3. Wear Protective Glasses: Always put on protective eyewear to ensure safety during operation.
4. Activate the Control Board: Turn on the control board and adjust the parameters as needed for your cleaning task.
5. Start Cleaning: Press the button on the laser head to initiate the cleaning process and enjoy your cleaning experience.
Application of Trolley Case Fiber Laser Cleaner:
1. Laser Rust Removal: The laser effectively removes rust, restoring surfaces to a bright metallic finish or the original base color.
2. Laser Oil Removal: Cleans metal surfaces of oil, while simultaneously removing oxide films.
3. Laser Paint Removal: Efficiently removes various types of paint, including automotive duco, from a range of substrates and vehicles.
4. Coating Stripping: Effective in stripping coatings such as galvanized layers, aluminized layers, and protective coatings.
5. Oxide Film Removal: Eliminates oxide films from aluminum alloys, titanium alloys, and copper alloys.
6. Pre-Weld Treatments: Laser cleaning pre-treats aluminum alloys, effectively suppressing welding porosity defects.
7. Post-Weld Cleaning: Facilitates non-contact removal of post-weld oxide films and slag residues.
8. Aluminum Alloy Pre-Welding: Pulsed lasers remove dirt and oxide films from aluminum alloys before welding.
9. Graffiti Cleaning on Stone: Ideal for graffiti removal from stone surfaces, with 300W or 500W options providing optimal results.
Warranty and After-Sales Service of Trolley Case Fiber Laser Cleaner: We provide comprehensive services to ensure customer satisfaction. Our commitments include:
1. 2-Year Warranty: Enjoy a 2-year warranty on the entire machine and a 2-year warranty on the laser source, covering defects not caused by human error.
2. Online After-Sales Support: Our dedicated support team is available from Monday to Sunday, 9 AM to 10 PM, via WhatsApp, Skype, WeChat, and email.
3. Lifetime Maintenance Services: We offer lifetime maintenance services even after the warranty period expires.
4. Hardware and Software Support: Customers will receive a wide range of hardware and software support after the warranty ends, including free upgrades.
5. Door-to-Door Service: Local service options are available to provide you with personalized support.
Package and Delivery of Trolley Case Fiber Laser Cleaner:
1. Outer Packaging: The machine is securely packed in a strong wooden case to ensure protection during transit.
2. Inner Packaging: Each unit is wrapped in a waterproof plastic film, with foam protection in each corner for added security.
3. Packaging Dimensions: The package size is 660 mm x 460 mm x 1015 mm (L x W x H).
4. Weight: The total weight of the package is 60 kg.
Customer Feedback:
Certifications
Certifications:

FAQ
Additional Order Information: 1. Lead Time: Typically, orders ship within 3-5 days if in stock. For custom orders, lead times range from 7 to 30 days.
2. Minimum Order Quantity (MOQ): Our MOQ is 1 piece, except for customized orders.
3. Tax Information: To help reduce or avoid taxes, we can declare a lower value on shipping documents upon request.
4. Samples: Free samples are available. For more details, please contact our customer service team.
Our company:

Jinan Omai CNC Machinery Co., Ltd. stands as a leading manufacturer, specializing in a diverse range of laser technologies, including laser cleaning machines, welding machines, fiber laser cutting, and marking machines. With a decade of industry expertise, our proficient engineers, skilled assembly and testing teams, and dedicated after-sales support ensure superior quality products and services. We accommodate small batch orders, offer OEM and ODM services, and provide bespoke solutions crafted to your unique specifications. Our esteemed global clientele spans across the USA, UK, Taiwan, South Korea, Malaysia, Thailand, Australia, Brazil, Russia, South Africa, and beyond.
