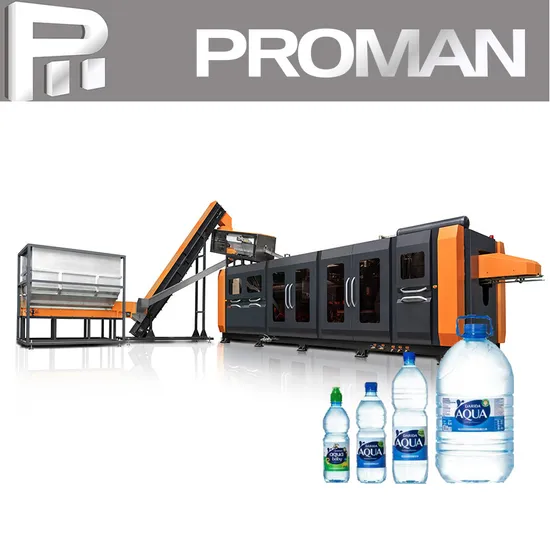

Automatic Two Steps Blowing Small Plastic Water Carbonated Drinks Bottle Blow Molding Machine

Product Description

Automatic Two Steps Blowing Small Plastic Water Carbonated Drinks Bottle Blow Molding Machine The PET bottle blowing machine plastic bottle machine is suitable for the production of 0.1-2.0L plastic containers and round and square bottles.
PM series pet stretch blow molding machine is the most stable two-step automatic stretch blow moulding machine.
It has various cavities and the maximum capacity of the products is 20L.
It can blow bottles in shapes: carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers etc. which is made of plastic of crystalline type, such as PET and PP etc.
Advantages of Our Bottle Blow Molding Machine 1.Automatic perform input and ready bottle output system.2.Machine adopt with the overall structure of super-standard anti-vibration design, high-speed operation state of the machine will shake down to a minimum.3.Machine adopts modular assembly method, greatly decrease the local amendments due to technological improvements when the machine is on processing.4.The structure of machine oven adopt the international most advanced energy-saving technology of infrared radiation heating, temperature control with automatic negative feedback, closed-loop regulation model.5.Automation controlling item adopts international high-end computer system, heating, collecting and measuring perform temperature with simulation input and output module.6.Man-machine interface displays current production situation, available for on line switching, parameter modification and production accounting, with automatic alarm, automatic fault detection and diagnose.7.Storing more than 7 kinds specification for making bottle.8.Adopt latest international air pneumatic.9.In order to save air, we choose high pressure blowing exhaust recovery system, which can save energy by 10-15%.
Details of Our Bottle Blow Molding Machine
Line Flow Chart PET preform→autoloader→reheater →molding→ bottles
Technical Parameters

Model	Item	PM-K4	PM-K8	PM-K12
Productivity	Depend on bottle design	6000-8500PCS/H	12000-14000PCS/H	18000-24000PCS/H
Product type	Volume	0.1-2.0L
	Body Diameter	≤100mm
	Height	≤330mm
	Neck Diameter	≤38mm
Mold	Cavity	4	8	12
	Mold thickness	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360mm
Main machine power	Electrical source power	220V/380V 50/60HZ
		3Phase
	Rated power	29KW	65KW	71KW
	Really use power	13.5KW	32.5KW	30.5KW
Air system	Work pressure	5-6kg/cm²
	Blow Bottle pressure	25-45kg/cm²
	Higher-pressure gas consumption	6000Ltr/min	12000Ltr/min	24000Ltr/min
Cooling water	Water Flow	88L/min	150L/min	220L/min
Machine	Size(L*W*H)	3600*1600*1900mm	5780*1860*1930mm	7570*1400*1800mm
	Weight	4300KG	7450KG	11600KG

Our Service
Customized service We can design the machines according your requirements(material,power,filling type,the kinds of the bottles,and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years. After-sales service 1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly 2.When you finish the Preparation conditions,our fast and professional aftersales service engineer team will go to your factory to install the machine,give you the operating manual,and train your employee until they can operate the machine well. 3.We often ask feedback and offer help to our customer whose machine have been used in their factory for some time.4.We provide one year warranty 5.Well-trained & experienced staff are to answer all your inquiries in English and Chinese6.24 hours for engineer response (all services part 5days in customer hand by Intl' courier). 7.12 Months guarantee and life-long technical support.8.Your business relationship with us will be confidential to any third party. 9.Good after-sale service offered, please get back to us if you got any questions. Quality Control We have separate quality control department, which make sure the raw materials are qualified,also ensure the machine running smoothly. If you want to know more information about the product,Send inquiry to us, we will solve any of your problems and send you running video for reference.
Packaging & Shipping
Company Information
Zhangjiagang Proman Machine Co., Ltd. is a production manufacturer and exporter in China, specialized in water treatment plants,beverage filling machine, packing machine, bottle blowing machine, injection moulding machine and spare parts of filling line.Our factory was established in the year of 1998, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineers of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.Besides, we have our own designs for the bottles.Proman Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply!
FAQ 1. Where is your factory?
Our Factory is located in Zhangjiagang City, 2 hours drive from Shanghai and 1 hour drive from Wuxi(airplane & high-speed rail). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.
2. Do you have any technical supports with your Bottle Blow Molding Machines?
Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.
3. What's your guarantee or the warranty of the quality if we buy your machines?
We offer high quality machines with 1 year warranty and supply life-long technical support.
You're always welcome to visit our company. If you have any interest on our products. Please do not hesitate to contact us.
