Precision Bar Cutting System for Green Energy Solutions Applications

Product Description

Equipment Use: Expertly crafted to deliver unmatched cutting efficiency, this model features an impressive roller length of 690mm and is designed with a table size of 170/145mm*690mm*160mm*2. Masterfully handles slicing products with thicknesses ranging from a delicate 0.3mm to a robust 65mm, making it the ultimate choice for precision cutting applications.

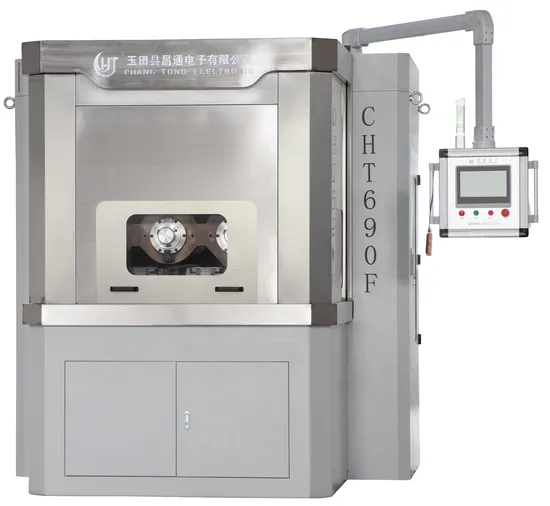

CHTXQ-690F Double Plate Multi-Wire Cutting Machine Product Features
1. Driven by four independent motors orchestrating four robust rollers, this ingenious design significantly reduces the wear on steel lines while extending the lifespan of the rollers. Meticulously designed roller bracket mounting holes ensure flawless spindle alignment, promoting seamless operation.
2. Outfitted with a sleek LED display, this machine offers cutting data that is both highly accurate and effortlessly interpretable.
3. Ingeniously designed with a unique bottom-up material feeding system, this machine affords effortless loading and unloading, impeccably streamlining your entire cutting process.
4. Available in both high-speed and standard models, the high-speed variant boasts enhanced line speed and exceptional cutting efficiency, perfectly accommodating the use of finer diamond lines for superior results.
5. Boasting advanced transverse movement capability, its versatile table glides back and forth, enabling precise tile cutting along with a seamless single-line cutting function.
6. With a generously expansive loading area of 170/145mm*690mm*160mm*2, this powerhouse dramatically elevates your cutting efficiency.
7. Unwavering spindle precision maintained at ≤0.01mm. Its patented dust-proof structural design (Patent No. ZL201320681902.7) ensures unparalleled stability and effortless maintenance.
8. With user-friendliness and efficiency at its core, this machine features an automatic lifting shield and a completely expanded workbench, simplifying both material and roll handling.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This cutting-edge double-station multi-wire cutting machine includes advanced diamond wire processing features, enabling users to process two plate materials per cycle. With a roller length of 690mm and a cutting area of 220mm*690mm*160mm*2, the rotary tool holder accommodates cutting blade thicknesses from 0.5mm to 65mm, providing both single-line and multi-line cutting for hard and brittle materials.
Engineered as a high-performance multi-line cutting machine with diamond wire processing, featuring a roller length of 570mm and a maximum cutting area of 220mm*570mm*160mm. Its rotary tool holder is ideal for cutting products with thicknesses ranging from 0.3mm to 65mm, making it perfect for extensive processing of hard and brittle sheets.
This sleek and compact multi-line cutting machine, available in both single and double station models, is expertly designed for precise small batch straight sheet processing. Its adaptability allows for swift and easy specification adjustments, supporting cutting sheet thicknesses from 0.5mm to 30mm, and accommodating both single and multi-line functions for small batches of hard and brittle materials.
>Stable Wire Web Control
Revolutionary cone-positioned rollers and wire spools deliver exceptional precision and rigidity, significantly minimizing wire web oscillation.
>Optimized Pulley System
Ingenious 8-pulley design effectively reduces diamond wire torsion, tension fluctuation, and breakage rates, ensuring consistent peak performance.
>Easy Wire Winding
Designed with innovation, the wire pay-off wheel employs a universal PV600 reinforced I-wheel spool, eliminating rewinding needs for effortless wire management.
>Safety Guarantee
The main operation door, equipped with an electric lift and comprehensive safety mechanism, provides an unbeatable safety assurance.
>Wire Break Memory System
>Easy Operation
Open on three sides, the cutting room design enhances straightforward operation and provides unhindered maintenance access.
