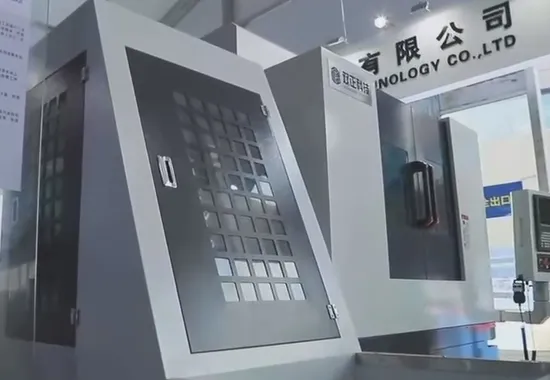

Stripping Drilling and Groove Pulling One-Time Processing Ball Machine
| US$49,999.00-499,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ball machine
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools, Vertical Axis Rotation
Movement Method
Contour Control
Control Method
Servo
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Transport Package
Wooden
Trademark
SHUANGZHENG
Origin
China
HS Code
8457300000
Production Capacity
100-200PCS/Year
Product Description
Machine tool introduction
1, casting process: the special machine adopts HT300 integral casting, three times aging treatment according to the process to ensure that the bed does not deform and its accuracy, all the power head mounting holes and datum surface, using the machining center to complete a one-time processing.
2, bed structure: integrated bed, using spiral chip push machine to chip removal machine to complete automatic chip removal (saponification liquid cooling)
3, processing method: the product blank through the truss in each station in turn clamping processing, complete drilling, turning spherical surface, drilling side holes, milling side slot processes, a complete product processing
4, fixture mode: hydraulic synchronous clamp, hydraulic Angle cylinder, hydraulic chuck, internal support fixture
5, loading and unloading method: lifting machine material, vibration plate discharging, truss claw clamping material through each station processing, and finally into the conveyor belt, transferred to the material box
6, processing efficiency: about 7 seconds/piece
The function of each station is introduced
Station 1
Hoist material
Station 2
CP 30 synchronous clamp stroke 30mm maximum operating pressure 40bar
Perforated power head sleeve diameter 120mm stroke 120mm maximum rpm 3000 rpm
Station 3
Ball power head sleeve diameter 120mm travel 150mm maximum revolution 2000
The maximum speed of the electric spindle is 8500 rpm
Maximum working pressure of internal brace chuck is 40 bar
The hydraulic chuck stroke is 6mm and the maximum working pressure is 20bar
Station 4
Perforated power head sleeve diameter 120mm stroke 120mm maximum rpm 3000 rpm
The maximum operating pressure of the rotary cylinder is 40bar
Station 5
Slotted power head sleeve diameter 120mm stroke 120mm maximum rpm 3000 rpm
The hydraulic chuck stroke is 6mm and the maximum working pressure is 20bar
Station 6
laying-off
Automatic transfer
Left and right movement (X) Maximum speed 300mm/s travel 350mm
Up and down movement (Z) Maximum speed 200mm/s stroke 159mm
Machine configuration
| Bed body HT30 | HT30 |
| Italian style servo power head | CD12BSH-120M-NT40 |
| Electric spindle | Taiwan |
| Sync clamp | Taiwan |
| Ball screw | THK |
| Operation system | Taiwan |
| Low-voltage electrical apparatus | Schneider |
| Pneumatic element | SMC/AIRTEC |
