3D Video of Software System for Pipe Spooling Fabrication Line

Product Description

NAEC---- Lean Fabrication Service Operator for Energy Engineering Industry!
Suitable for industries of: OIL AND GAS, REFINERY FACILITIES, OFFSHORE &SHIPBUILDING, POWER PLANT, ETC.
Reference: CCC, Larsen & Toubro, PEC, Rotary Engineering, Petrol Steel, JSL, Tamimi, AIM, CNPC, SINOPEC, CNOOC, CNCEC, etc.
3D Video of Software System for Pipe Spooling Fabrication Line
With the development of our new management software for pipe spool fabrication, we can provide metal engineering and fabrication solution covering the following steps:
Automatically convert original 3D drawings to 2D spool drawings for automatic fabrication;
Generate worksheet for scheduling production and warehouse material control in weekly or monthly capacity;
Distribute and balance workload in each work station
Track and feedback fabrication status and quality for office control
Ensure constant output with high efficiency and good quality spools
We upgraded our service to a whole new level-- the FABRICATION LIFE MANAGEMENT service, which is the guarantee of your automated fabrication system production efficiency!

Pipe Spool Fabrication Machines

1		Pipe Cutting& Beveling All-in-one Machine >Suitable for pipes not larger than 8",max.thickness:20mm >Cutting efficiency:100times/8hrs >PLC control with automatic measuring to guarantee the same processing cycle >Widely used for small bore C.S/S.S production lines
2		High Speed Band-saw Cutting Machine >Three models available(16"type,24"type",48"type) >PLC system control;self-measuring function with precision:±0.5mm >Using hydraulic self-centering chuck >It only takes 6 minutes to cut a 24" pipe of 25mm thickness >Widely used for C.S/S.S production lines.
3		High Speed CNC Pipe End Beveling Machine >Automatic self-centering chuck >Single V,double V,U type bevel >Can be matched with pipe end turning devic >High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm) >Several models available:16",24",32",48"
4		Two / Multi- Axis CNC Flame/Plasma Cutting Machine >High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe. >Five/multi-axis cutting machine can profile more complicated outlines with various bevel type >Standard machine suitable for pipes nor larger than 24''
5		Multi-function Pipe Fitting-up Station >Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up. >Light-duty type(manual) and heavy-duty type(motorized) are available. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
6		Automatic Pipe Welding Station >With two welding heads >TIG/MIG/SAW are optional >PLC system control & WPS programmed >Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology. >Different types available, 8" type, 24" type, 32" type, 48" type, 60" type
7		Conveyor Handling System >used for pipe convenient transporation during in pipe spool fabrication. >Its speed is adjustable between 2M to 20M/min.

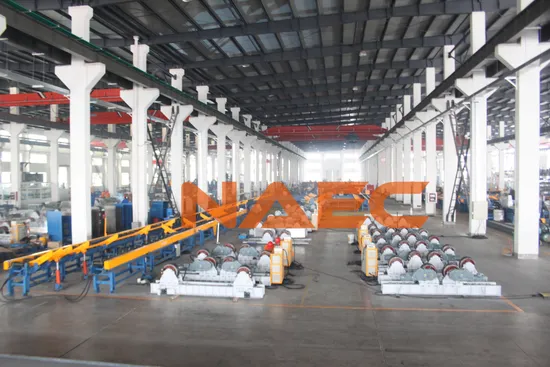

Welcome to visit our headquarters in Nanjing, China. For more information please contact us. Thank you!
