Swiss CNC Precision Y-Axis Lathe for Metalcutting Applications

Product Description

Product Description
Discover the compact yet powerful Small Gang Type Turning Milling CNC Center Lathe, now enhanced with a Y-Axis specially designed for exceptional metal cutting precision.
--Introducing the CK32A3, a versatile Multi-Functional Turning & Milling Composite Lathe crafted for superior performance and versatility.
--The CK32A3-S model builds on the robust capabilities of the CK32A3 with the addition of the innovative Y-axis, offering even greater precision and flexibility.
--Expertly engineered to handle and process diameters up to 32mm, ensuring reliability and efficiency for your metalworking needs.--The CK32A3-S is distinguished by its inclusion of the Y-axis, enhancing its range of functionality to meet diverse production requirements.
--The CK32A3-B model comes equipped with a sub spindle, expanding its operational capacity for intricate metalworking tasks.--When configured with an automatic bar feeder, this system effortlessly transitions to full-automatic processing, maximizing productivity and minimizing manual intervention.

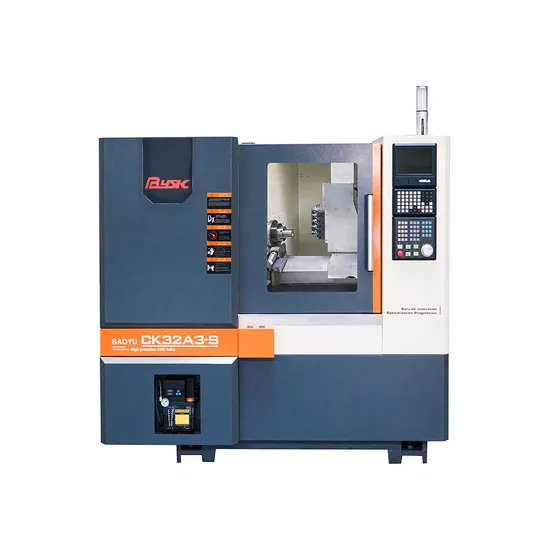

CK32A3-S
CK32A3
Product Parameters
CK32A3-S Gang Tool CNC Lathe: Introducing the CK32A3-S Gang Tool CNC Lathe, a marvel of precision engineering from Anhui Yuzhou Machine Tool Co., Ltd. Crafted meticulously for professionals seeking unparalleled accuracy in CNC machining, this advanced lathe is your ultimate solution for precision metalcutting applications. Harness the power of cutting-edge Swiss CNC technology, designed to cater to your most demanding industrial requirements. Experience the perfect blend of innovation and performance in the CK32A3-S, where precision meets efficiency for all your metalcraft needs.

Power	Rated voltage	Three-phase AC 380V
	Rated frequency	50HZ
	Total Input Power	7.5kW
CNC System	BYSK	YZ190
	Minimum Set Unit	0.001mm
	X Axis Pulse Equivalent	0.0005mm
	Z Axis Pulse Equivalent	0.001mm
	Max Programming Size	±9999.999
	Cutting Speed	1--4000mm/min
	X Axis Rapid Feed Speed	20000mm/min
	Z Axis Rapid Feed Speed	20000mm/min
Main Spindle	Maximum Bar Diameter	Φ32mm
	Main Spindle Through-hole Diameter	Φ33mm
	Max Rotating Diameter	Φ400mm
	Main Spindle Center Height from Ground	1000mm
	Main Spindle Speed	0-4000r/min
	Main Spindle Motor Power	4kW/5kW
Travel	X Axis Travel	600mm(Diameter)
	Z Axis Travel	300mm
	X Axis Servo Motor Power	1.3kW
	Z Axis Servo Motor Power	1.3kW
	Guide Rail Form	Linear Guide Rail

Cooling System	Cutting Oil Motor Power	0.18kW
	Cooling Box Capacity	100L
Lubrication System	Motor Power	35W
	Capacity	2L
Gang Tools System	T notch 20*20(4pcs)	T notchΦ20(2pcs)
Hydraulic System	Hydraulic Motor Power	0.75kW
	Pressure Value	3.0Mpa
Machine Size	Length * Width * Height	1820*1520*1860
	Machine Weight	1990Kg

CK32A3-S Configurations
Item	Specification	Origins
System	YZ190	Baoyu BYSK
Main Spindle	32 Main Spindle Unit	Baoyu BYSK
Main Spindle Motor	Optional
X Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
Z Axis Motor	1.3kW Absolute Value Servo Motor	Inovance+ Lines
X Axis Screw Rod	537*2510	Taiwan Joint Venture
Z Axis Screw Rod	670*3210	Taiwan Joint Venture
X Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK
Z Axis Guide Rail	HGH30	Taiwan HIWIN/PMI/THK

Optional Configurations
Y Axis Multifuctional Power Head Tool Holder
Power Head	End Face	4pcs
	Side	4pcs
	Power	End face0.75kW+Side2kW
	Rotate Speed	4000r/min
	Chuck	ER16
Gang Tools	16*16Square+∮20Hole	5pcs+4pcs

Detailed Photos
Delineating the Unique Features of CK32A3, CK32A3-S, CK32A3-B
CK32A3 Versatile Turning and Milling Composite LatheOptional ER20 Live Tool for Enhanced Utility
Robust Live Tool Servo Motor Powering at 0.75kWPrecision C-axis Indexing with Power Head for Seamless Turning & MillingExceptional Cost Efficiency
CK32A3-S Multi-Function Turning&Milling Lathe Enhanced with Y-axis for Superior PrecisionEnd-face Live tool 4Impressive 4 pcs ER16 Live Tools ER16
Advanced Live Tool Servo Motor Power 0.75kW
Innovative Side Live Tool 4pcs ER16
Live Tool Servo Motor Power of 2kW for Superior Performance
Highly Stable Rotation with Unit Spindle Structure stable rotation
Standard A2-4 Spindle Nose Accommodates spring collets or hydraulic chucks for Versatile Use
Dovetail and T-notch Press Tool Holder Offers Exceptional Flexibility in Back-and-Forth, Left-Right Movement, and Tool Arrangement
CK32A3-B Multifunctional Lathe with Sub Spindle for Enhanced ProcessingSub Spindle Through Hole Diameter of 20mm
Powerful Sub Spindle Servo Motor at 2kW 2kW
Impressive Max Speed of Sub Spindle at 4000r/min
High-Speed Synchronization of Main and Sub Spindles Effortlessly Solves Secondary Operation Challenges's for Workpiece Processing in One Setup of workpiece processing under one setup
Sub Spindle Tool Base and Parting Tool Base Strategically Added at Spindle Headstock for Enhanced Efficiency
Optimally Engineered BODY MATERIALS
Advanced INNER STRUCTURE Design
Comprehensive CONFIGURATIONS for Superior Performance
CK32A3-S CNC Lathe Configured with Oil Film Bar Feeder Equipped with High-Pressure Oil Pump and Oil Mist Machine Enhancing Performance and Longevity of the Lathe Processed Product Display
Please reach out to us and share your detailed drawings! We are eager to match you with the perfect CNC machine from our cutting-edge selection, tailored to accommodate your specific needs.

Company Profile
Anhui Yuzhou Machine Tool Co.,ltd (BYSK Baoyu CNC) is a pioneering high-tech enterprise that masterfully combines R&D, production, sales, and services of cutting-edge CNC systems, advanced CNC machine tools, automated production lines, industrial robots, and IoT solutions. Originally celebrated as Zhejiang Baoyu CNC Machine Tool Co.,ltd, our expansive manufacturing base spans 35,000 square meters in Taizhou, Zhejiang. Our innovative R&D center, Hangzhou AOGE CNC Technology Co.,ltd, is strategically located in Hangzhou. In the landmark year of 2013, Anhui Yuzhou Machine Tool Co.,ltd was established in Anhui Guangde city, boasting a sprawling 100,000 square meters.Our company stands as a beacon of excellence in manufacturing state-of-the-art CNC SWISS-type/Sliding Headstock Lathes, precision-driven High-Precision Gang-type CNC Lathes, versatile Turning & Milling Compound Centers, robust Vertical CNC Lathe Machines, efficient Horizontal CNC Lathes, durable Flat Bed CNC Machines, dynamic Slant-Bed CNC Lathes, and high-performance Single-Spindle and Automatic Double-Spindle Lathes. Each of our lathes is designed to perfection and integrates absolute value servo motors with advanced bus connectivity. Ourportfolioboasts over 10 groundbreaking invention patents, including utility models and design patents. Ourinnovativesolutions find widespread application across Communication Equipment, Connectors, the cutting-edge 5G sector, Mobile Technology, Household Appliances, Defense, Space Exploration, Medical Devices, the Automotive Industry, Water Heating Solutions, Miniature Shafts, Optical Instruments, Timepieces, Eyewear, and a plethora of hardware accessories. Our cost-effective products redefine automatic batch production in every field.We embrace modern management philosophies, continuously enhancing internal processes. By improving manufacturing techniques and service delivery, we have proudly achieved ISO9001 (2016 Quality Management System), ISO14001 (2016 Environment Management System), the Measurement Management System Certificate, and the esteemed Good Standardization Certificate. Furthermore, our products bear the prestigious CE Certificate and several other authoritative endorsements.As a sovereign production enterprise, we are steadfast in our commitment to augmenting the intrinsic value of each product, passionately living our mission to deliver premium-quality products and unparalleled services, ensuring maximum value creation for our clientele.We steadfastly uphold our business philosophy: Service, Innovation, Specialization, Pragmatism.Ultimately, we aim to achieve our vision: to provide the most cost-effective machine tools across the globe.
Workshop & Warehouse
Exhibitions & Events
Certificates
FAQ
1. Do you accept OEM/ODM?
Reply: Yes. OEM/ODM are welcomed.
2.How many years of production experience does your company have?
R: Over 10 years,We have several professional and experienced technical instructors to guide you for after-sales.
3. Is it possible to deliver quickly (or how many days is the delivery guaranteed, the delivery deadline)?
R: Yes, in common condition , lead time about 30- 45 work days
4.What are the after-sales services?
R: We have professional technical team, can solve your problem 24 hours online.
5. Does this product accept customized services? What specific aspects can be customized? (Such as color, shape, size, etc.;)
R: Yes , customized service is workable , like print your company logo etc.
6. Do you accept small quantity orders (or what is the minimum order quantity, etc.)?
R: Yes, 1 set machine also be available.
7. What are the characteristics of the material of this product?
R: High quality gray cast iron with CE Certificate.
8. What are the unique functions and features of this product?
R: Comparable to European quality Swiss type cnc lathe machine, With high cost-effective, and obtained multiple domestic certifications in China, in addition, As an independent production enterprisewe have ourself technical research team.
9. What are the application areas or uses of this product?
R: Widely appled in Communication Equipments,Connectors, 5G Products, Mobile Phones, Household Applications, War Industry, Spaceflight, Medical Devices, Car, Water Heating, Miniature Shaft, Optical Instrument, Timepiece, Glasses and various hardware accessories.
10. Is it in stock? Can it be wholesaled?
R: Some models have, need confirm
11. Are there any second-hand products for sale?
R: No,sorry
12. What cnc system you use?
R: Our cnc operate system is the BYSK190, this is our company's own brand, and has always been popular in the market because of its easy operation and comprehensive functions, in addition, LNC system also be optional.
13. Are you factory ? and where is your factory located ? How can i have a visit there ?
R: Yes it is. Our company is located at Jianshe Road No.1, Economical District, Guangde,Xuancheng City,Anhui Pronvince. You are warmly welcomed to visit us.
