CE Standard Plastic Waste Recycling Machine Separate Aluminum Copper From Pet Process

Product Description

PET PVC Sorting Waste Plastic Recycling Machine
PET scientific name polyester, is a crystalline thermoplastic resin, pet plastic is mainly used to make films, bottles and so on. About 27 million tons of PET are used worldwide each year, and most of them (about 23 million tons) are used to make bottles. With the increasing consumption of pet bottles, their recycling is becoming increasingly important.
PET bottle processing and cleaning are mainly divided into sorting, crushing, pre-washing, main washing, rinsing, sorting and other steps. The perfect recycling and sorting of plastic bottles is to separate the doped PVC, other polymer bottles and Colored bottles and metal impurities are sorted out. There are still about 0.5% of iron and aluminum flakes in PET bottles that are often processed. If you use a light separator to sort directly, about 5 times the amount of PET bottles will be entrained while the metal is sorted. The best process plan is to enter the eddy current sorter with iron removal function before the light sorting, sort the iron pieces and aluminum pieces in the bottle pieces, and then enter the light sorting machine to sort other sundries. To achieve the best sorting effect.

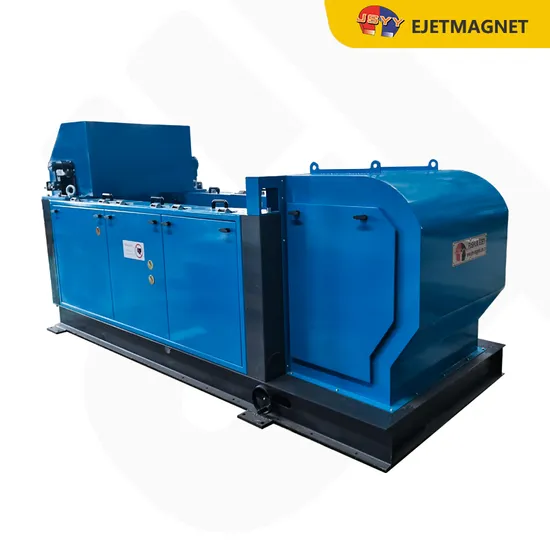

Our eddy current separator has an iron removal efficiency of more than 99%, a single-piece aluminum removal rate of more than 90%, and a bottle fetch rate of less than 0.2%.
The picture below is a physical picture of the selected aluminum sheet. The minimum aluminum sheet size is about 2mm.

Model	ECS100A	ECS120A	ECS140A	ECS150A
Belt width (mm)	100	1200	1400	1500
Processing capacity (t/h)	0.8-1	1.2-1.5	1.5-2.5	2-3
Driving power (kw)	4.0+1.1+0.15*2	5.5+1.5+0.25*2	7.5+1.5+0.25*2	7.5+1.5+0.55*2
Weight (kg)	1800	2200	2500	2500
Dimensions L * W* H (mm)	3670×1650×2035	3670×2000×2035	3670×2300×2035	3670×2300×2035

If the above specifications cannot meet your needs, we can provide customized designs according to user requirements.

More Information About Ejet Magnet
This was in 2004, when our founder, Mr. Wang, first used magnetism knowledge to make research and designed the first set eccentric pole eddy current separator in China. Thus we are fully aware of this responsibility in sorting resources field for nonferrous metal.
In the year 2006, with 25 years of magnetic experience, Ejet Magnet was Established. Keeping improvement for all kinds of magnetic separators, to provide high-quality and high-performance products is our own responsibility, moreover, offering the best solution and the most effective service is one of the higher-standard targets we are pursuing. Ejet has a strict quality control system for raw materials inspection, producing quality inspection, and machine testing.
With 4 members team, in the beginning, Ejet has grown through continuous product innovation and worldwide expansion to over 5000 square feet of manufacturing space and more than 100 employees.
The main products eddy current separators, magnetic separators, sensor sorters and AI technology machines for recycling industries had been exported to more than 50 countries.
Materials testing and machines OEM could be available for better solutions for metal recycling, plastic, glass cullet, construction waste, incineration bottom ash, Aluminum, and E-waste recycling. Also for food, chemical, and lithium battery industries.
Ejet after-sales service promises that within 15 minutes we will make a response to the customer. On the condition that some problems cannot be solved by calls or call videos, engineers are available to serve overseas.
Each Perfect Separation is EJET's commitment to you! We constantly pay attention to your separation result.
Ejet had been focused on magnetic separator design, and manufacturing for more than 17 years with rich experience. Ejet has been dealing with the construction of machines for bulk material handling.
Ejet® is a One-stop Source for Recycling Equipment used in Material Recovery Facilities, conveyors, Screening, and Magnetic Technology for all kinds of industry fields: Automotive Shredder Residue (ASR). Municipal Solid Waste. Incineration Bottom Ash. Mining Magnet.
17 YEARS FOCUS ON MAGNETIC SEPARATOR
Ejet had been in this field for 17 years since 2006. We are the leading manufacturer in Asia. with rich experience. We had very good cooperation with famous universities, such as Shanghai Jiaotong University, Shanghai second technology University, Northeast University and scientific establishments.
20% ENGINEERS IN EJET OBTAIN MORE AND MORE NATIONAL PATENT
Engineers are accounted 20% of the total people in Ejet, the stable team keeps developing and perfect quality.
30 YEARS EXPERIENCE OF IN MACHINE DESIGNING
Some engineers had more than 30 years experience with magnetic separators and eddy current separators, we were the leading engineer for eddy current separators in China. Products are widely used in the recycling and mining industries.
3000 SETS PRODUCTS HAD BEEN MANUFACTURED
The products are widely used in mining, plastic recycling, metal recycling and E-waste recycling. And had been exported to more than 40 countries.
24 HOURS AFTER-SALES SERVICE
The contract is not the beginning of the cooperation, Ejet worries about what customers worry about. Customer service is 24 hours online. And we had a spare parts store for each customer.

1. Q: What kind of metal is the eddy current separator applied to?
A: Eddy Current Separator suitable for aluminum, copper, and brass.etc non-ferrous scraps separation from non-metal materials of size >3mm.

2. Q: Which type should I use for my recycling plant?
A: In order to recommend the most suitable model, please let us know the material`s situation .including the composition, size, handling capacity and expected separation result.

3. Q. What is the MOQ of your machine?
A: Our MOQ is 1 set

4. Q: What are the pros and cons of a concentric pole rotor compared with and eccentric rotor design?
A: The eccentric type is much more suitable for the complicated material situation, The eccentric rotor design reduces long-term wear due to heated ferrous build up, and can effectively avoid the device damage caused by impurity ferrous metal.
Exclusive the ferrous influence, the concentric type has a little bit better separation effect but must make sure no ferrous exist.

5. Q. How long is the machine warranty period?
A: the product warranty period is 12 months
For details, or for longer the machine Warranty Period.
