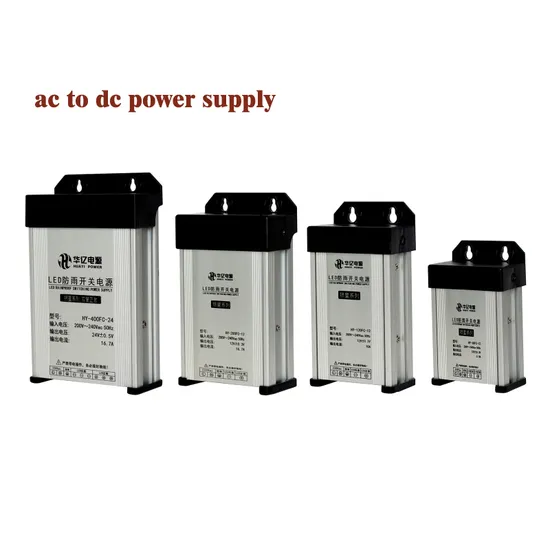

Single Output LED Driver 30V 400W Switching Power Supply for LED Strip Light and Security Camera

Product Description

Product Description
Single Output LED Driver 30V 400W Switching Power Supply for LED Strip Light and Security Camera Feature:
High Efficiency and Reliability: Smart device surge protection for Short-circuit Protection, Overload Protection, Over Voltage, Over Temperature Protection.Low Temperature Rise
Safety Performance: This Switching Power Supply(SMPS) operates from AC176~264V and converts to DC 12V. Built in fuse providing a voltage regulated single output which can be adjusted with an on board potentiometer. With short circuit, overload, over voltage, protection function to protect your device.
Voltage consistency: There is no voltage fluctuations to speak of at power on, during transmit, receive, or at power off. Built-in EMI filter, low output ripple, noise, Rugged heavy duty enclosure, 100% Full load burn-in Tested. Parallel/Redundancy Operation is possible.
Safety Compliance: FCC / CE
Widely used in: Wide input voltage range, steady and precise output voltage.Great power transformer for Led Lighting and CCTV Camera Security System, LED display screen, advertising sign lightbox, advertising logo,communications & home appliance electronic equipment etc.It can ensure safe and stable work in rain and snow weather.
Package included:
1 x Power Supply (Power cord is NOT included.)
Please note: The power cord is not included in the package of this product. All of our products are covered by a one-year warranty.

Model NO.	HY-400FB-12V	HY-400FB-24V	HY-350FB-5V	HY-400FB-30V	HY-400FB-36V
Output Power	400W	400W	350W	400W	400W
Output Current	33.3A	16.6A	70A	13.3A	11.2A
Input Voltage	12V	24V	5V	30V	36V
Working temperature	-20ºC-,50ºC	-20ºC-,50ºC	-20ºC-,50ºC	-20ºC-,50ºC	-20ºC-,50ºC
Storage temperature	-40ºC.85ºC	-40ºC.85ºC	-40ºC.85ºC	-40ºC.85ºC	-40ºC.85ºC
Environmental humidity	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH	10%~95%RH
Size	193*117*50mm/435g	193*117*50mm/470g	193*117*50mm/448g	193*117*50mm/435g	193*117*50mm/435g

Product Parameters

Input	Voltage Range	176~264Vac200-380vdc
	Frequency Range	47~63HZ
	Efficiency	90%
	AC Current	1.94A@220Vac
	Surge Current	50A G220Vac Cold air dynamics
	Leakage Current	<0.75mA@220Vac
Protections	Overload	110%~150% of rated output power, protection mode; Hiccup mode, can be visually restored after removing abnormal conditions
	Over voltage	110%~135% of rated output power, Protection mode; Hiccup mode, Can be visually restored after removing abnormal conditions
	Short circuit	Protection mode; Hiccup mode, can be visually restored after removing abnormal conditions,Can be short circuited for a long time
Environment	operation temperature	-20ºC-,50ºC
	Operating Humidity	20%~90%RH, No condensation
	Storage temperature ,humidity	-40ºC.85ºC,10%~95%RH, No condensation
	Seismic Resistance	100~500Hz,3G 10mins/cycle,60 mins each for the X Y and Z axes
Safety	Safety Standard,Protection Level	Complies with CE/FCC
	Voltage Resistance	In-Out : 2KVac;input shell: 0.5KVac
	Insulation Resistance	In-Out,input shell,output shell :100M Ohms/500Vdc/25ºC/70%RH

Quality: New Metal Materials, Compression, Wear-resisting Reinforcement Enclosure Structure,Used more safely and conveniently than other thanks to its sealed design
Safety: Every Channel is Protected by using separate fused to ensure short-circuits and surges do not affect other connected devices.
Output: DC Voltage Can be Adjusted 10%, Good Load Capacity, Input and Output Over-voltage Protection
Multi Use: can be used to power most any DC 5V/12V/24V30V/36V devices, including CCTV security equipment, Mics, and Lighting equipment. . Led power supply converts AC 176~264V or DC 200V ~ 380V to DC 5V 12V 24V 30V 36V 350W 400W
Application: This ac to dc converter Widely used in most 5V12V/24V/30V/36V device , such as , LED display, LED Strip Light, CCTV Camera System , 3D Printer, LED display screen, advertising sign lightbox, advertising logoetc.
Our Advantages 1. Adopt high quality components
2. Powerful, stable and reliable
3. Built-in EMI filter circuit
4. Dual-tube forward program
5. Constant voltage and constant current output
6. Intelligent overload prevention
7. Semi-potted process
8. Stronger ability to adapt to the environment
9. Over-voltage, short-circuit, overload and temperature protection function
If there have any model meets your requirement, please contact us get more detail

Item	Output					Item size	Weight	PC/CTNS	Input AC
	5V	12V	24V	30V	36V	(MM)	(KG)	(PCS)	(V)
HY-400FB		33.3A	16.6A	13.3A	11.2A	193*117*50	0.47	50	176~264V
HY-350FB	70A					193*117*50	0.49	50	176~264V
HY-400FA		33.3A	16.6A			207*118*50	0.62	40	176~264V
HY-400FAC		33.3A	16.7A			207*118*50	0.62	40	176~264V
HY-400FA-II		33.3A	24V			179*109*51	0.54	40	176~264V
HY-400GB		33A	16.6A			204*117*50	0.47	40	176~264V
HY-600FA		50A	25A			217*118*50	0.85	30	176~264V
HY-400FC		26.6A	13.5A			191*117*50	0.42	50	176~264V
HY-400FEC		33.3A				191*117*50	0.42	50	176~264V
HY-350FC	70A					191*117*50	0.42	50	176~264V
HY-400FC-II		33.3A				181*117*50	0.39	60	176~264V
HY-200FC		16.7A				166*94*50	0.32	60	176~264V
HY-150FC		12A				185*74*42	0.29	60	176~264V
HY-120FC		10A				145*74*42	0.23	80	176~264V
HY-60FC		5A				120*74*42	0.18	80	176~264V
HY-300TF		25A				191*117*50	0.42	60	176~264V
HY-300TBS		25A				191*117*50	0.42	60	176~264V
HY-300TBD		25A				166*94*50	0.32	60	176~264V

Cautions:
1. The actual power is 80% of the rated power of the power supply (example: If the power of your device is 400watts, you need to buy a power supply of 500 watts or more).
2. In order to avoid interference from filtering, the power supply and the equipment need to maintain a distance of more than 3m.
3. Please do not use any equipment overload to avoid damage to the equipment.
4. Need to consider the operating environment temperature of the switching power supply, and the presence of additional auxiliary cooling equipment, in too high a ring temperature switching power supply need to reduce the amount of output. (If the power of your equipment is 400 watts, you need to buy a power supply of 500 watts or more). Indoor outdoor use, the power supply is waterproof Power supply built-in intelligent cooling fan, working with slight sound, this is a normal phenomenon.
Company Profile
ABOUT US Shenzhen Huayi Power, 200 staff, Shenzhen headquater and Hunan factory, have specialized in LED power supply and dirivers since 2021. Our products cover Rainproof / outdoor / indoor / engineering power supply and drivers, power adapter, electronic components, etc. Adhere to independent innovation, stable quality and low cost, our company has obtained a fast growth. Good product, professional solution and efficient service, are making us to be the trusted partners with cutomers coming from Ameica, Europe, Japan, domestic market, etc.
Our company has a strong and experienced R&D team that can design products according to customer requirements and meet the needs of different customers with the best solutions. We adhere to the business philosophy of ""people-oriented, creating value, quality first, and improving innovation"". Our products are reasonable in price, stable in quality, and have a long lifespan.We warmly welcome new and old friends to cooperate with us ", Led Power Supply made in China!
Certifications Our Certifications
Packaging & Shipping 50box/CTNS
We use standard shipping cardboard boxes to package your goods and take absolute safety measures. If you have packaging requirements, please let us know!
FAQ Q: Do you support sample service?
A: We support free sample services, but we are not responsible for shipping costs
Q: What is your MOQ of switch power supply?
A: Our MOQ is 1000PCS.
Q: Are you a factory or trading company?
A: We are factory
Q: How many voltage you can supply?
A: 5V, 12V, 24V, 30V, 36V (Depend on items )
Q8:How many years warranty of your switching power supply? A8: We support 1 year warranty! Q: How to order? A: Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less. Secondly, during the guarantee period,we will send new product with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
