1000kg Rated Scrap Metal Lifting Electromagnet with Bridge Control

1000kg Rated Scrap Metal Lifting Electromagnet with Bridge Control

US$1,000.00-10,000.00 1 Set (MOQ)

Basic Info.

Condition
New
Rated Lifting Weight
1000kg or Customized
Control System
Remote Controller or Bridge Control
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Product Name
500kg Scrap Metal Lifting Electromagnet
Certificate
ISO9001:2008
Dimension(L*W*H)
Customised
Material
AlNiCo+NdFeB Strong Magnetic Material
Working Temperature
Below 100 Degree
Voltage
AC 380V, 50Hz
Features
Electro Permanent Magnetic Lifting Magnet
Magnet Shape
Square or Customized Shape
Trademark
QHMAG
Origin
Hunan, China
HS Code
8505901000
Production Capacity
100 Set/Sets Per Month

Product Description

Introducing the powerful 500kg Scrap Metal Lifting Electromagnet, engineered for maximum efficiency and reliability.
√ Effortlessly lift single or multiple steel bars/rebars simultaneously, maximizing productivity and throughput.
√ Capably supports lifting even when the steel exhibits some disturbance or deformation, ensuring uninterrupted operations.
√ With a large magnetic permeability depth, experience stable and secure adsorption like never before.
√ The innovative motor adjusts the beam length without interference, ensuring seamless operation with non-steel objects.
√ Boasting our proprietary patent certificate, Patent Number: ZL201020522632.1, a testament to our commitment to innovation.
Product Description
What is electro permanent magnetic technology?
Electro permanent magnet technology ingeniously harnesses electricity to govern the magnetic field of permanent magnet materials. Exhibiting either magnetic force (during magnetized state) or non-magnetic force (in demagnetized state), this cutting-edge technology independently manages the attraction or release of materials.
In the magnetized state, an electromagnetic coil with instantaneous excitation current adeptly switches the magnetic field of reversible materials, enveloping the magnetic poles with a powerful adsorption force. This closed-loop magnetic field guarantees zero magnetic loss, operating without heat, noise, or energy consumption (as illustrated in Figure 1.1).
During the demagnetized state, a subsequent instantaneous excitation current in the electromagnetic coil alters the reversible magnetic field, confining the field within the permanent magnet, allowing material release as seen in Figure 1.2.
About Electro Permanent Magnet
The Electro Permanent Lifting Magnet system exemplifies safety, unaffected by outages or power short circuits. With no reliance on UPS battery systems, its formidable, enduring suction derives from permanent magnetic materials, ensuring the secure handling of adsorbed materials, which can only be released post-demagnetization by the operator. It guarantees unparalleled security for users.
Electro permanent magnet advantages:
1. Economical, Energy-saving, Environmentally-friendly
The Electro Permanent Magnet System utilizes energy solely during magnetic charging and demagnetization, eliminating the need for power during operation. With no temperature increase, it conserves over 95% of electricity compared to electromagnets, significantly reducing operational costs.
Both the lifting permanent magnet and control system are lightweight, reducing the load on lifting equipment and enhancing lifting capacity.
2. High Security
Drawing magnetism from two diverse permanent magnetic materials, the Electro Permanent Lifting Magnet provides maximum magnetic force up to 16kgf/cm². Free from power dependency during operation, it averts any risk of magnetic power loss or material fall due to sudden power failures or cable damage. Its magnetic potency remains unaffected over time, ensuring robust security.
3. Easy to Use
The straightforward electronic control operation includes just charge and demagnetization buttons, facilitating ease of use. Magnetization and demagnetization occur within 0.1-1s, enhancing operational efficiency. With no internal wearing parts or specific maintenance requirements, it ensures durability and practicality.
After demagnetization, the remaining surface magnetic force is negligible, preventing small magnetic particles from adhering to the magnetic pole surface, ensuring a scratch-free, residue-free adsorption.
4. Unique, Flexible Product Design
Experience the unparalleled engineering of our lifting permanent magnet, featuring a unique modular design and dual magnetic source technology. Our product stands out with a one-of-a-kind manufacturing process and an exclusive internal structure, ensuring optimal performance and reliability.
5. Flawless Functionality
Our Electro Permanent Lifting Magnet system offers unmatched safety and reliability. Immune to power failures and devoid of the need for a UPS battery auxiliary system, it harnesses the high energy of permanent magnetic materials for enduring attraction. This ensures the utmost safety for the materials being handled, with demagnetization possible only when safely landed. It is the pinnacle of security for end users.
Electro Permanent Lifting Magnet VS Electromagnet
SEQ Compare Content Electro Permanent Lifting Magnet Electromagnet
1 Magnetic Permanent magnet Material: Reversible magnet steel, Electricity: Magneticfield generated by Currentthrough the coil
source fixed magnet
2 Principle The magnetic field is turned on or off by an Power on generated magnetic field, power off no magnetic field
mechanism instantaneous current
3 Security All steel surface, oil&water-proof, no aging issue Epoxy resin sealed, may occur aging and shedding issue in5
years later, need repair.
4 Reliability The suction is constant and does not attenuate over time Suction is influenced by the heat caused by current, the coil is
easy aging if use long time.
5 Durability Permanent magnet no magnetic attenuation, magnetic
and module is maintenance-free. Internal coil aging fast, the UPS battery need to be replaced
maintenance regularly, need to preparethe accessories.
6 Operating Only in the moment of magnetization and Need long-term electricity power during working, big power
costs demagnetization need electricity, no need power consumption, commonly known

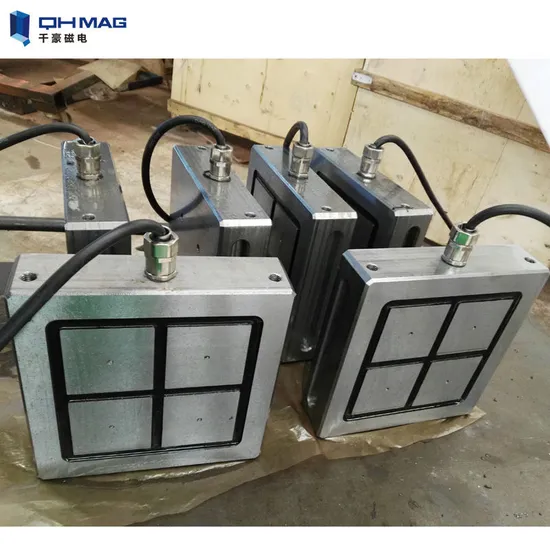

Product Images:
Packaging & Shipping Details
Comprehensive Electro Permanent Magnet System (Standard)
1. Electro Permanent Magnet
The core element of magnetic force, designed for direct contact and secure adsorption with the work piece.
2. Control System (inclusive of sound and visual indicator system)
Manages magnetization/demagnetization while efficiently handling all signal collection and processing.
2.1. Long-distance Controller (optional)
Compact mini control cabinet perfect for Crane Cab installations or other limited spaces.
2.2. Remote Controller (optional)
Compact mini control cabinet designed for Crane Cab or other confined locations.
3. Cable Retracting Device
Facilitates smooth pull in and out function to manage cable release and collection efficiently.
4. Beam
Designed to collect and transmit the tension of the permanent magnet effectively.
