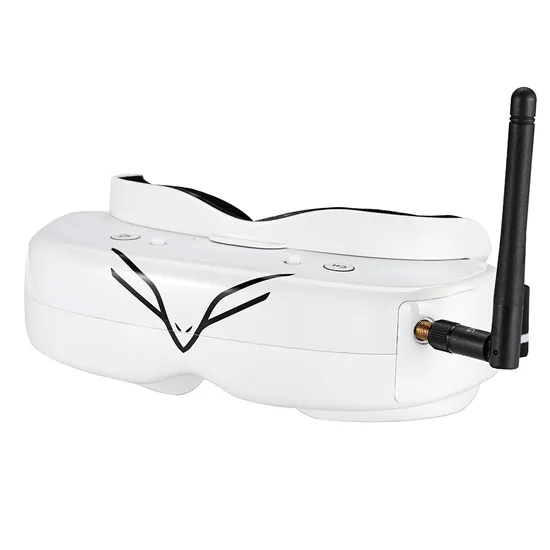

5.8g Flysight HDMI Input Fpv RC Video Goggles

Product Description

Flysight Goggles Falcon FG02 RC Video Goggles with DVR for Racing Drone Airplane Flying Wing
These are the new Falcon FG02 FPV goggles updated version of FG01 from FlySight that mount a serious challenge to the established excellence of Aomway and FatShark! These are a pair of small, compact FPV RC goggles that have an in-built DVR function that auto-save if you lose power. The Falcon 5.8G goggles also have a modular design, allowing users to customise their receiver modules. The Falcon goggles are fully compatible with FatShark, Airwave, FuriousFPV and other receiver modules. These goggles also features useful shortcut keys so that you can easily change the contrast, brightness and display type at a touch of a button.
Note: Batteries/Receiver are not included
Flysight Falon 5.8G Video Goggles Wireless is also compatible with any FatShark-style battery such as the 1000mAh 2S LiPo Battery; As for the receiver module on this fpv goggles diversity module, you can use such receivers as the FuriousFPV True-D receiver and the Eachine Pro58 receiver etc. Key Features:
Fantastic quality FPV goggles for en extremely competitive value Built-in DVR Modular design allowing for FatShark, Airwave, FuriousFPV and other receiver modules Switch between 4:3 and 16:9 WVGA display One button operation Difference between Flysight FG01 and FG02 FPV Goggles with DVR HDMI In :
FG01 is all-in-one IPD adjustment by gear;FG02 is independent IPD adjustment FPV Goggles for RC Drone Racing 40CH 5.8 GHz Falcon FG02 with DVR and HDMI In Custom Receive Module One of the features that set these goggles apart is the ability to customize them using 3rd party receiver modules such as the Fatshark Nextwave, Airwave, Furious, and La Forge to get the type of signal they want. The versatile fit and IPD adjustments, excellent visual quality, and modular ease of use. With these premium features, pilots can enjoy a variety of enhancements. It can handle both digital and analog inputs with ease, making it a flexible and powerful FPV goggles for both hobby FPV drones like phantom 3/4 and racing drones.
Specification:
FOV: 33degrees(Diagonal) Resolution: 0.32 inch LCD,854×480(WVGA) 350cd/square meter Interpupillary distance(IPD): 59-69mm(adjustable) Screen Color: Full color LCD binocular display, with LED backlight Function Controls: Channel selection/ Volume/ Mode selection/16:9 or 4:3 switch/ Brightness/contrast/DVR/ Fan Control HDMI IN(C Type): Support HDMI 1.3 Digital Input, Support HDMI Audio in RF: RF module bay(not included) DC In:2S-4S Supply,consumption <300mA @7.4V (HDMI 2D,RX off) DVR Working way: Auto work after goggles powered on Memory: Support TF card to 64Gb, 6Mbps (MJPG compression,30 fps,AVI) Video input: Support CVBS,PAL/NTSC continous scan auto detect/mode change; Auto save if power removed,support forward/backward/format
Modular FPV goggles with built in integrated DVR Flysight Falcon goggles brings affordable digital video and a wide feature set to FPV racing. This FPV goggles features a modular design, allowing pilots to customize receiver modules to stay on the cutting edge. Record FPV footage with the included DVR, and use the Falcon's modular bays for a wide range of analog video receivers.
Supporting HDMI-in at 720p and with a switch between 4:3 and 16:9 WVGA image, the Falcon can handle both digital and analog inputs with ease, making it a flexible and powerful goggles for both casual and professional pilots.
Integrated on-Board Analog DVR(not HDMI recording)
Integrated DVR records your analog footage and has playback function that may assist in lost model recovery.Also there is fast forward/backward speed,switch among 1X 2X 4X 8X.DVR recording icon showed on screen by a small dot only,which saves the screen space for more useful data to pilots.If the power is disconnected or the battery runs out, the DVR will auto-save any recorded video, preventing a corrupted card or loss of data.
Attention:TF Card Must be formatted before use to ensure the stable recognizing and recording.when insert and take out the TF Card,must turn off the power to avoid damage on the CARD and Goggles.
Flysight FPV RC Racing Video Goggles Falcon F02
Perfect Match for FPV Racing and HDMI version of DJI phantoms and other devices Simple Design with Creative abstract Falcon pattern
AV In and HDMI In
Handle both digital and analog with ease.
A switch between 4:3 and 16:9 WVGA display(33°FOV diagonal).
Support HDMI-in at 720P, 100% compatible with Phantom3/4 and Inspire.
Useful Shortcut Keys
One button Operation on contrast, brightness and switch between 4:3 and 16:9 WVGA display.
Working Input voltage
2S-4SLiPo battery more options of input adapters, meanwhile with low battery Alarming and battery volume display during flight.
Built in Fan
Built in fan keep good cooling for the goggles and is easily operated by power on/off button. No more fogging up
TV System Option
NTSC/PAL auto switching.
18650 Battery Case
With 18650 battery setup can get 150minute working time.
