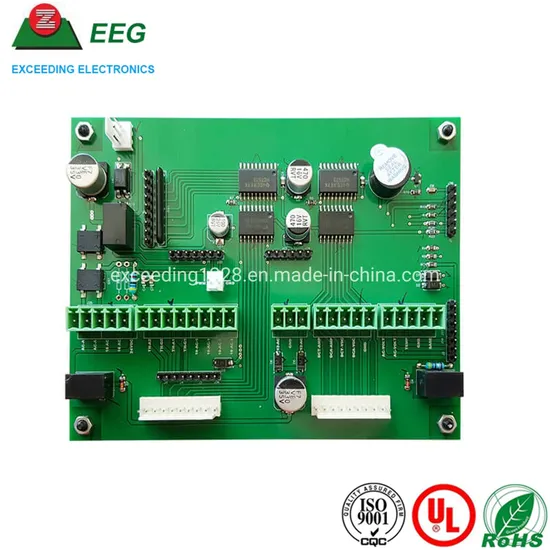

Multi Layer PCB Board Assembly with High Quality UL PCBA PCB Assembly Manufacturer

Product Description

Founded in 2001,Exceeding Electronics Group Ltd,provides world-class customer support services. We are an industry lead in automotive, telecommunications, computer, industrial control, medical and power and energy PCB.
Buyers from international markets choose to source from us because of our high-production capacity and product development capabilities.
Our extensive list of products and features includes:

.1 to 36-layer rigid and 2-to 14-layer flex and rigid flex PCBs .Blind/buried vias with sequential lamination .HDI build up micro via technology with solid copper filled vias .Via in pad technology with conductive and non-conductive filled vias .Heavy-copper up to 12oz.Board thickness up to 6.5mm.Board size up to 1010X610mm. .Special materials and hybrid construction

We are devoted to product quality and manufacturing efficiency,which is why we offer highly reliable solutions to customers worldwide. We manufacture PCBs to the strictest UL and IPC standards,utilizing state-of-the-art production equipment such as laser drills,LDIs,VCPs and more.Visit our online showroom or contact us today for more details.

Specification

Term	Detailed Specification of PCBA Board Manufacturing
Layer	1-36 layer
Material	FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, FR-1, FR-2, Aluminum,Rogers,Taconic,Isola..etc
Board thickness	0.4mm-4mm
Max.finished board side	1900*600mm
Min.drilled hole size	0.1mm
Min.line width	2.95mil
Min.line spacing	2.95mil
Surface finish/treatment	HASL/HASL lead free,Chemical tin/Gold,Immersion gold/Silver,OSP,Gold Plating,Gold finger.
Copper thickness	0.5-100oz
Solder mask color	green/black/white/red/blue/yellow/purple
Inner packing	Vacuum packing,Plastic bag
Outer packing	Standard carton packing
Hole tolerance	PTH:±0.075,NTPH:±0.05
Certificate	UL,ISO9001,ISO14001,ROHS,CQC,TS16949
Profiling Punching	Routing,V-CUT, Beveling
Assembly Service	Providing OEM service to all sorts of printed circuit board assembly

Technical Requirement	Professional Surface-mounting and Through-hole soldering Technology
	Various sizes like 1206,0805,0603 components SMT technology
	ICT(In Circuit Test),FCT(Functional Circuit Test) technology
	PCBA Assembly With CE,FCC,Rohs Approval
	Nitrogen gas reflow soldering technology for SMT
	High Standard SMT&Solder Assembly Line
	High density interconnected board placement technology capacity
Quote&Production Requirement	Gerber File or PCBA File for Bare PCBA Board Fabrication
	Bom(Bill of Material) for Assembly,PNP(Pick and Place file) and Components Position also needed in assembly
	To reduce the quote time, please provide us the full part number for each components, Quantity per board also the quantity for orders.
	Testing Guide & Function Testing method to ensure the quality to reach nearly 0% scrap rate
PCB Assembly OEM Service
Electronic Components Material Purchasing
Bare PCB Fabrication
Cable, Wire-harness Assembly, Sheet Metal, Electrical Cabinet Assembly Service
PCB Assembly Service: SMT, BGA, DIP
PCBA test: AOI, In-Circuit Test (ICT), Functional Test (FCT)
Conformal Coating Service
Prototyping and Mass Production

PCBA ODM service

PCB Layout, PCBA Design According To Your Idea

PCBA Copy/Clone

Digital Circuit Design / Analog Circuit Design/ lRF Design /Embedded Software Design

Firmware and Microcode Programming Windows Application (GUI) Programming/Windows Device Driver (WDM) Programming

Embedded User Interface Design / lSystem Hardware Design

PRODUCT SHOW

FACTORY AND EQUIPMENT
PACKAGE AND DELIVERY

What we need:

* Gerber files of the bare PCB

* Bill of materials include: Manufacturer's part number, type of part, type of packaging,component locations listed by reference designators and quantity

* Dimensional specifications for non-standard components

* Assembly drawing, including any change notice

* Pick and Place file

* Final test procedures (if customer need us test)

FAQ Q:What files do you use in bare pcb fabrication?
A:Gerber RS-274X,274D,Eagle and AutoCAD's DXF,DWG,genesis2000...etc.
Q:What format of BOM List you prefer?
A:We prefer Excel format which include: Components Part No.,Manufacturer,Quantity,Value info...etc.
Q:How can i know the processing about my PCBA order?
A:Each Customer will have a sale to serve you. Our working hours: 9:00AM-18:30 PM from Monday to Friday,Saturday from 9AM to 12:30 PM. We will reply your email in 2hours in our working time. And you also can contact with our sales by phone if anything urgent.
Q:How long will we get the quotation after providing pcb gerber file,completed bom list,part datasheet and PNP file?
A: The quotation will be sent in less than 2 work days, for some special components which can't find here,you can suggest us the replacement PN or you can provide to us.
Q:If all PCBAs will be tested before delivery if we provide the function testing method?
A:Yes, we ensure that each piece of PCBA will be tested before shipment, we ensure the goods we sent out are with approved quality.
