Advanced Multi-Function Fiber Laser Machine for Welding, Cutting, and Cleaning

Product Description

Three Functions Laser Welding/ Cutting/ Cleaning Derusting Machine Metal Fiber Laser Machine
The laser welding machine uses a laser to generate a pulsed laser with a wavelength of 1064nm, which is radiated to the surface of the workpiece after beam expansion, reflection and focusing. The surface heat is diffused to the inside through heat conduction. The width, energy, peak power, repetition frequency and other parameters of the laser pulse are precisely controlled by digitalization to melt the workpiece to form a specific molten pool, thereby realizing laser welding of the workpiece and completing precision welding that cannot be achieved by conventional processes.
Detailed Photos

Product Parameters

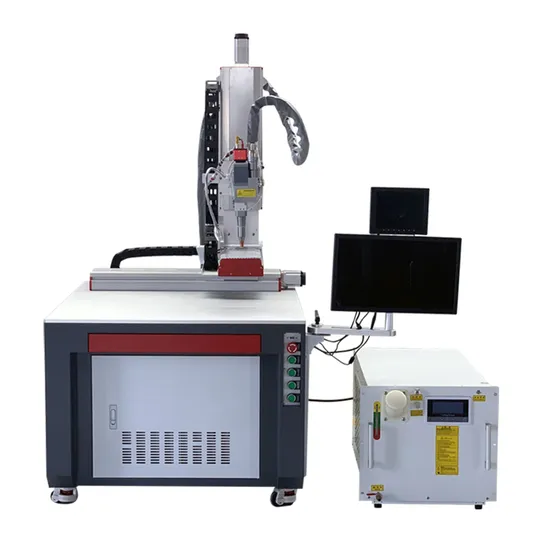

Model	OM-W2000 2kw 4 axis laser welding machine
Laser source	2kw (1kw, 1.5kw, 3kw optional)
Observation system	CCD microscope vision system
Working area	500*300*300mm (other optional) X, Y, Z, R-360
Rotary	Diameter 100mm (professional for welding)
I/O interface	Input/output/I/O RS232
Laser wavelength	1080±10%
Laser frequency	0-100HZ
Workbench load-bearing	200kg
Spot size	0.2-3.0mm
Lift path	150mm
Module life	100000hrs
Cooling method	Hanli Water Cooling
Laser Energy Stability	<2%
Air humidity	10-90%
Power supply	220V/380V 50/60HZ

Our Advantages
The double wobble head of automatic fiber laser welding machine can achieve the following
welding effects:
1. Wider welding seam (expand the tolerance range of machinable parts);
2. Very high processing repeatability/process stability;
3. Better welding seam formability;
4. Compared with traditional welding technology, the post-processing is simpler, and the surface of the
welded workpiece is smoother.
Application
Auto parts: hydraulic ejectors, filters, sensors, solenoid valves, etc.
Lithium-ion batteries: extreme materials, cylindrical caps, etc.
Mobile phone industry: mobile phone back panels, studs, card slots, etc.
Electronic industry: sensors, motor rotors, capacitors, relays, etc.
Kitchen and bathroom appliances: kettles, faucets, hooks, sinks, range hoods, etc.
